4-in-1 Sheet metal bending machine with rolling press cutting function 1040mm

Manufacturer code: 10062234

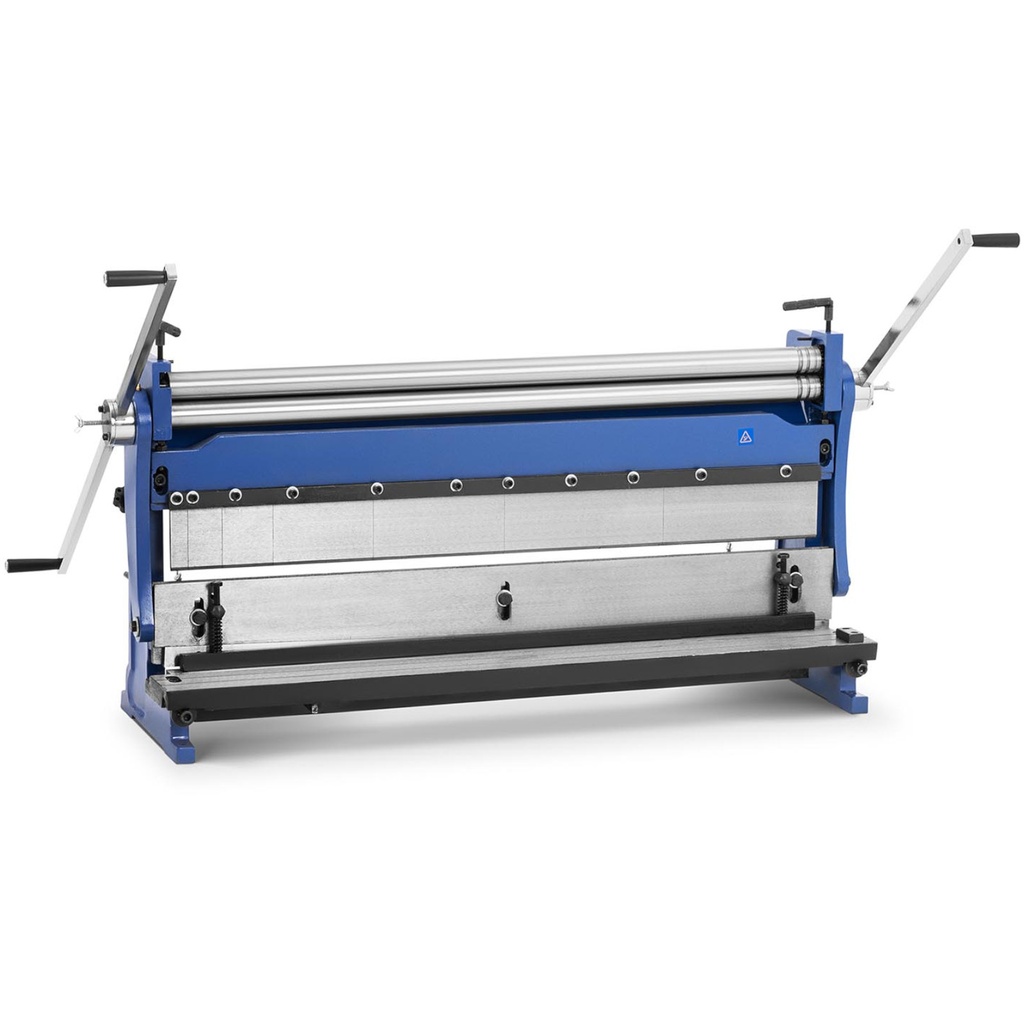

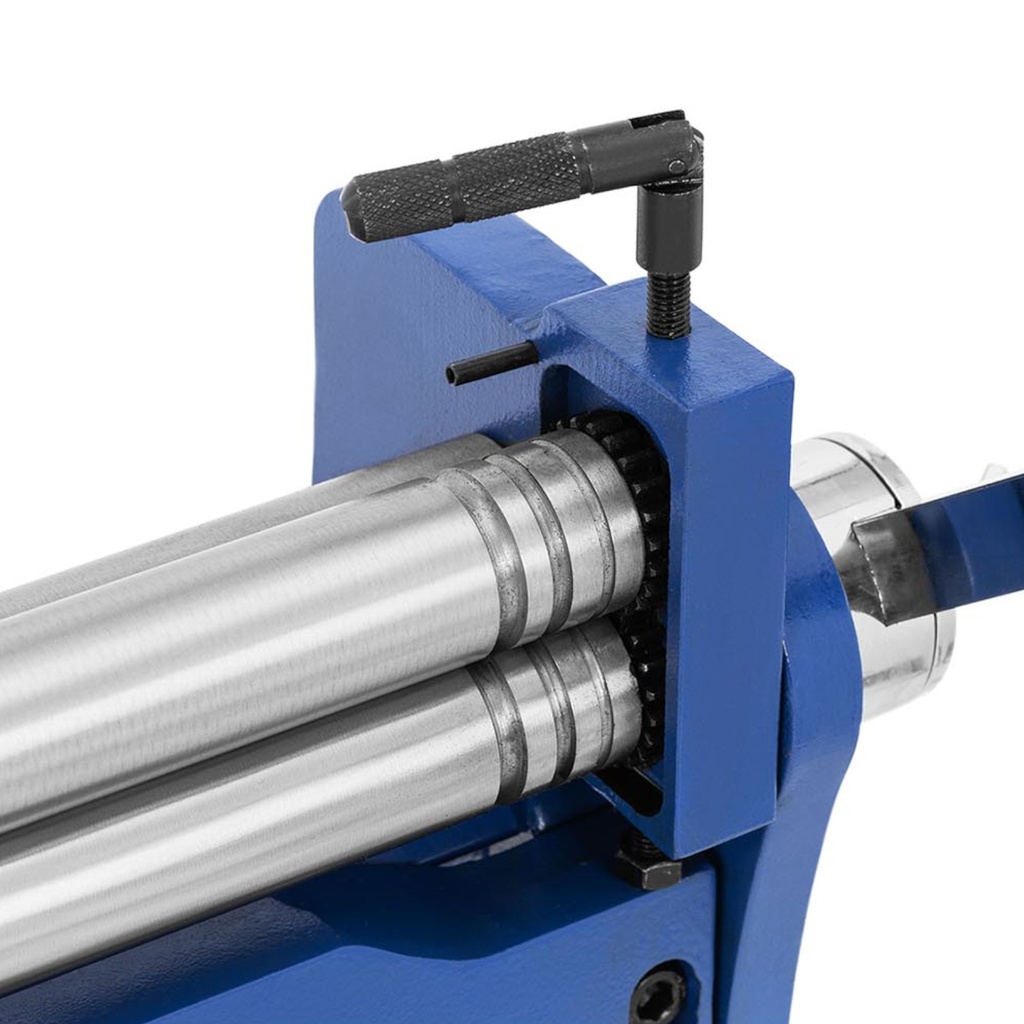

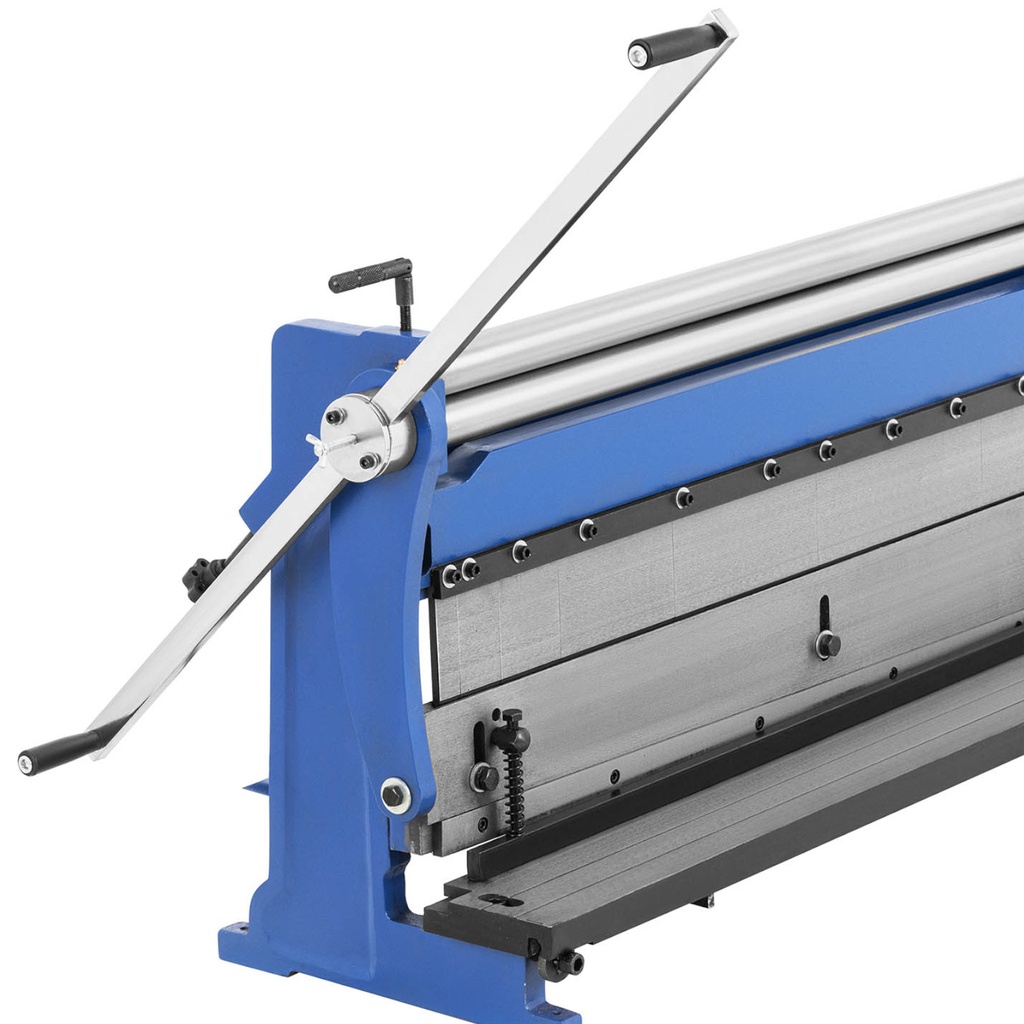

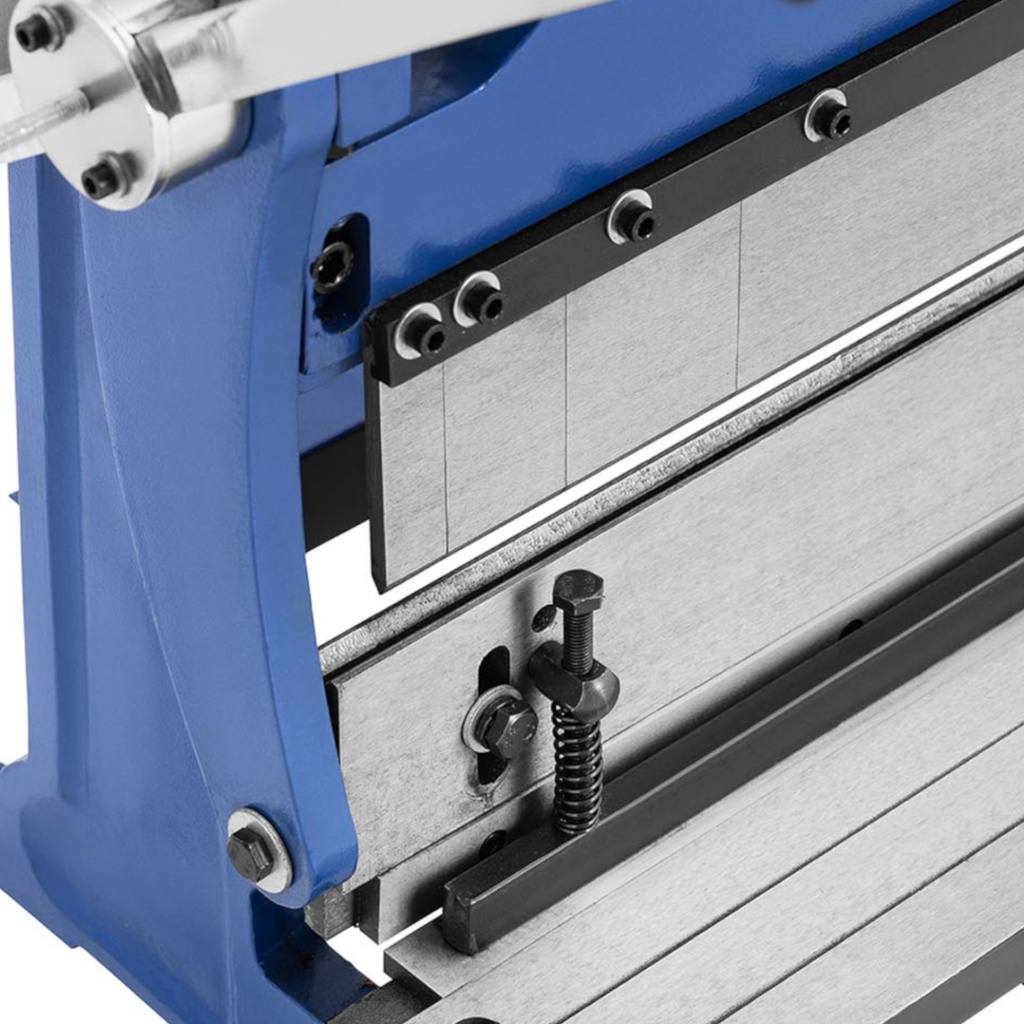

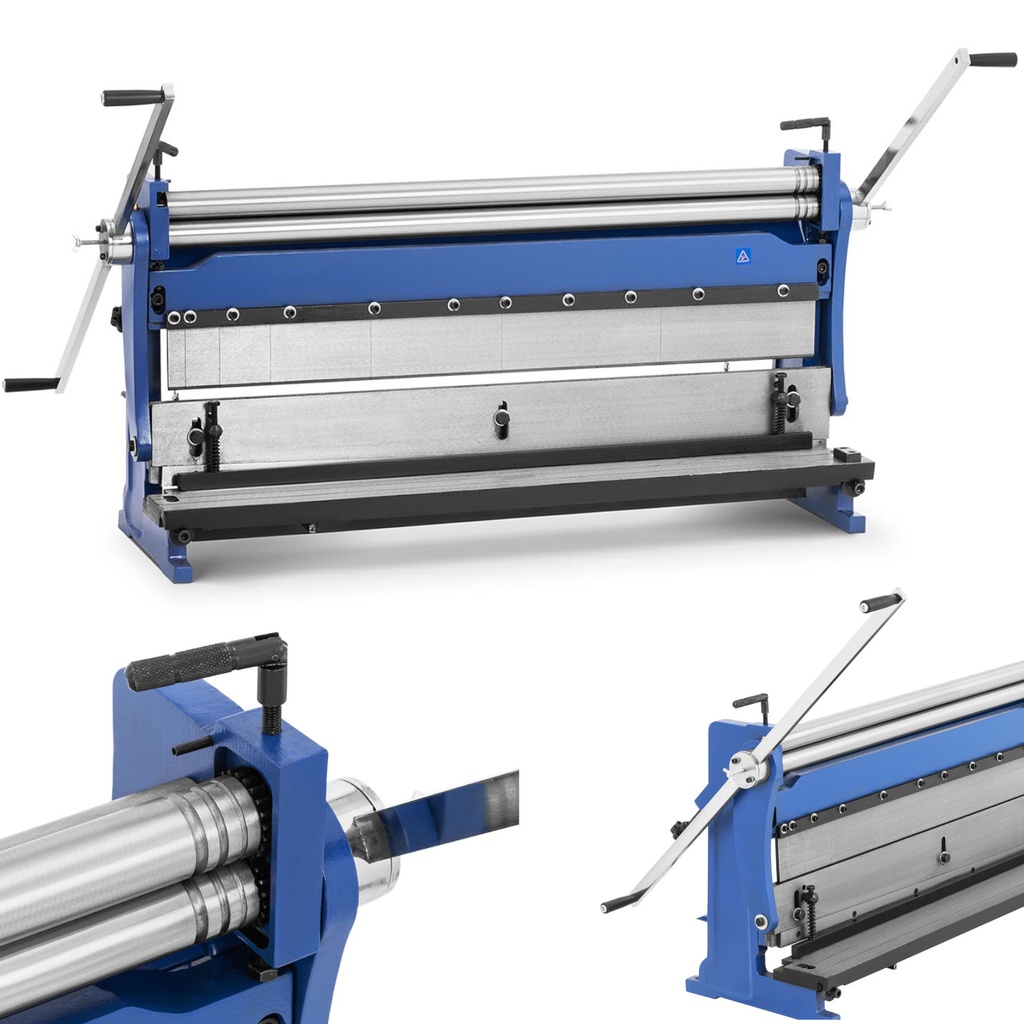

The manual sheet metal bending machine from MSW combines three stages of work in one device: cutting, bending and pressing sheet metal and metals of all kinds, making it suitable for many applications. The bender is suitable for industrial production, for example, in factories and workshops. The sheet metal rolling machine has a 1040 mm long blade made of 60Si2Mn spring steel. The material is particularly strong, has durability and is easy to maintain. With the equipment you can cut sheet metal up to 1040 mm wide and 1 mm thick. With the help of rollers, you can easily bend the sheet metal to the desired shape. The required angle is set in just a few simple steps, up to a maximum of 90°. The dimensions of the bender allow you to easily process sheet metal with a maximum width of 1016 mm. The sheet metal bender is operated by 2 side cranks. Thanks to excellent power transmission, little force is required for bending, rolling and cutting. As a result, even inexperienced people can operate the machine comfortably. The press brake is made of solid and durable materials such as cast iron and steel. With proper maintenance and regular lubrication with machine oil, the equipment will last for years. The weight of the bending machine ensures its stability. To completely avoid tilting or wobbling, the unit should be fixed to the floor or workbench.

Product Features:

• - For machining metal parts up to 1 mm thick,
• - Bending angle adjustable up to 90°,
• - Allows rolling, pressing and cutting of sheet metal on one machine,
• - Robust and durable steel and cast iron construction,
• - Easy to mount on the floor or workbench thanks to pre-drilled holes.

• - Part number - 10062234
• - Article condition - New
• - Model - MSW-PBR-1016 COMBI
• - Material - Cast iron, steel
• - Bending angle [°] - 90
• - Blade material - 60Si2Mn
• - Blade length [mm] - 1040
• - Color - Blue, Silver
• - Maximum thickness of the bent material [mm] - 1
• - Body material - Cast iron / steel (A3)
• - Handle length [cm] - 101.6
• - Maximum thickness of rolled material [mm] - 1
• - Maximum thickness of sheared material [mm] - 1
• - Diameter of the pole [mm] - 40
• - Length of press edge [mm] - 1016
• - Dimensions (DxSxW) - 134 x 67 x 95 cm
• - Weight - 172 kg
• - Shipping dimensions (DxSxW) - 126 x 43 x 72 cm
• - Shipping weight - 196 kg

• - Sheet metal bender
