Automotive paint thickness tester meter range 0 - 2000 µm USB

Manufacturer code: 10030591

The Paint Thickness M eter from Steinberg Systems is an indispensable tool for the automotive trade and the metal and chemical industries. The tester will measure the paint coating of ferromagnetic and non-magnetic materials. The measurement precision is ±2% + 1 μm. LCD panel with backlight function. The result can be stored in memory up to 2000 results. The measurement range is 0-2000 μm. The varnish meter works in 2 modes: with ferromagnets by magnetic induction, and with other materials by eddy current. The minimum measuring area is Ø20 mm. The minimum radius of curvature for convex surfaces is 5 mm, for concave surfaces 25 mm. The whole set is contained in a carrying case. To connect the equipment to a computer, just use a USB cable. Powered by 2 x AAA batteries, the equipment shows reliable results in a temperature range of 0 ~ 50°C and humidity between 20 and 90%.

Product features:

• - Precision ±2% + 1 μm,
• - Memory for up to 2000 data,
• - Measurement range 0-2000 µm,
• - 2 measurement modes,
• - Practical carrying case.

• - Model - SBS-CT-2000
• - Part number - 10030591
• - Article condition - New
• - Housing material - ABS: plastic and silicone
• - Minimum material thickness - 0.2 mm magnetic induction / 0.05 mm eddy current
• - Measurement accuracy - ±2% + 1 μm
• - Resolution - 0.1 µm
• - Display - LCD
• - Ambient temperature - 0~50°C
• - Storage temperature - -10~60°C
• - Connection method to computer - USB
• - Measurement memory capacity - 2000 results
• - Battery type - 2 x AAA
• - Measuring method - Magnetic induction / Eddy current
• - Material selection modes - Magnetic induction / Eddy current
• - Measuring range - 0-2000 µm
• - Units of measurement - µm, mm, mil
• - Minimum diameter of the measuring area - Ø20 mm
• - Minimum radius of curvature - 5 mm for convex surfaces / 25 mm for concave surfaces
• - Permissible humidity of the measured surface - 20~90%
• - Mini USB cable length - 0.8 m
• - Dimensions (DxSxW) - 10.5 x 5 x 2.5 cm
• - Weight - 0.2 kg
• - Shipping dimensions (DxSxW) - 25 x 19 x 6 cm
• - Shipping weight - 0.6 kg

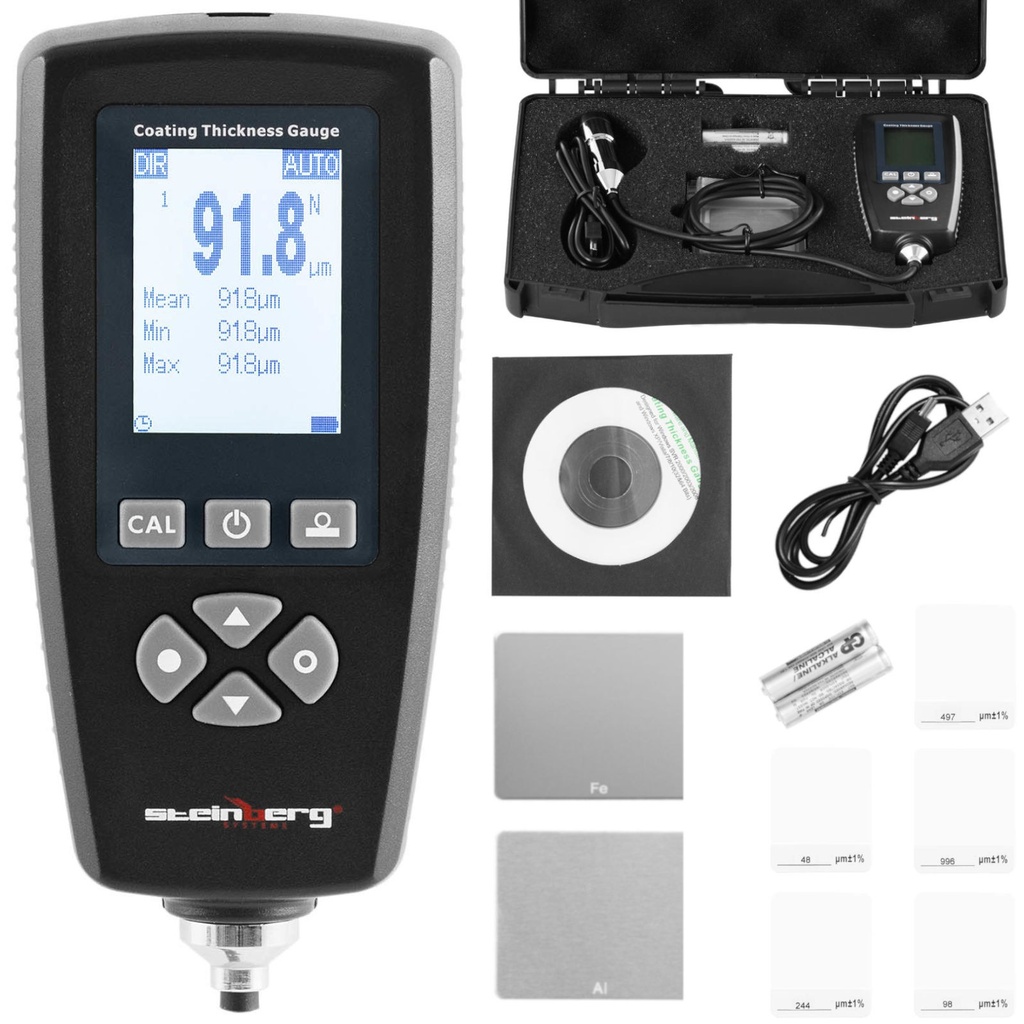

• - Paint thickness meter,
• - Case,
• - Batteries,
• - Instruction manual.
