Bar dishwasher + dispenser + pump basket 50x50cm 400V 3 PROGRAMS

Manufacturer name: Hendi 231753

Hendi's fast and economical electronically controlled bar dishwasher is an appliance designed for cafes, restaurants, hotels and other professional establishments and caterers. It is perfect for washing cups, cups, cutlery or plates and is extremely easy to use, maintain and service.

Features and functions:

• - touchscreen electronic panel control,

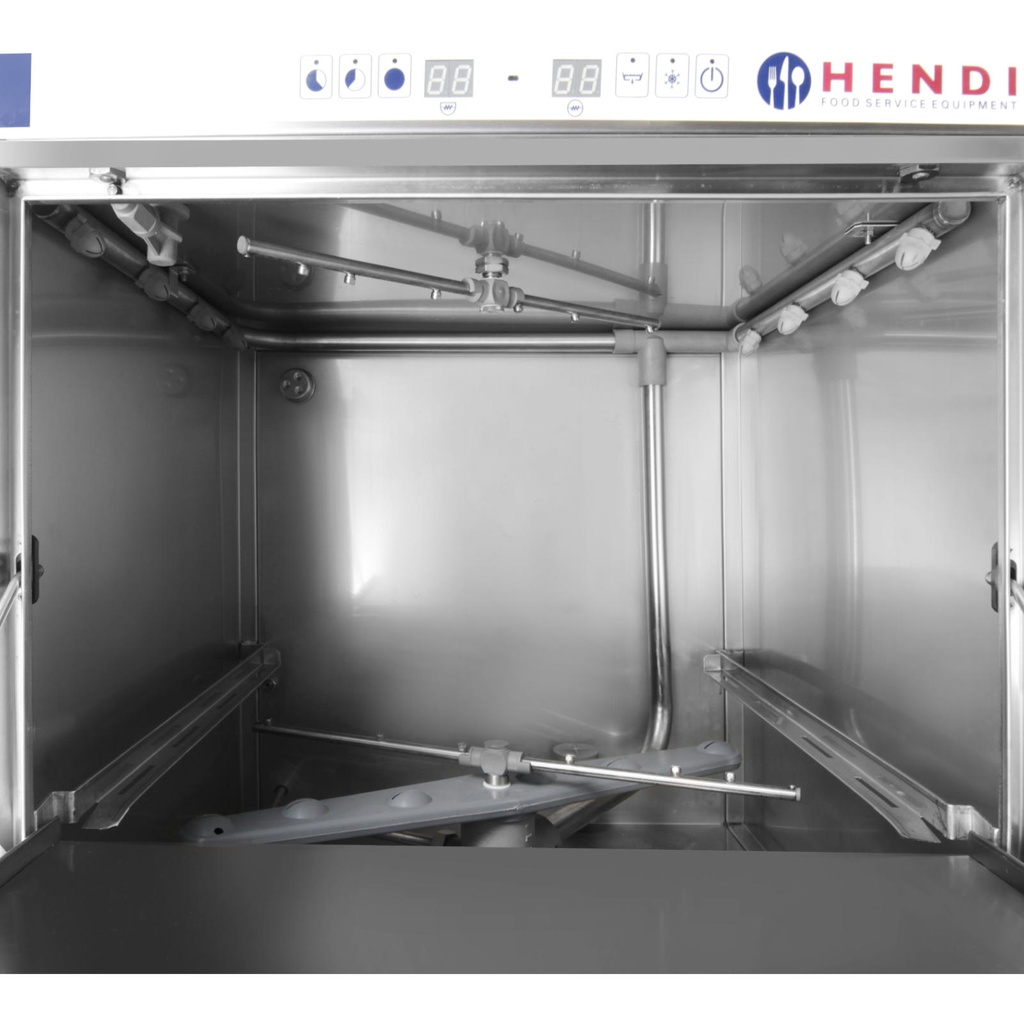

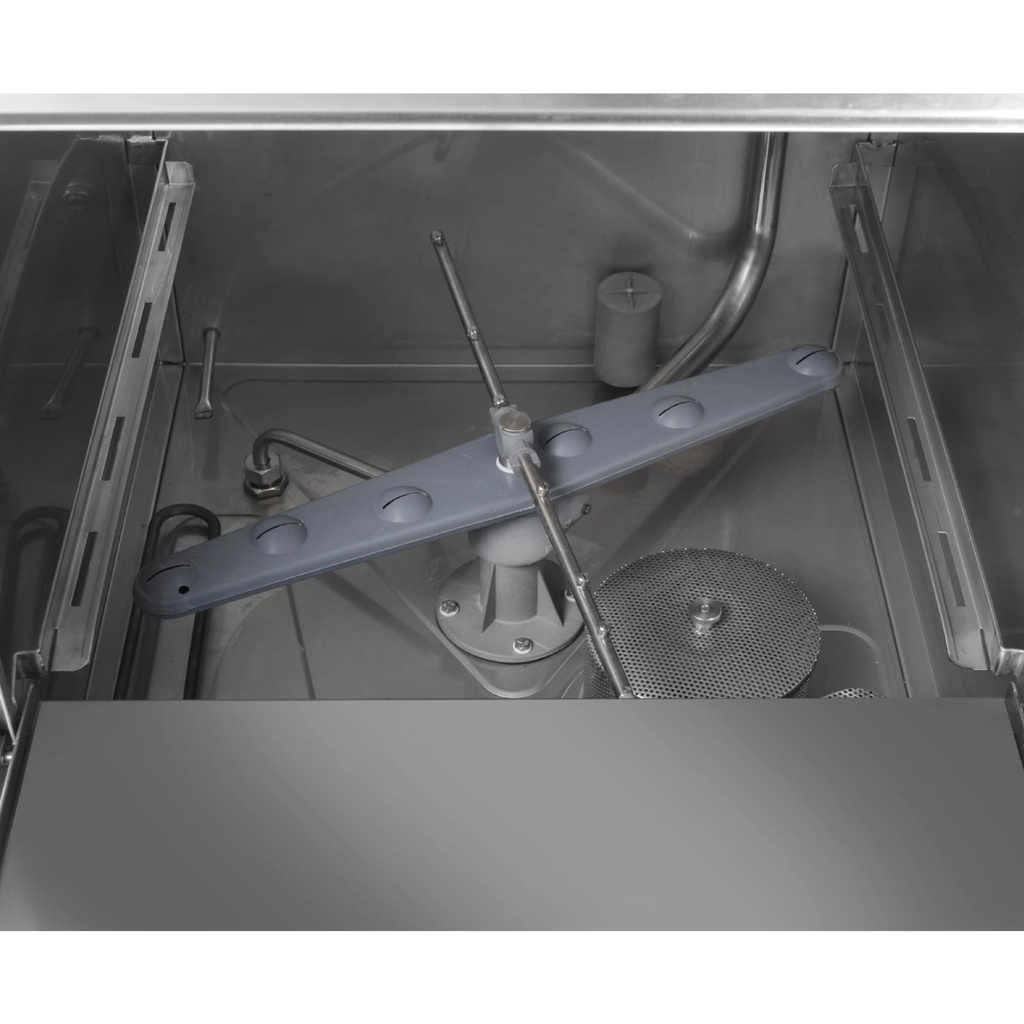

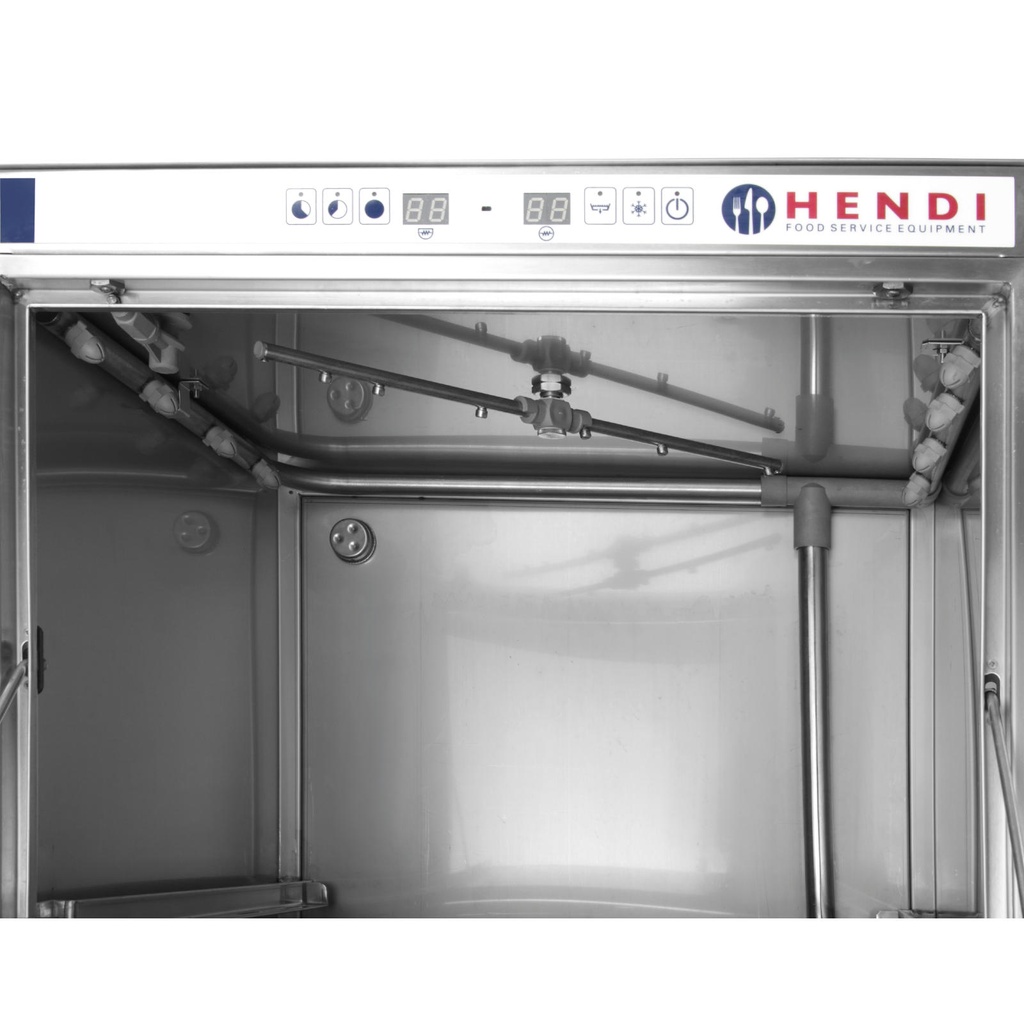

• - separate washing and rinsing arms at the bottom and top of the machine,
• - AISI 304 stainless steel housing,
• - sturdy double-layered door with microswitch for operation when opened with an entrance height of 360 mm,
• - electronic water thermometer in the boiler and in the bath,
• - vertically adjustable feet ±10 mm, ø40 mm,
• - washing program of the dishwasher chamber,
• - possibility of rinsing with cold water (especially useful for washing glass),
• - "THERMO-PROTECTOR" preventing cold water rinsing (start of rinsing at 85 deg C),
• - "SOFT START" starting the pump with lower pressure and gradually raising the pressure so as not to damage the dishes,
• - 8-point self-diagnostic system,
• - ECO system - reduces electricity consumption.

• - Voltage - 400 V
• - Power - 6600 W
• - Housing material - AISI 304 stainless steel
• - Washing arm material - Stainless steel (top)
• - Plastic (bottom) -
• - Rinsing arm material - Stainless steel
• - Number of programs - 3
• - Length of 1 washing cycle - 60, 120, 180 s
• - Capacity - 60, 30, 20 baskets / hr.
• - Water consumption (1 cycle) - 2-2.5 L
• - Washing water temperature - 60 deg C
• - Rinsing water temperature - 85 deg. C
• - Boiler (capacity / power) - 6 L / 6 kW.
• - Bathtub (capacity / power) - 35 L / 2,8 kW
• - Power of the washing pump - 0,75 hp
• - Safety thermostat for the boiler - 105 deg. C
• - Safety thermostat for the tub - 99 deg. C
• - Pump waterproofing factor - IP 44
• - Max plate/glass height - 335 mm / 325 mm
• - Dimensions (DxSxW) - 570 x 600 (+370) x 830 mm
• - Weight - 55 kg

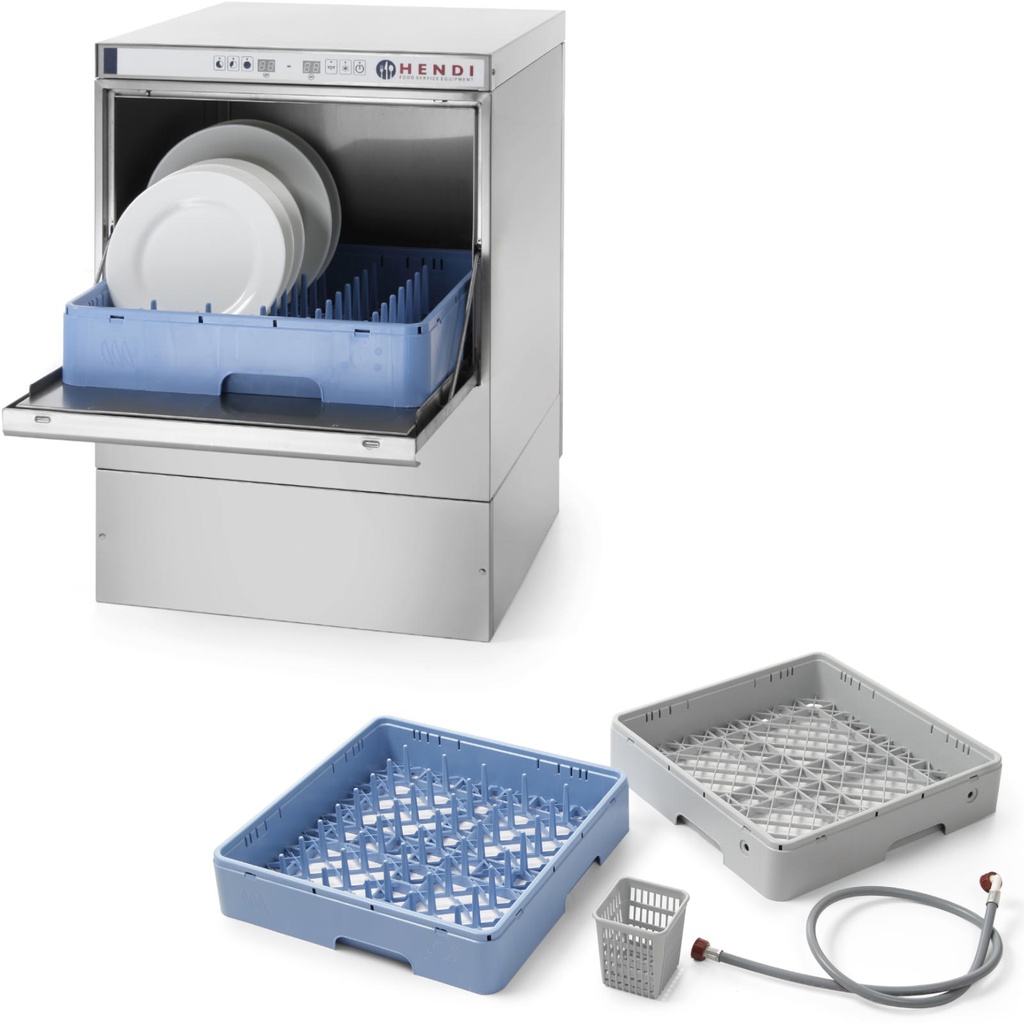

• - bar dishwasher + dispenser + pump basket 50x50cm 400V 3 PROGRAMS,

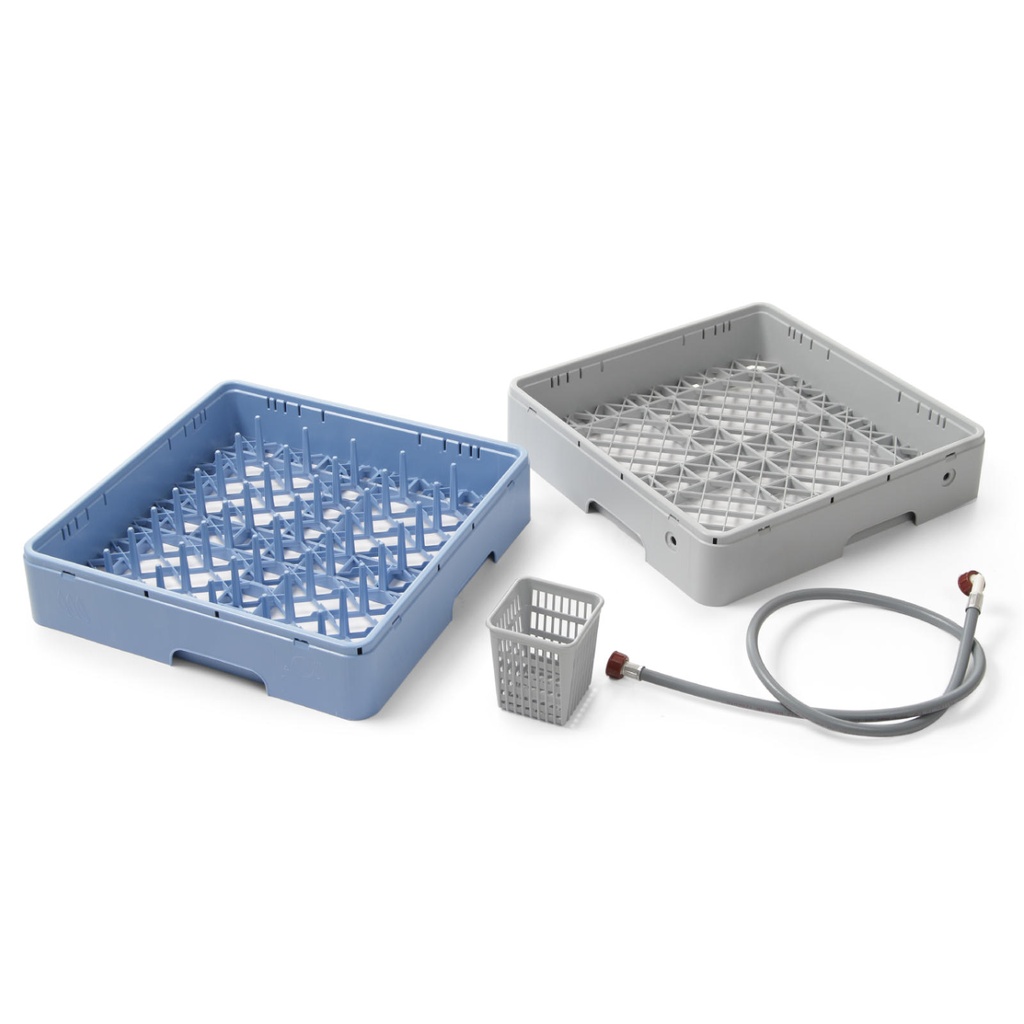

• - universal basket for glassware (DxSxW): 500x500x105mm,
• - basket with pins for deep and shallow plates in 5x8pcs arrangement, (DxSxW): 500x500x105mm,
• - cutlery basket 110x110x130mm,
• - 1.5m long water supply hose, with 3/4" female thread connection,
• - drain hose,
• - electric cable without plug.
