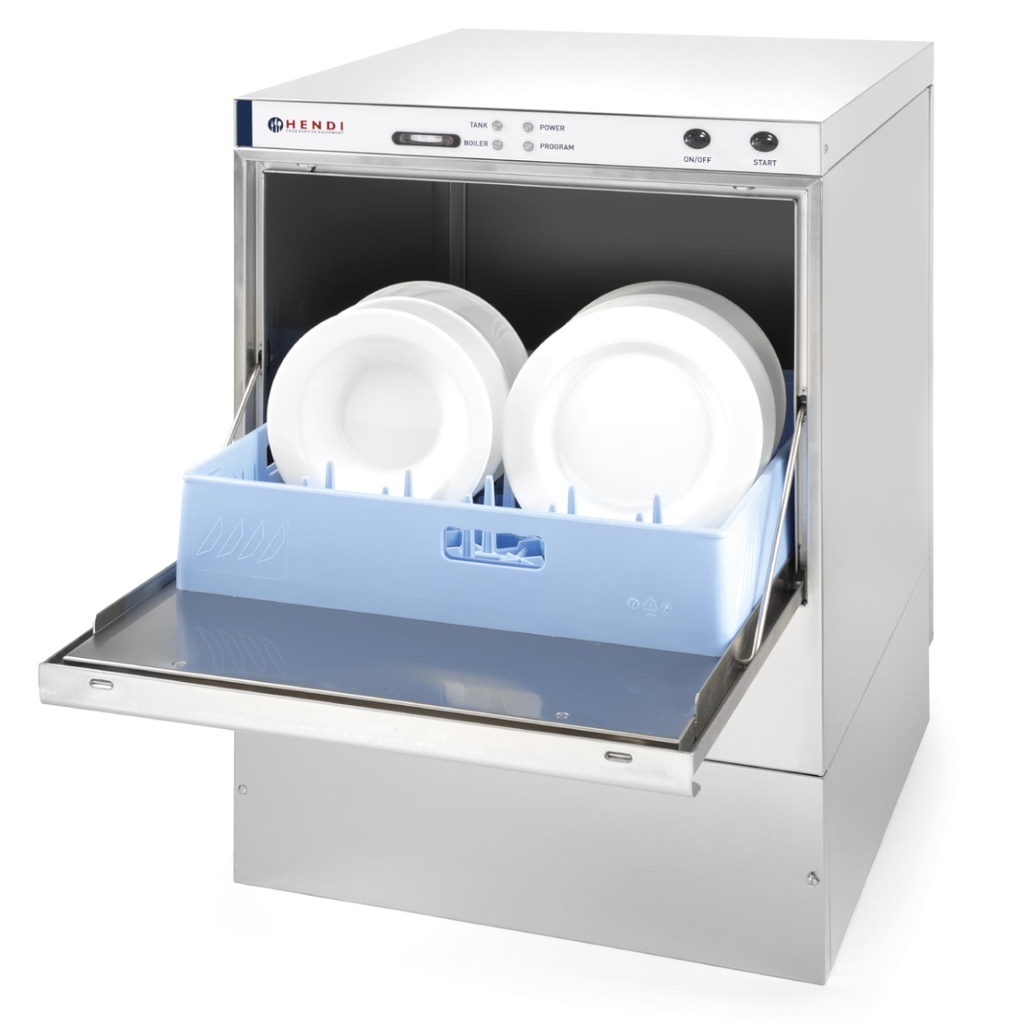

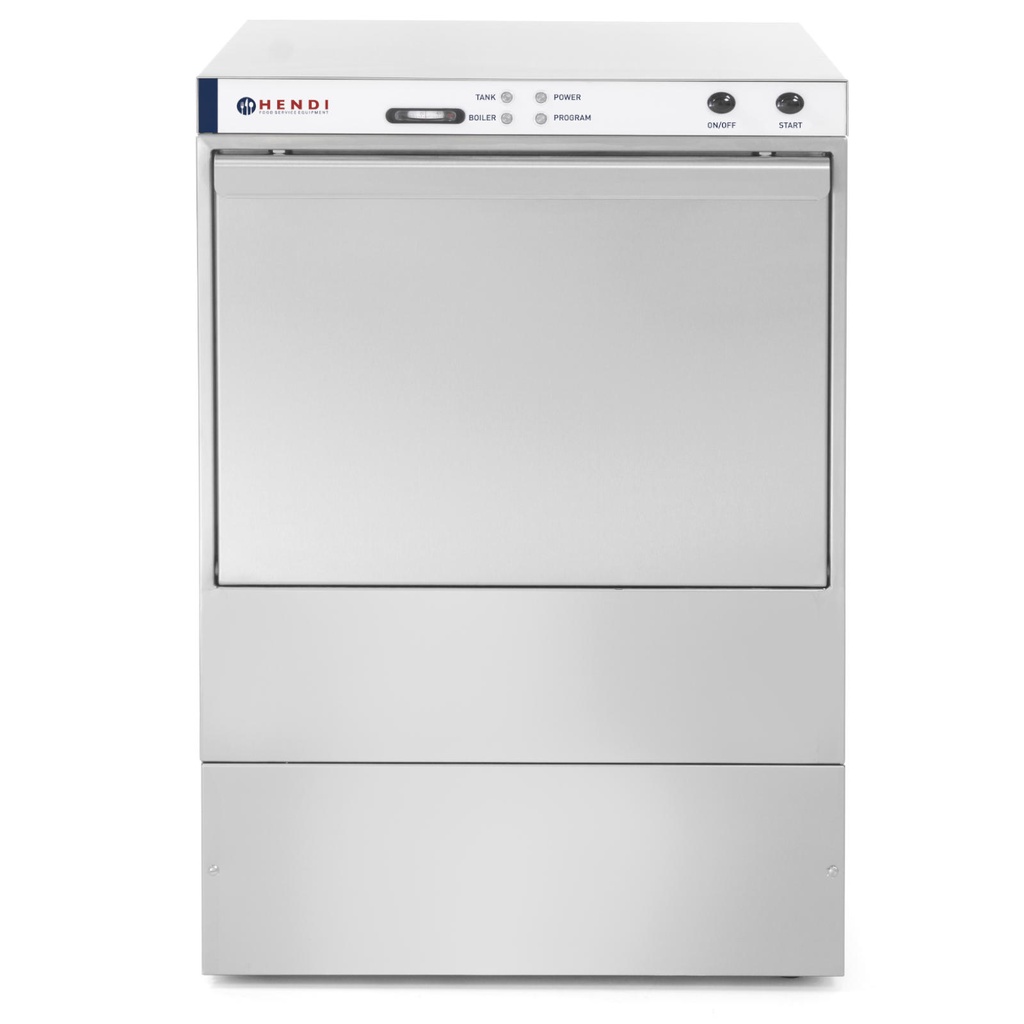

Bar dishwasher fast and economical 50x50cm basket 400V

Manufacturer name: Hendi 230305

The fast and economical electromechanically controlled bar dishwasher from Hendi is a device designed for cafes, restaurants, hotels and other professional establishments and catering establishments. It is perfect for washing cups, cups, cutlery or plates and is extremely easy to use, maintain and service.

Features and functions:

• - up to 30 baskets per hour,
• - electromechanical control,
• - AISI 304 stainless steel housing,
• - separate stainless steel washing (plastic) and rinsing arms,

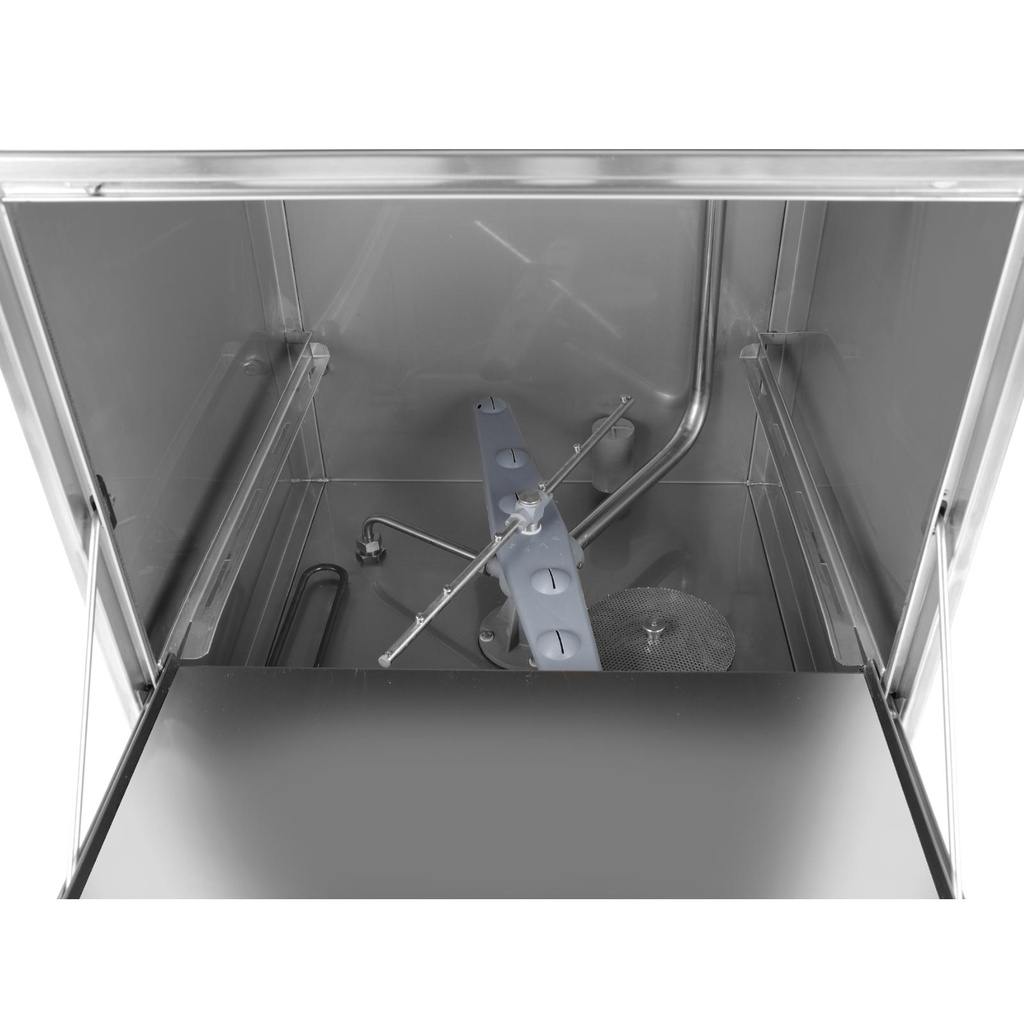

• - stationary washing arms at the top, rotary rinsing arms,
• - solid double-layer door,
• - washing cycle of 120 sec,
• - extensive set,
• - electric cable without plug,
• - rinse aid dispenser,
• - adapted for installation of detergent dispenser (screw in the back wall of the tub),
• - vertically adjustable feet with a diameter of ø40 mm (± 10 mm).

• - Voltage - 400 V
• - Power - 6600 W
• - Housing material - Stainless steel (AISI 304)
• - Material of washing arms - Plastic
• - Rinsing arm material - Stainless steel
• - Length of 1 washing cycle - 120 s
• - Capacity - 30 baskets per hour
• - Water consumption (1 cycle) - 2-2.5 l (depending on water pressure)
• - Washing water temperature - 62 deg C
• - Rinsing water temperature - 85 deg C.
• - Boiler (capacity / power) - 400 V - 6 l / 6 kW
• - Bathtub (capacity / power) - 35 l / 2,8 kW
• - Pump power - 0,75 hp
• - Safety thermostat (boiler) - 105 deg. C
• - Safety thermostat (tub) - 99 deg. C
• - Pump waterproofing factor - IP 44
• - Max. basket dimensions - 500 x 500 mm
• - Dimensions (DxSxW) - 570 x 600 (+370) x 830 mm
• - Weight - 57 kg

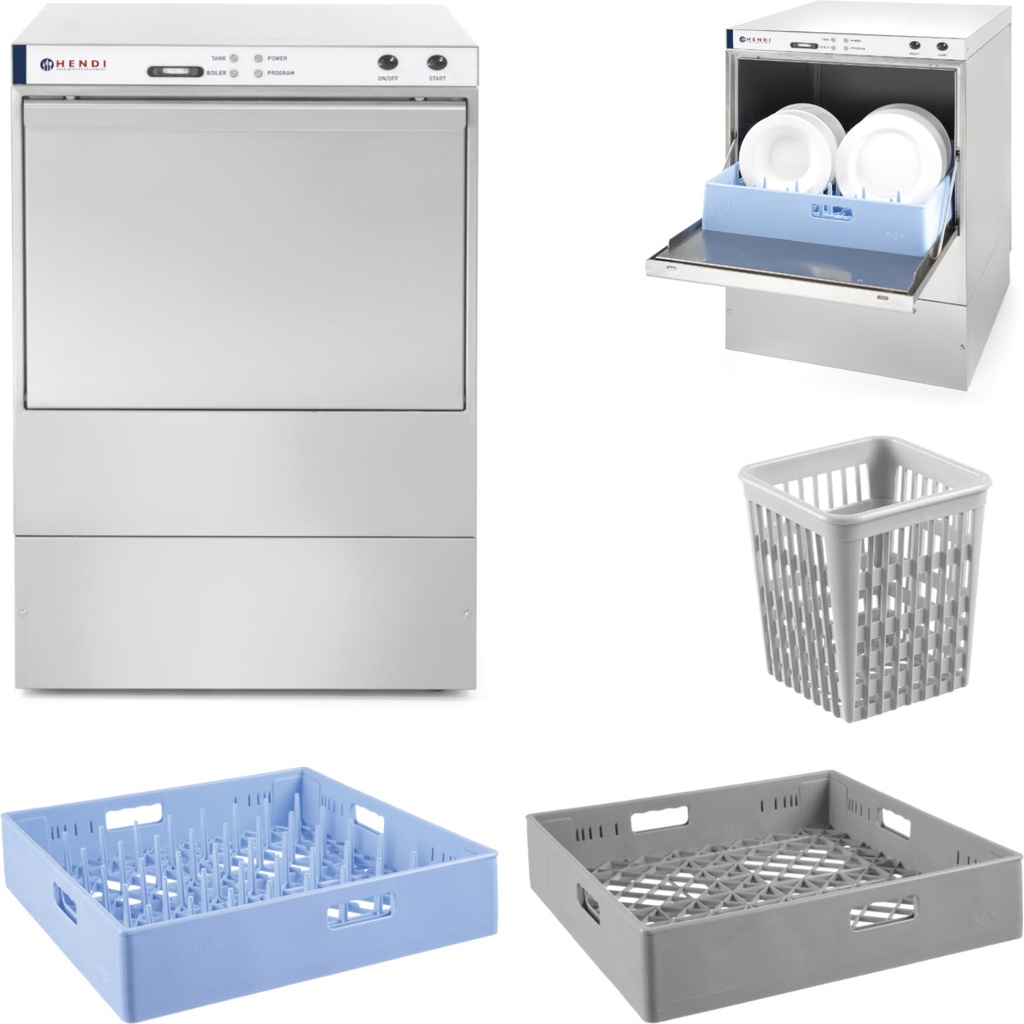

• - bar dishwasher fast and economical basket 50x50cm 400V,

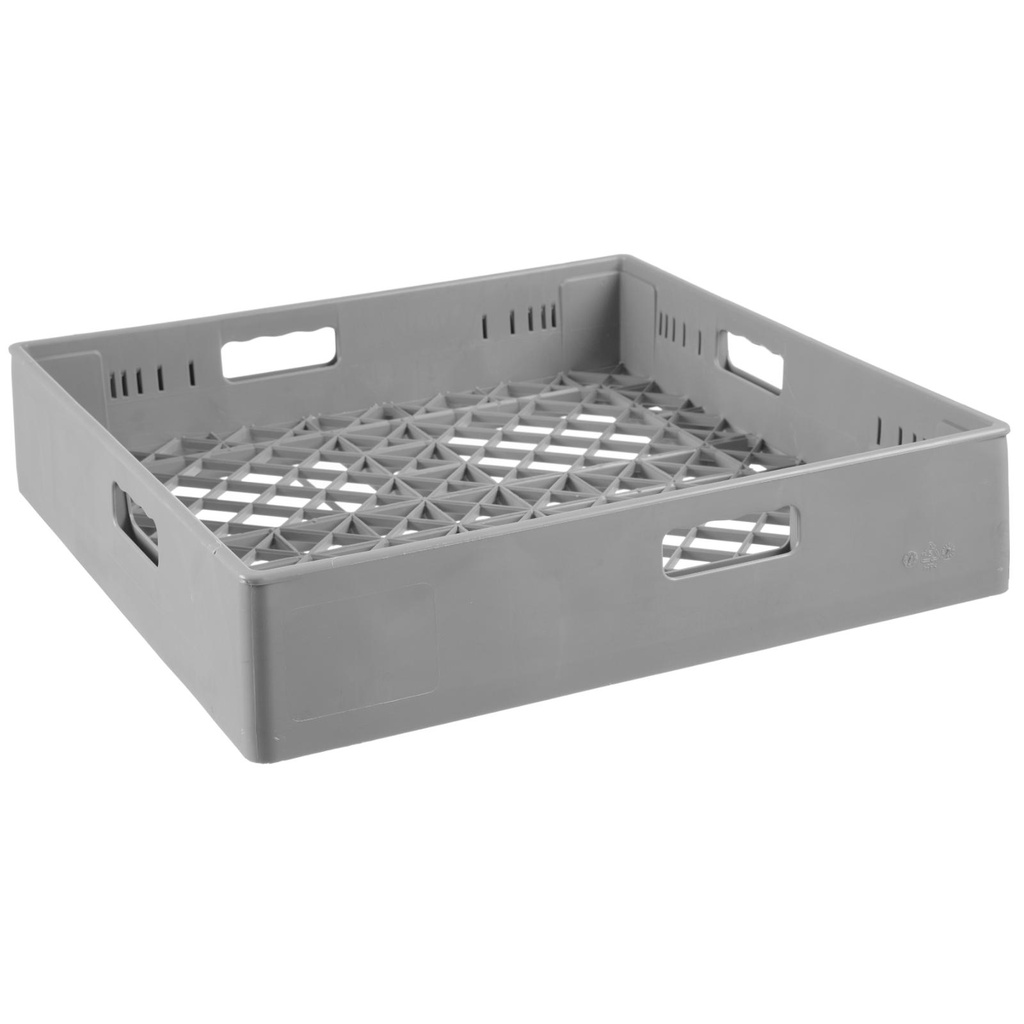

• - universal basket for glassware (DxSxW) 500 x 500 x 105 mm,
• - basket with pins for deep and shallow plates in 5x8 pcs arrangement (DxSxW) 500 x 500 x 105 mm,

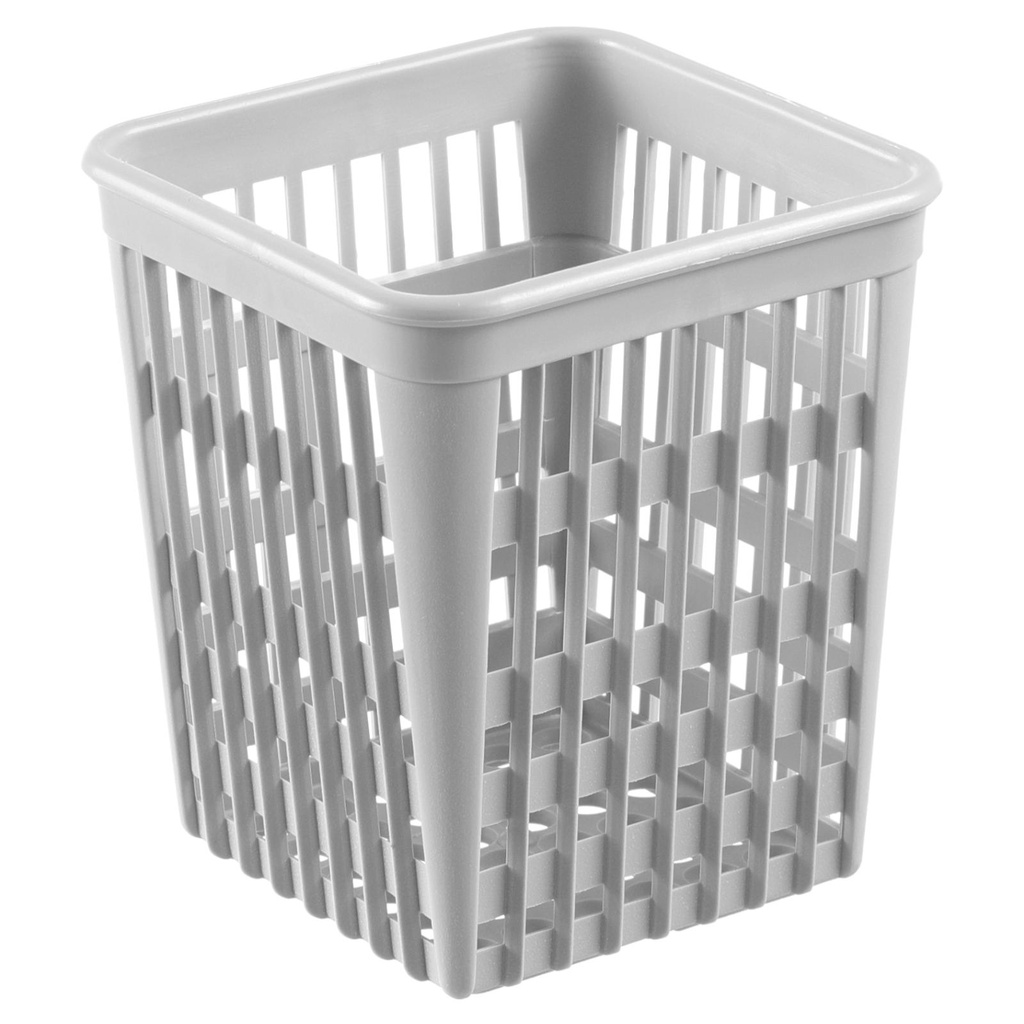

• - cutlery basket (DxSxW) 110 x 110 x 130 mm,
• - water supply hose (length 1.5 m) with 3/4" female thread connection,
• - drain hose (length 2 m) ø25 mm,
• - electric cable without plug,
• - rinse aid dispenser,
• - adapted for installation of detergent dispenser (screw in the back wall of the tub),
• - vertically adjustable feet ± 10 mm (ø40 mm).
