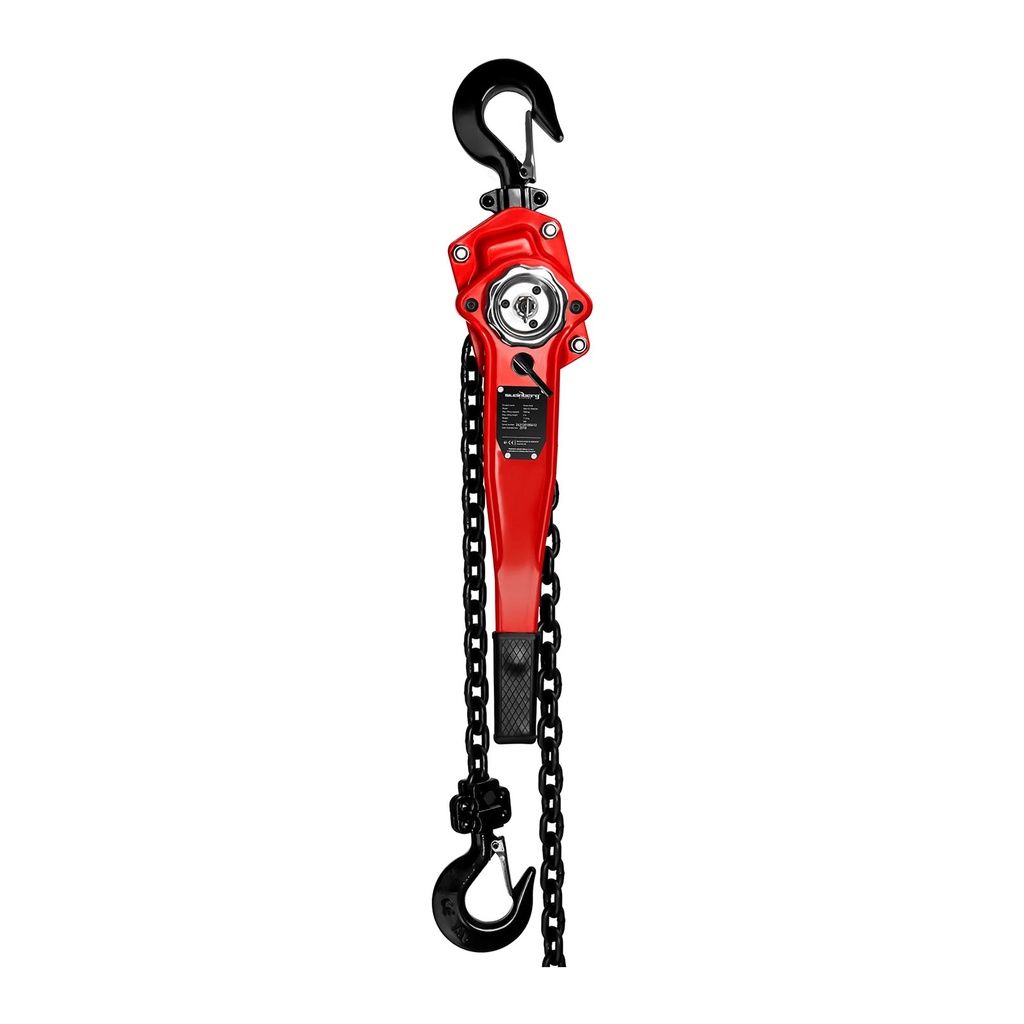

Chain hoist winch chain hoist 1,5 T / 2 m

Manufacturer Number: Steinberg Systems 10030378

The chain hoist from the German brand Steinberg Systems is a versatile device that will be perfect for various manufacturing companies, mechanical engineering plants, warehouses or construction sites. Its primary use is lifting and lowering heavy objects.

The manual chain hoist allows lifting objects weighing up to 1500 kg up to a height of two meters. Thanks to durable chains (type G80, links with a diameter of 8 mm) and high-quality steel components, work with the SBS-FZ 1500/2M model is very safe. This is also influenced by the rubberized end of the control rod and the locking device for stopping the load at the indicated height.

In order to increase the user's convenience, the hoist is equipped with two swivel hooks and a lever with a light ratio connected to the mechanism inside the housing. It allows comfortable lifting and lowering of the object.

Product features:

• - Efficiency - maximum lifting capacity of up to 1.5 T allows lifting objects to a height of 2 m,
• - Convenience - control lever and lock to stop the winch,
• - Safety - steel construction, high quality workmanship, two swivel hooks and lever with non-slip handle.

• - Model - SBS-FZ 1500/2M
• - Part number - 10030378
• - Article condition - New
• - Max. lifting capacity - 1500 kg
• - Material - Steel
• - Max. lifting height - 2 m
• - Min. distance between hooks - 380 mm
• - Required force to lift the weight - 225 N
• - Type of chain - G80
• - Number of load chains - 1
• - Chain link diameter - 8 mm
• - Operating instructions - Yes
• - Dimensions (DxSxW) - 64.5 x 18 x 13.5 cm
• - Weight - 11.8 kg
• - Shipping dimensions (DxSxW) - 53.5 x 20 x 16.5 cm
• - Shipping weight - 12.7 kg

Included:

• Chain winch
• Instruction manual EN
