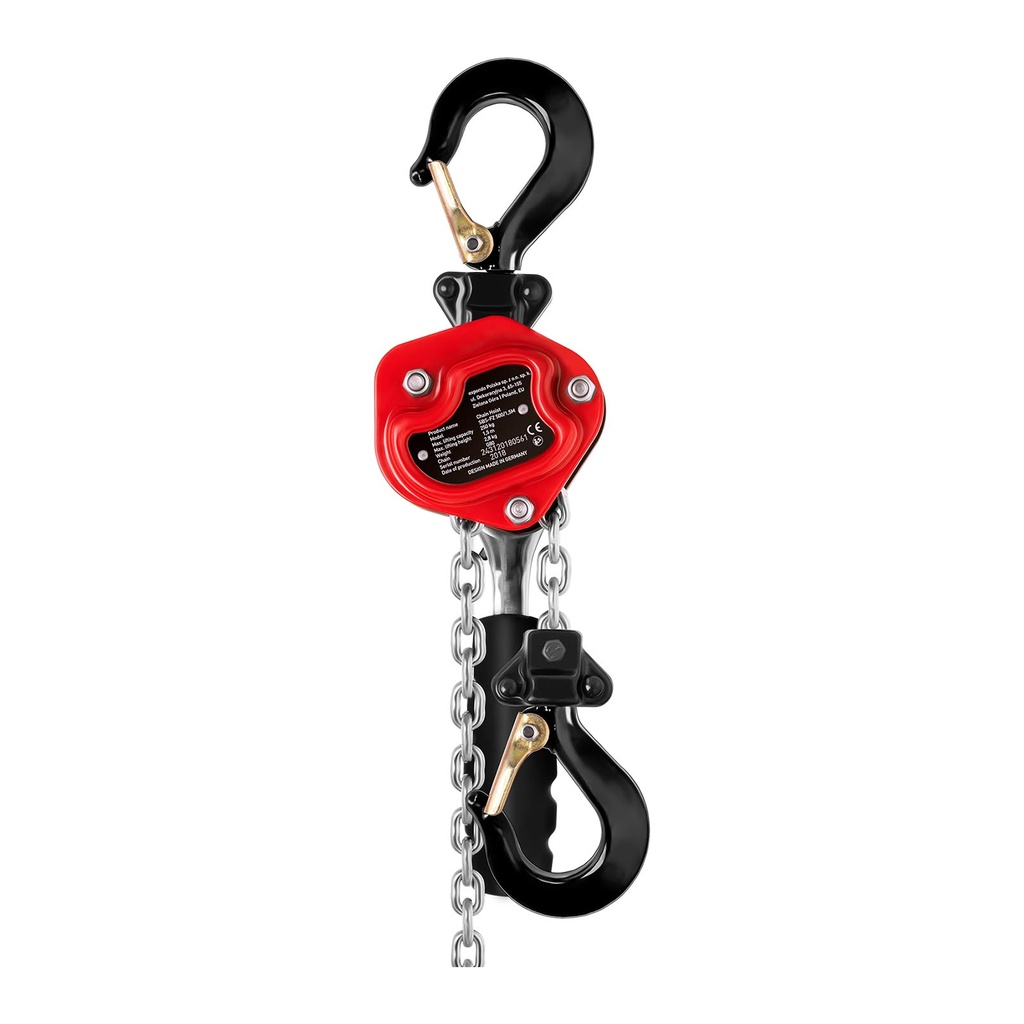

Chain hoist winch chain hoist 250 kg / 1.5 m

Manufacturer number: Steinberg Systems 10030377

The chain hoist from the German brand Steinberg Systems is a versatile device that will be perfect for various manufacturing companies, mechanical engineering plants, warehouses or construction sites. Its primary use is lifting and lowering heavy objects.

The manual chain hoist allows lifting objects weighing up to 250 kg up to a height of one and a half meters. Thanks to durable chains (type G80, links with a diameter of 4 mm) and high-quality steel components, work with the SBS-FZ 250/1,5M model is very safe. This is also influenced by the nylon-covered end of the control rod and the locking device that allows the load to be stopped at the indicated height.

In order to increase the user's convenience, the hoist has been equipped with two rotating hooks and a lever with a light ratio connected to the mechanism inside the housing. It allows comfortable lifting and lowering of the object.

Product features:

• - Performance - maximum lifting capacity of up to 250 kg allows lifting objects to a height of 1.5 m,
• - Convenience - control lever and lock to stop the winch,
• - Safety - steel construction, high quality workmanship, two rotating hooks and lever with non-slip handle,
• - Mobility - a convenient cotton bag is included.

• - Model - SBS-FZ 250/1,5M
• - Part number - 10030377
• - Article condition - New
• - Max. lifting capacity - 250 kg
• - Material - Steel
• - Max. lifting height - 1.5 m
• - Min. distance between hooks - 265 mm
• - Required force to lift the weight - 260 N
• - Type of chain - G80
• - Number of load chains - 1
• - Chain link diameter - 4 mm
• - Operating instructions - Yes
• - Dimensions (DxSxW) - 22 x 11.5 x 9.5 cm
• - Weight - 2.35 kg
• - Shipping dimensions (DxSxW) - 23 x 15.5 x 16 cm
• - Shipping weight - 2.7 kg

Included:

• Chain winch
• Cotton cover
• Operating instructions
