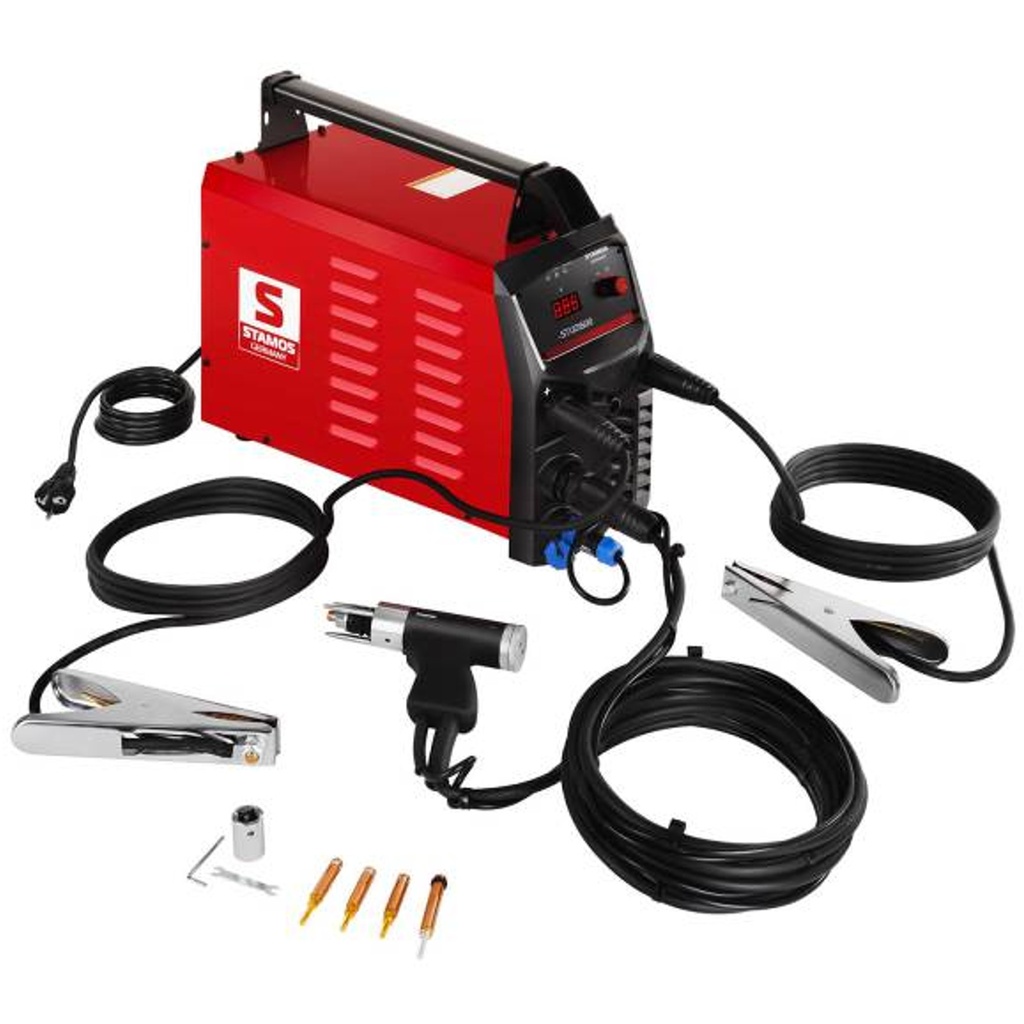

Condenser welding machine for M3 - M8 metal stud nails S-STUD1600 Juli Stamos Germany

Manufacturer name: S-STUD1600

The condenser welding machine from Stamos Germany enables efficient and fast welding of screws, pins, nails and dowels to metal surfaces. The S-STUD1600 is suitable for metalwork and assembly work such as sheet metal, insulation and fencing. The model leaves high-quality welds.
Capacitor capacitance of 72,000 uF and energy of 1,600 J provide the equipment with high efficiency. The machine can handle materials such as copper, aluminum, titanium, steel (including stainless steel) and brass, for example. No pre-treatment or finishing is necessary.
M3, M4, M5, M6 and M8 mandrels (max. length 40 mm) fit the Stamos Germany welder. They are pinned with a three-pin gun. Handles for holding the pins are included.

Features:
- Fast pinning
- Durable welds
- Adjustable pressure
- Stepless tension adjustment
- Steel and plastic housing
- Easy-to-read control panel

Technical specifications:

• - Model - S-STUD1600
• - Part number - 2158
• - Article condition - New
• - Housing material - Steel, plastic
• - Voltage - 230 V / 50 Hz
• - Welding voltage - 20 - 195 V
• - Rated power - 500 kVA
• - Capacitor capacity - 72000 uF
• - Stored energy - 1600 J
• - Welding range - Ø 3 - 8 mm / M3 - M8
• - Max dowel length - 40 mm
• - Welding capacity - 10 - 20 welds/min.
• - Welding gun cable length - 4 m
• - Length of the mass cable - 2 x 4 m
• - Length of power cord - 2.2 m
• - Dimensions (DxSxW) - 56 x 21 x 38 cm
• - Weight - 19 kg
• - Shipping dimensions (DxSxW) - 65 x 32 x 43 cm
• - Shipping weight - 26 kg
