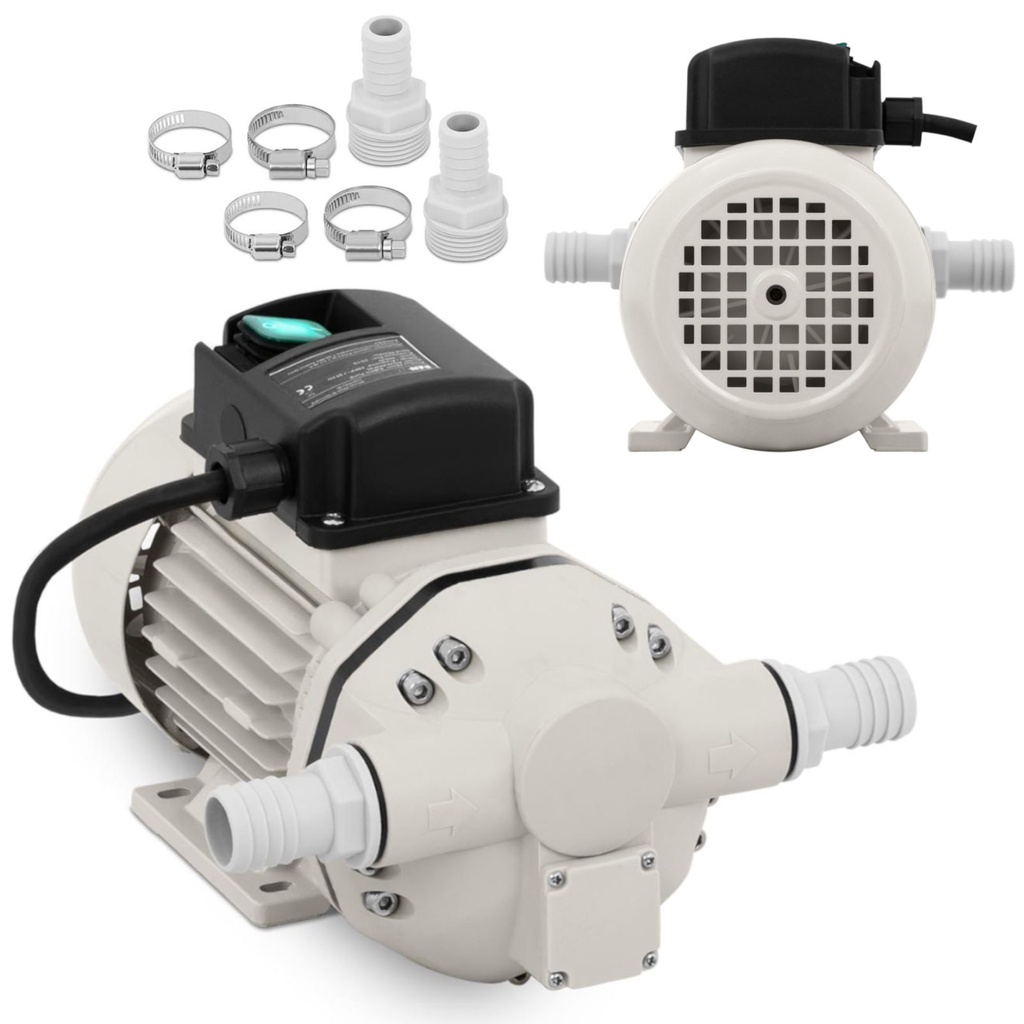

Diaphragm pump for aggressive fuels harmful liquids water 40l/min 2.8 bar

Manufacturer code: 10060825

MSW brand diaphragm pump designed for fast and safe pumping of aggressive fuels and harmful liquids such as catalytic fluid, urea solution, DEF, sus32, alcohol, ethanol, ammonia or IBC and water. The distributor is great for filling all kinds of vehicles and machinery, making it suitable for workshops, garages, stations.

The device uses an electric motor without any dynamic seals, which keeps the body temperature stable. The diaphragm pump allows pumping liquids at a speed of 40 l/min and an operating pressure of 2.8 bar. Possible operation at ambient temperatures: -30 to 60°C. Self-priming is the operation without the need to fill the inlet channel in advance. The pump can independently remove the accumulated air from the suction line, so it can be above the water tank during startup. Self-priming devices have a higher suction level (up to 10 m difference in height) compared to centrifugal ones. The pump will operate without damage even after prolonged dry operation.

Product features:

• - Performance - flow rate of 40 l/min, pressure of 2.8 bar,
• - Self-priming - works without the need to reflood the inlet channel,
• - Wide application - allows pumping of aggressive fuels (urea solution, DEF, sus32, alcohol, ethanol, ammonia, IBC, etc.) and water,
• - Durability - runs dry for a long time without damage.

• - Model - MSW-AOP40
• - Part number - 10060825
• - Article condition - New
• - Pressure - 2.8 bar
• - Inlet dimensions - 24.4 mm
• - Outlet dimensions - 19.7 mm
• - Voltage - 230 V
• - Power - 550 W
• - Material - Metal
• - Housing material - EPDM
• - Operating temperature - -30 - 60°C
• - Rotational speed - 2800 rpm
• - Maximum suction - 5 m
• - Flow speed - 40 l/min
• - Power cord - 1.6 m (including connection part)
• - Dimensions (DxSxW) - 28.5 x 23 x 17 cm
• - Weight - 5.9 kg
• - Shipping dimensions (DxSxW) - 33 x 16 x 20 cm
• - Shipping weight - 6.4 kg

• - Diaphragm pump
• - Clamp - 2 pcs.
• - Rubber gasket - 2 pcs.
• - Large hose end - 2 pcs.
• - Small hose end - 2 pcs.
• - Instructions EN
