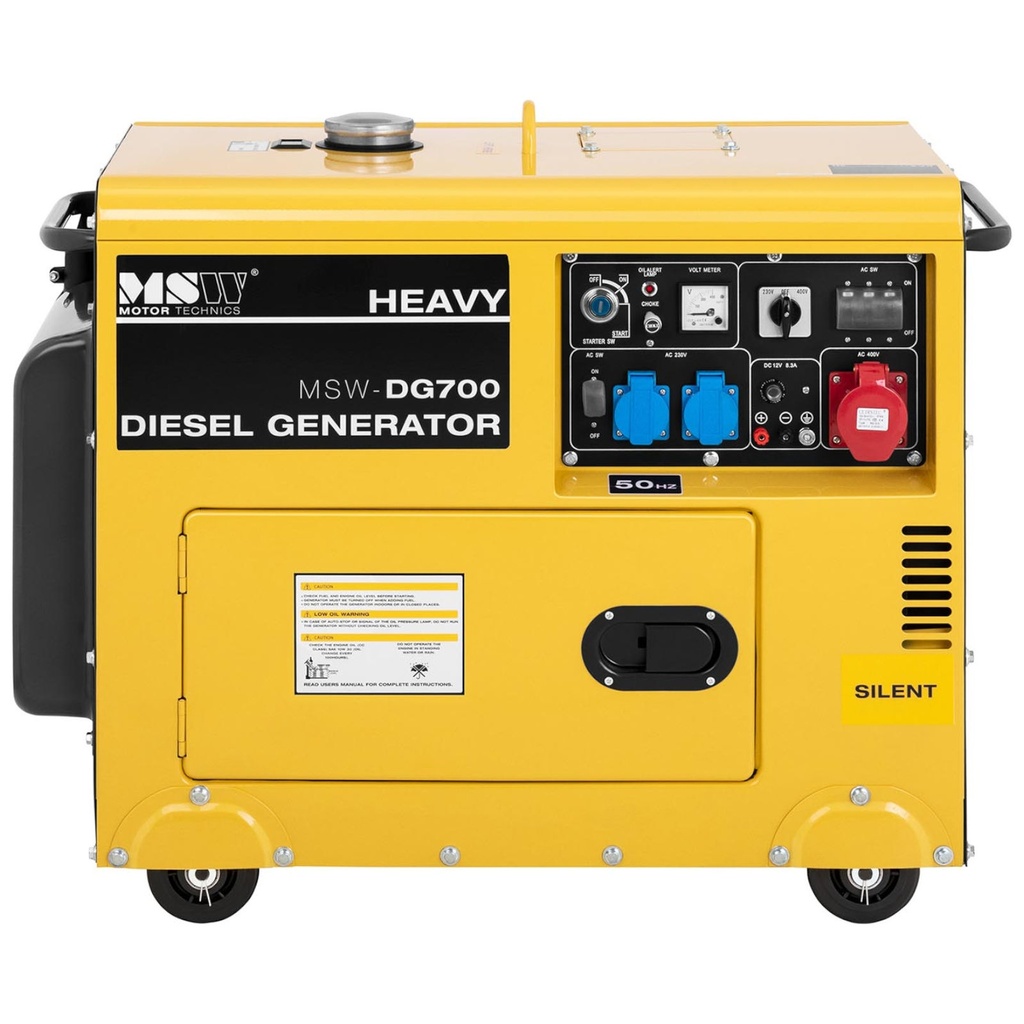

Diesel generator mobile air-cooled generator 230/400 V 4.4 kW 5.5 kVA 14.5 l

Manufacturer code: 10061192

MSW branddiesel generator generates 230/400 volt current . It is useful in all places without access to electricity, such as construction sites, open spaces, etc. The high output is due to the maximum power of 4.4 kW. The rated output is 50 Hz, 5.5 kVA. It is equipped with a fuel tank of 14.5 l and an oil tank of 1.65 l. Continuous operation time is 7.5 h (50 Hz). The HP186FAE 1-cylinder, 4-stroke diesel engine has electric start. It is air-cooled. Its power output is 5.5 kW (7 PS). The generator has 3 outlets: 2 x AC 230 V and 1 x 400 V. With these you can power several different machines, even in parallel. The rated current is 13 A/230 V and 6 A/400 V. The generator can be turned on with an electronic starter (batteries are included in the delivery). Safe operation is ensured by IP23 protection and overload protection.

Product features:

• - Maximum power of 4.4 kW,
• - Rated voltage 230/400 V,
• - Fuel tank 14.5 l,

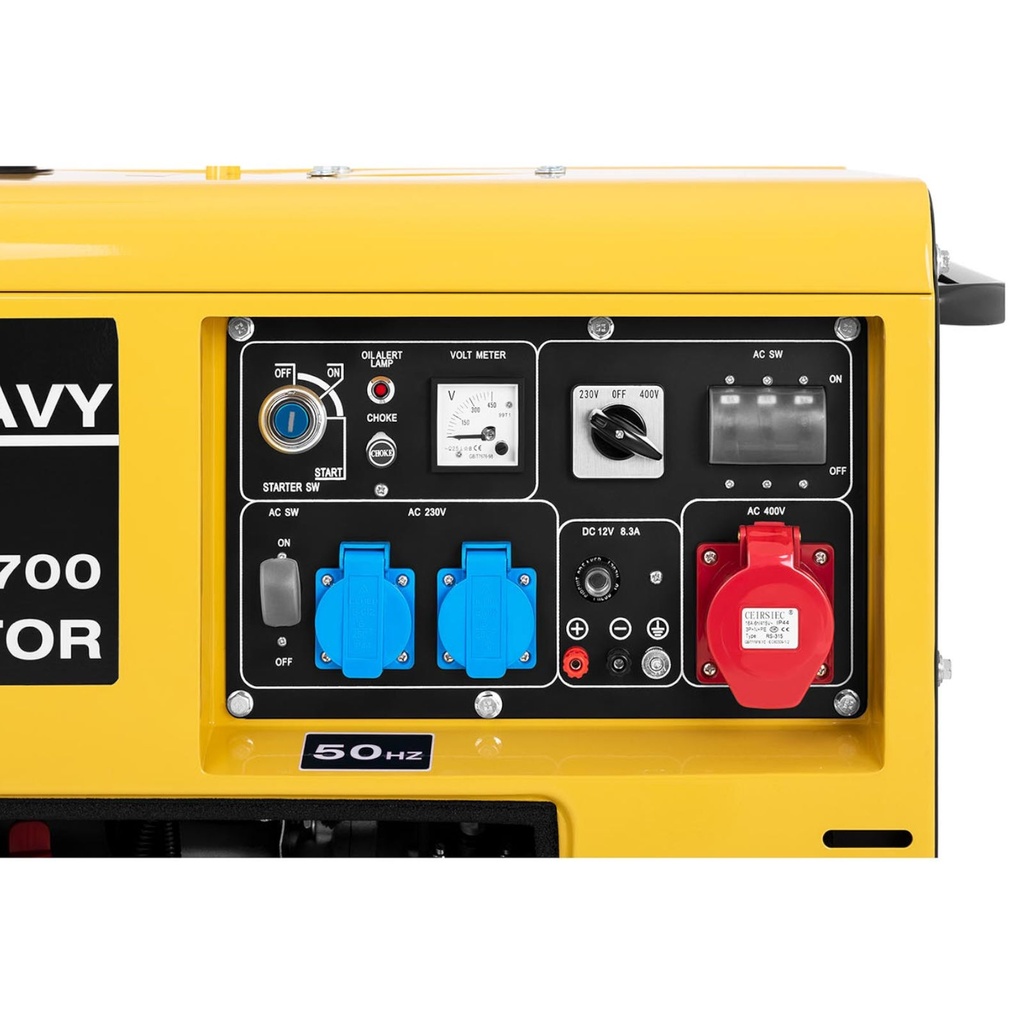

• - Two AC 230 V outlets and one 400 V outlet,
• - Continuous operation time of 7.5 h (50 Hz).

• - Model - MSW-DG700
• - Part number - 10061192
• - Article condition - New
• - Maximum power - 4.4 kW
• - Voltage - 230/400 V
• - Power factor - 0.8
• - Rated output 50 Hz - 5.5 kVA
• - Engine - HP186FAE, 1-cylinder, 4-stroke, upright, air-cooled, diesel engine
• - Fuel tank capacity - 14.5 l
• - Fuel type - Diesel
• - Operating time with full tank - 7.5 hr
• - Engine power - 5.5 kW (7 PS)
• - Starting - Electric
• - Continuous power - 5250 VA
• - Owner's manual - Yes
• - Dimensions (DxSxW) - 91,00 x 52,00 x 74,00 cm
• - Weight - 150.00 kg
• - Shipping dimensions (DxSxW) - 95.00 x 54.00 x 75.00 cm
• - Shipping weight - 169.00 kg

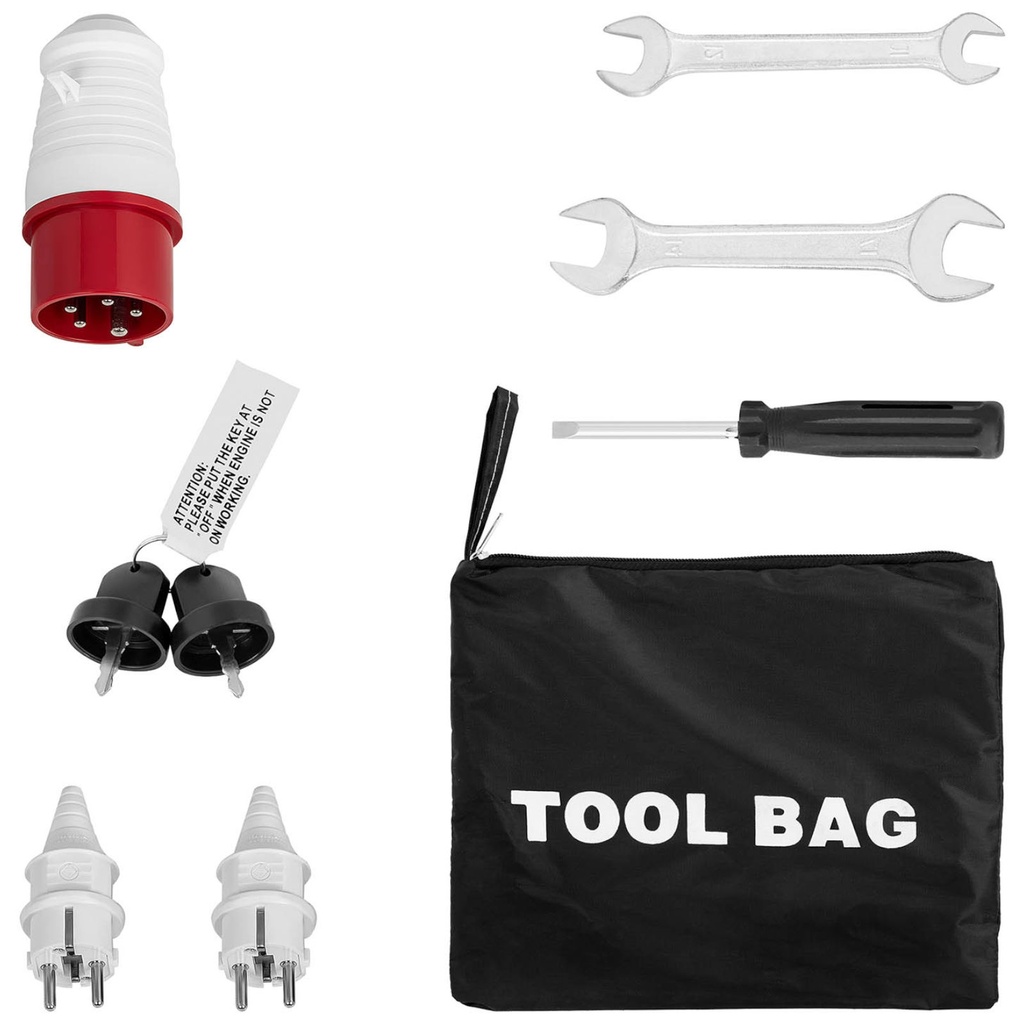

• - Diesel generator set,
• - Instruction manual.
