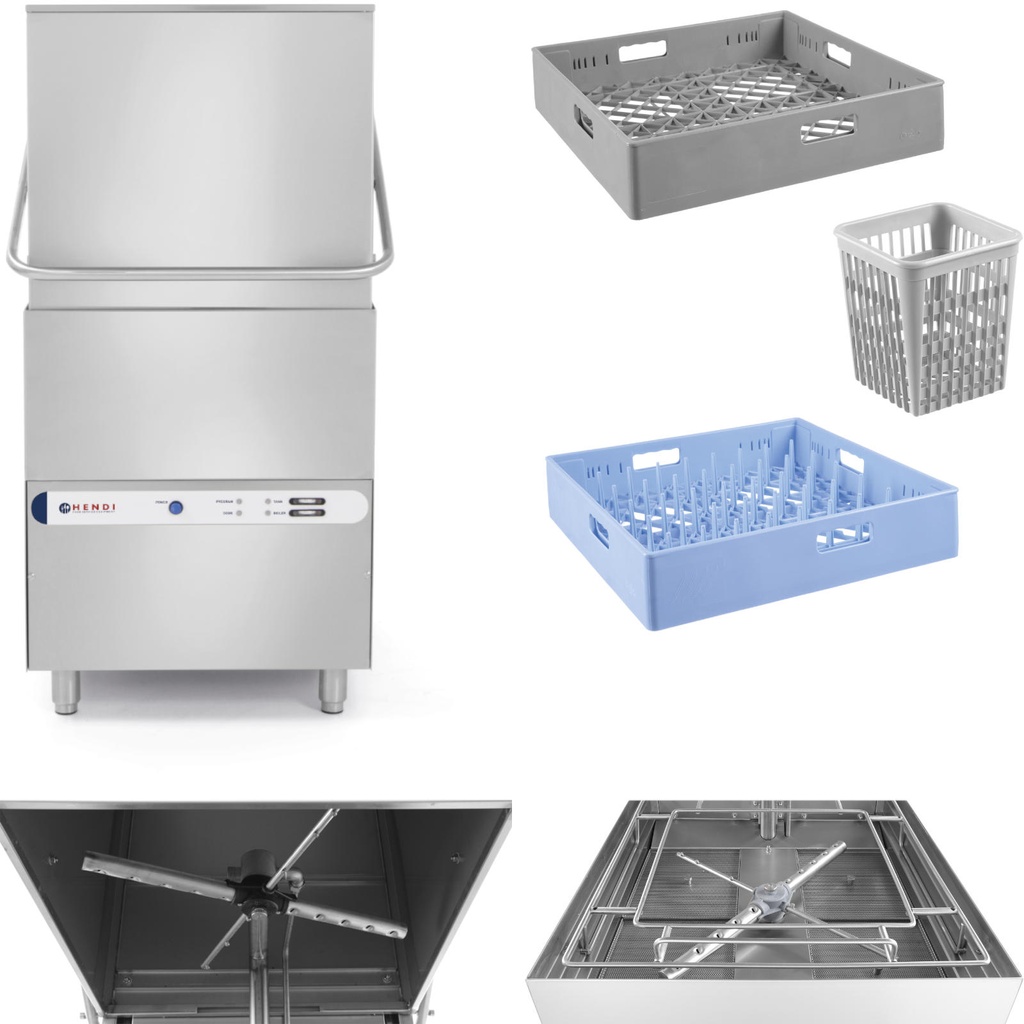

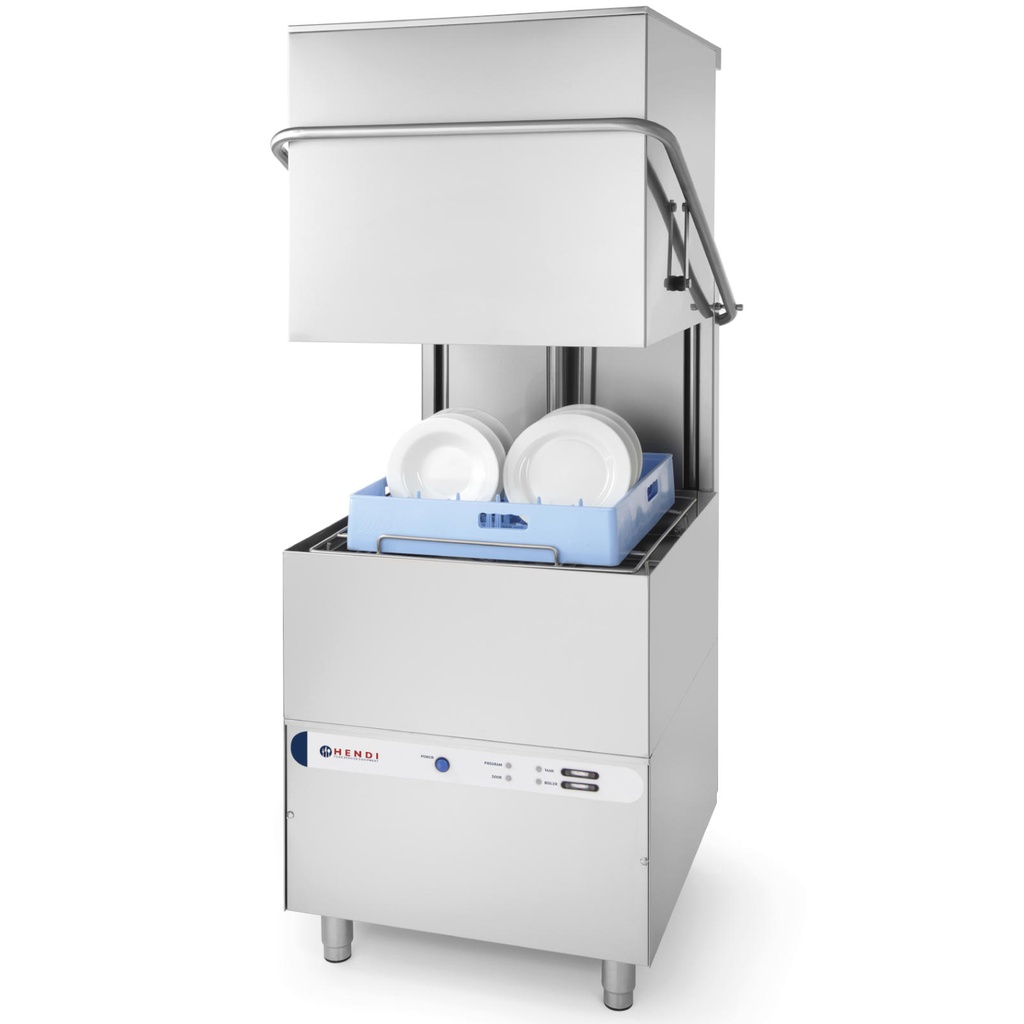

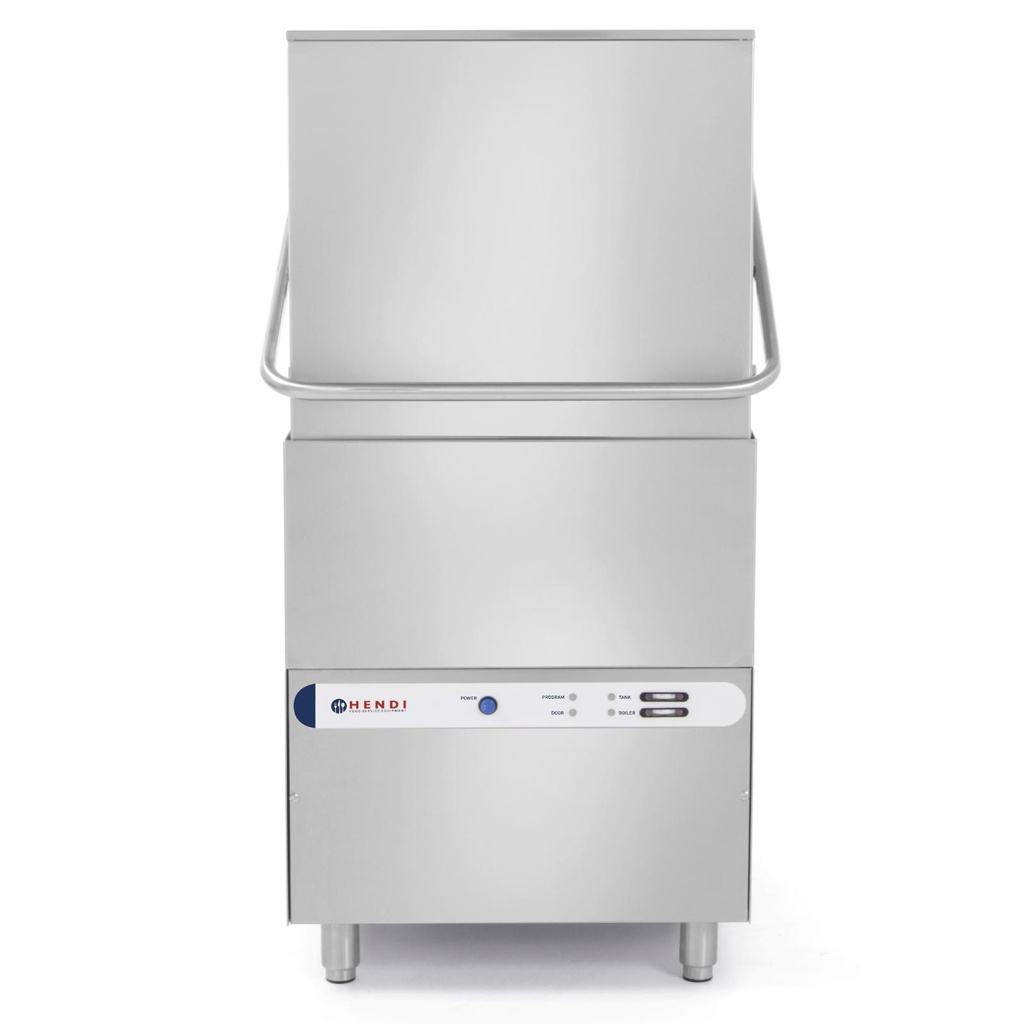

Dishwasher hood fast and economical + dispenser basket 50x50cm 400V

Manufacturer name: Hendi 233061

Hendi's fast and economical electromechanically controlled hood dishwasher is a device designed for cafes, restaurants, hotels and other professional establishments and catering establishments. It is perfect for washing plates, cups, cups or cutlery and is extremely easy to use, maintain and service.

Features and functions:

• - up to 30 baskets per hour,
• - electromechanical control,
• - AISI 304 stainless steel housing,

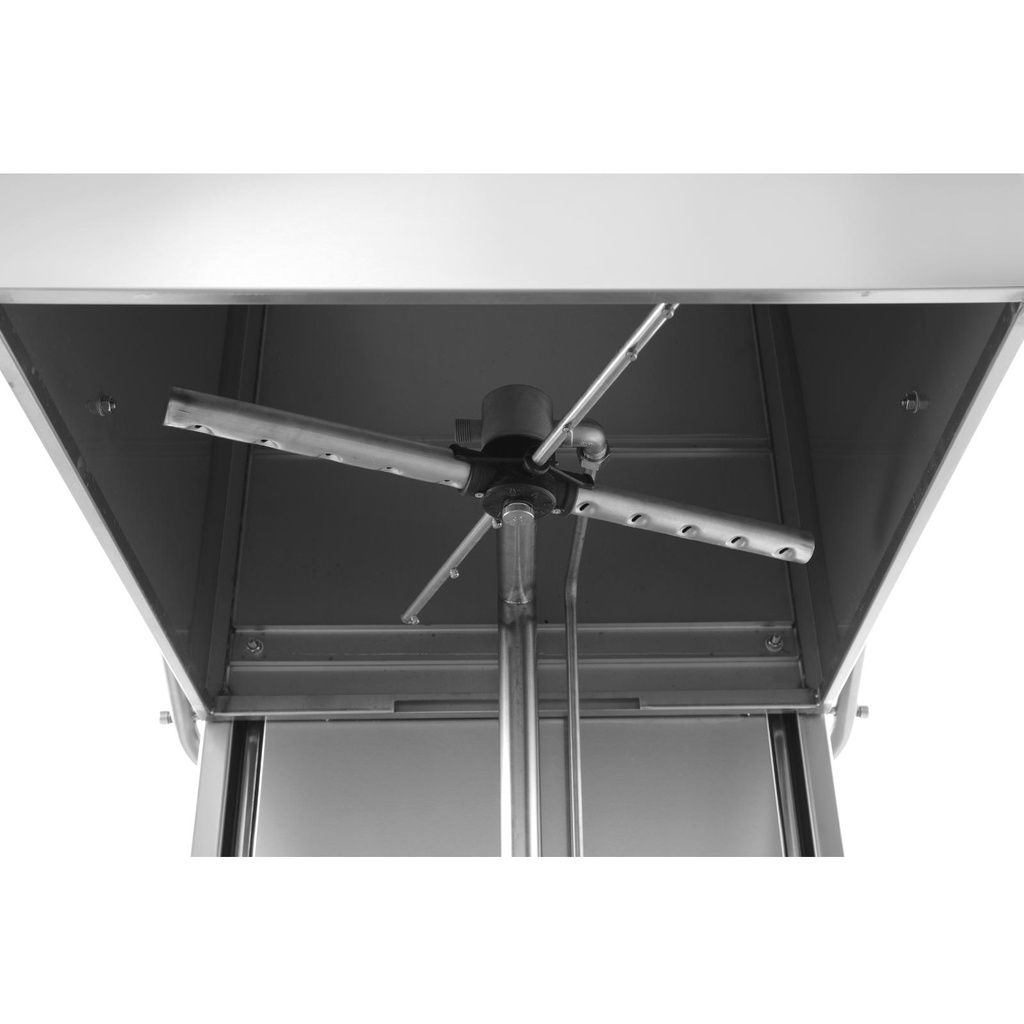

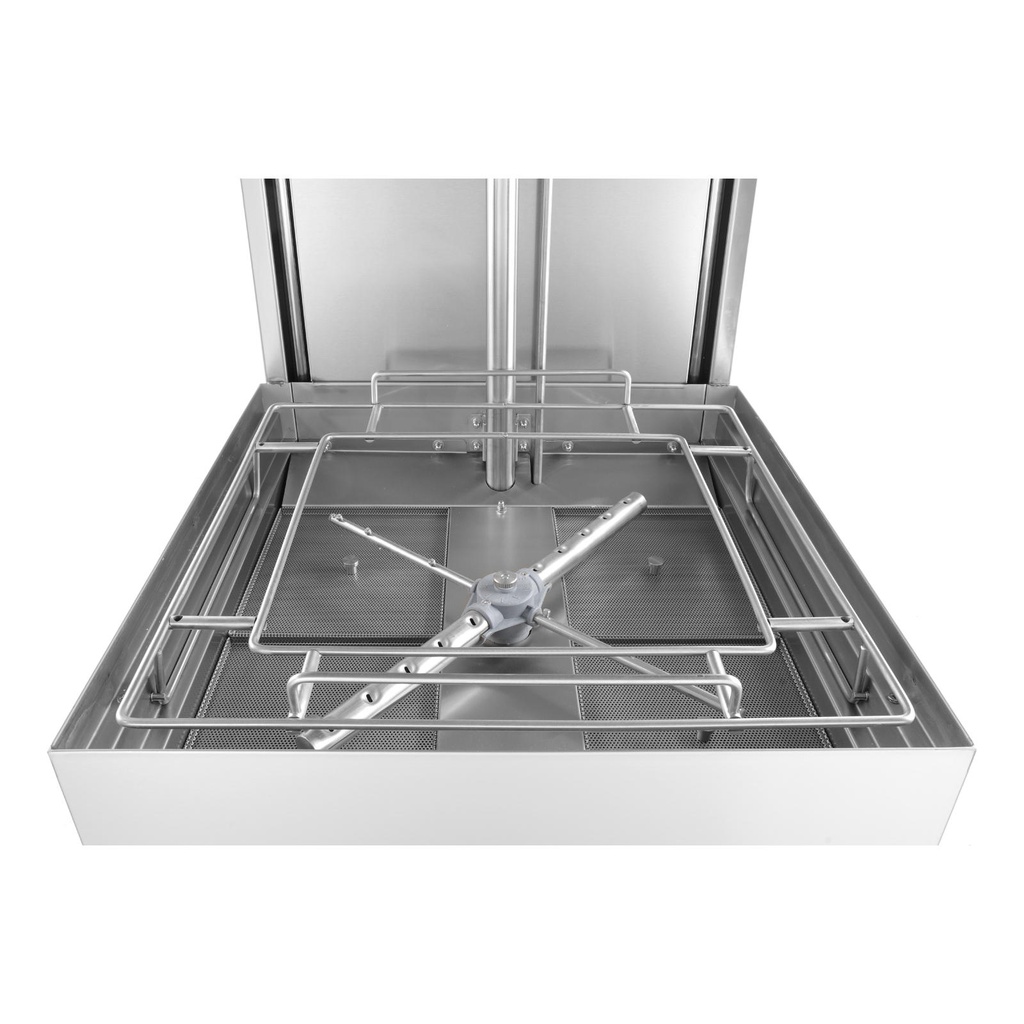

• - separate stainless steel washing and rinsing arms (bottom and top),
• - surface filters above the water level in the tub (4 pcs.),
• - additional screen in front of the pump inlet,
• - detergent dispenser,
• - lifting of the hood facilitated by built-in springs,
• - washing cycle of 120 seconds,
• - water consumption per 1 washing cycle: 2-2,5 l (depending on the water pressure in the network),
• - temp. of washing water 62 deg. C,
• - rinsing water temp. 85 deg. C,
• - analog water thermometer separately in the boiler and bath,

• - Voltage - 400 V
• - Power - 8600 W
• - Housing material - AISI 304 stainless steel
• - Washing arm material - Stainless steel
• - Rinsing arm material - Stainless steel
• - Length of 1 washing cycle - 120 s
• - Capacity - 30 baskets / hr.
• - Water consumption (1 cycle) - 2 - 2.5 L
• - Washing water temperature - 62 deg C
• - Rinsing water temperature - 85 deg. C
• - Boiler (capacity / power) - 7.4 L / 7.5 kW
• - Bathtub (capacity / power) - 68 L / 6.0 kW
• - Pump power - 1.5 hp
• - Safety thermostat (boiler) - 105 deg C.
• - Safety thermostat (tub) - 99 deg. C
• - Leakage factor of the pump - IP 44
• - Dimensions (DxSxW) - 750 x 880 x 1390 / 1830 mm
• - Weight - 111 kg

• - hood dishwasher fast and economical basket 50x50cm 400V,

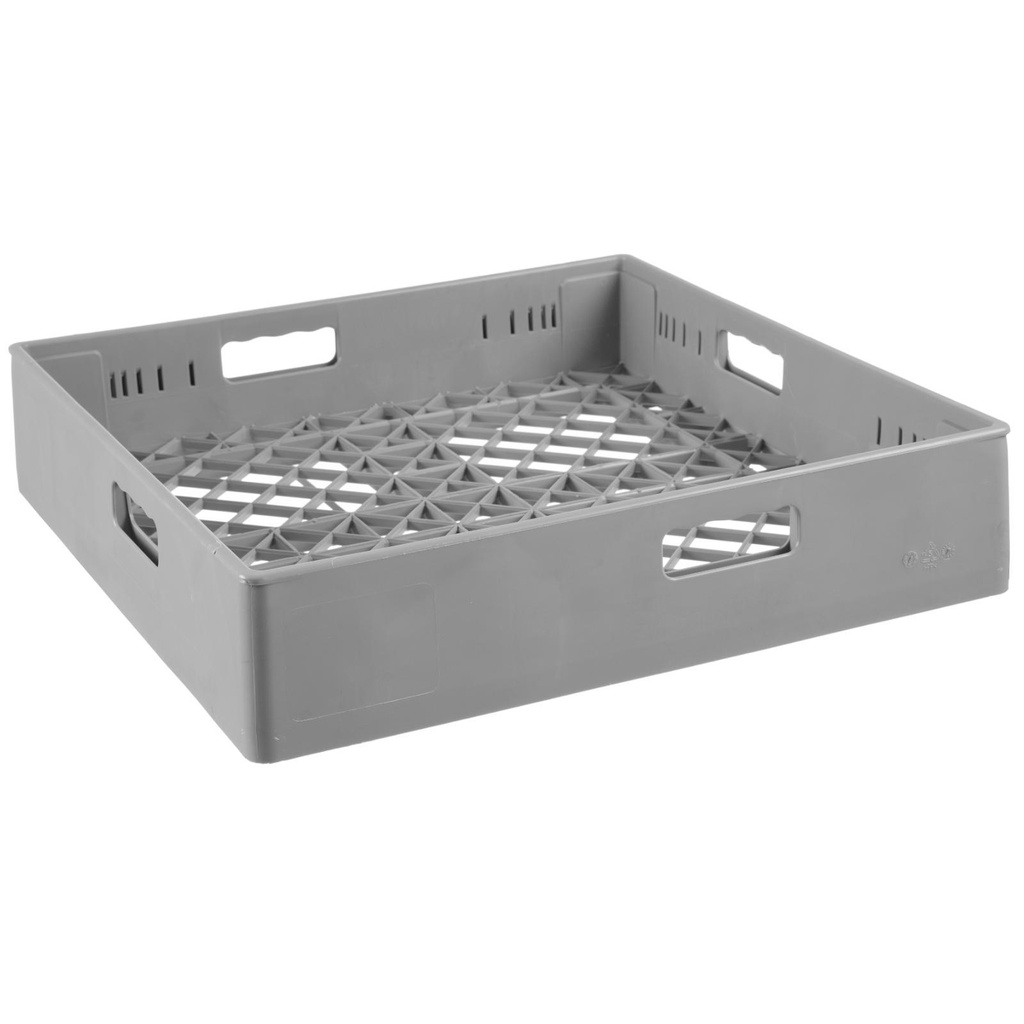

• - universal basket for glassware (DxSxW) 500x500x105 mm,

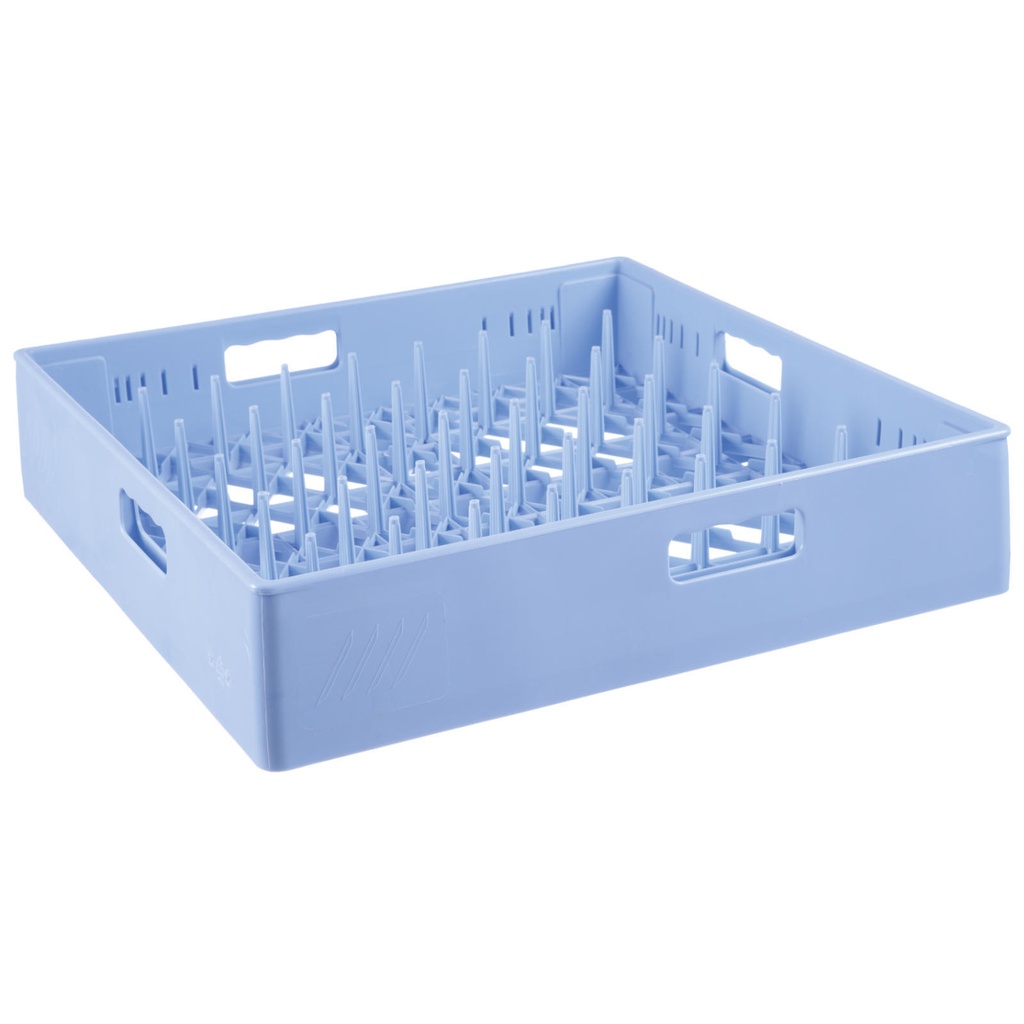

• - basket with pins for deep and shallow plates in 5x8 pcs arrangement (DxSxW): 500x500x105 mm,

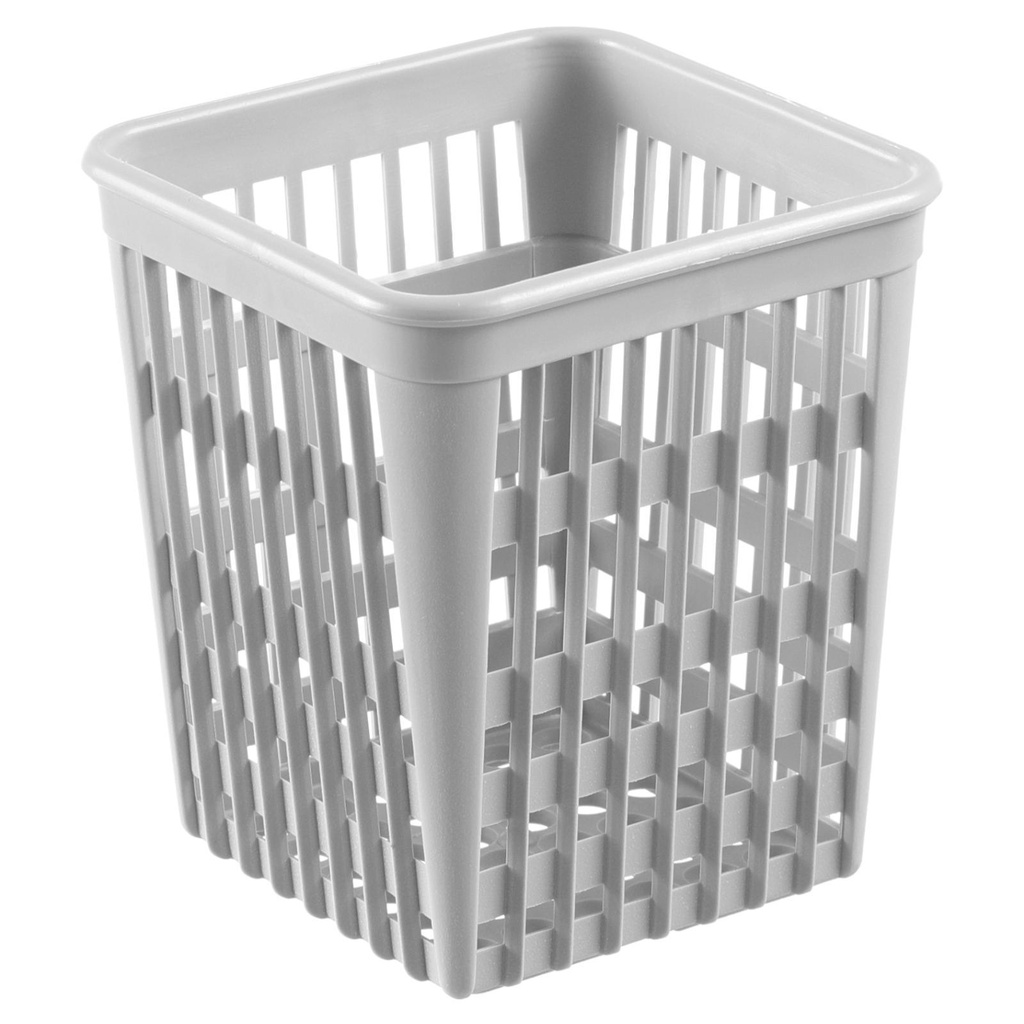

• - cutlery basket (DxSxW) 110x110x130 mm,
• - detergent dispenser,
• - 1.5 m long water supply hose (to a height of 350-400 mm),
• - drain hose,
• - electric cable without plug,
• - rinse aid dispenser,
• - Adaptation for installation of detergent dispenser (screw in the back wall of the tub),
• - adjustable stainless steel feet (100-150 mm).
