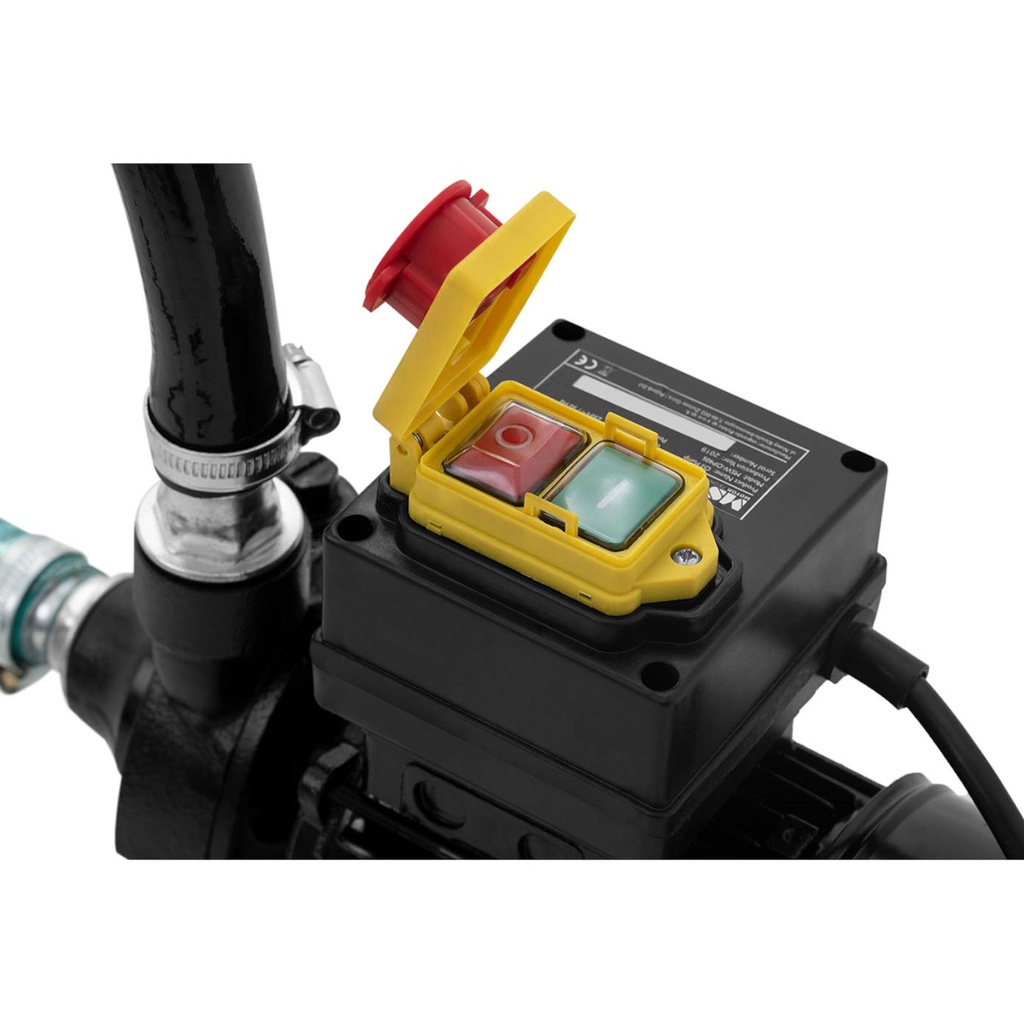

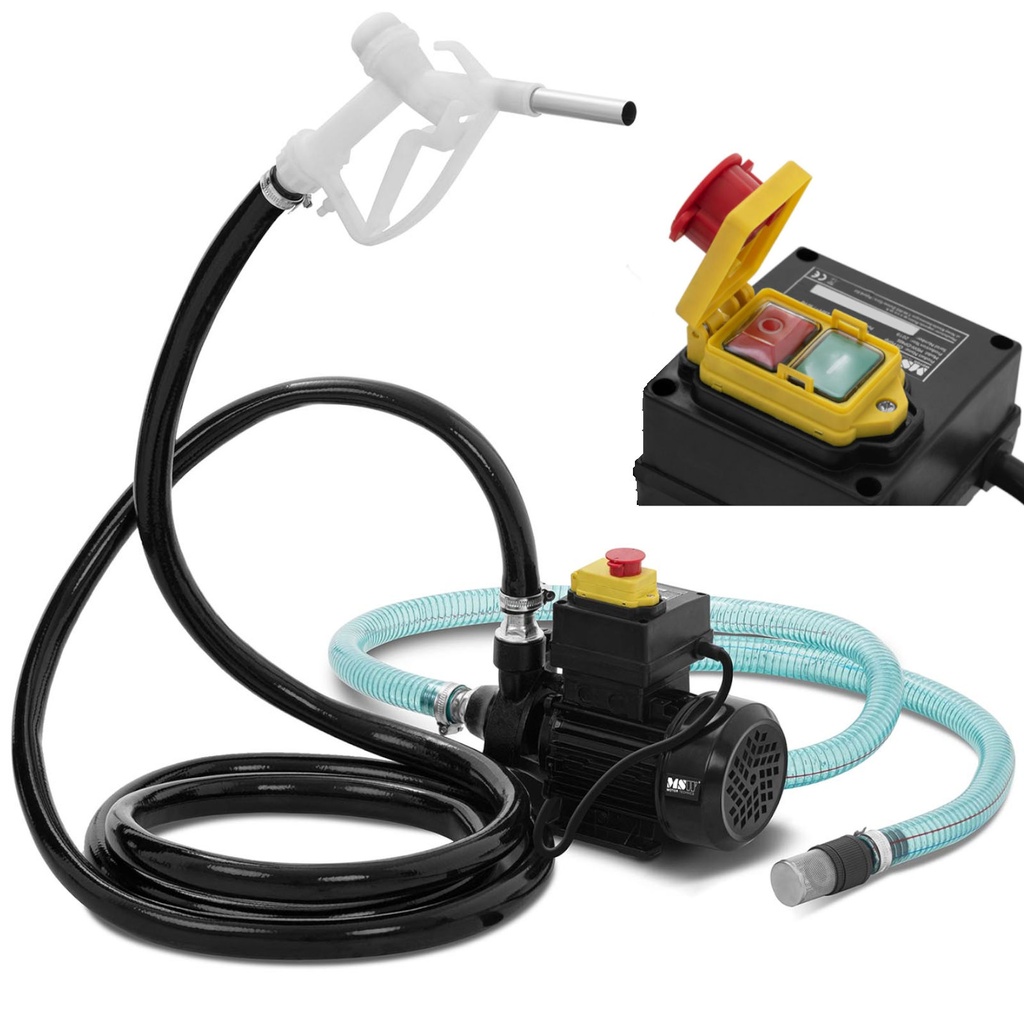

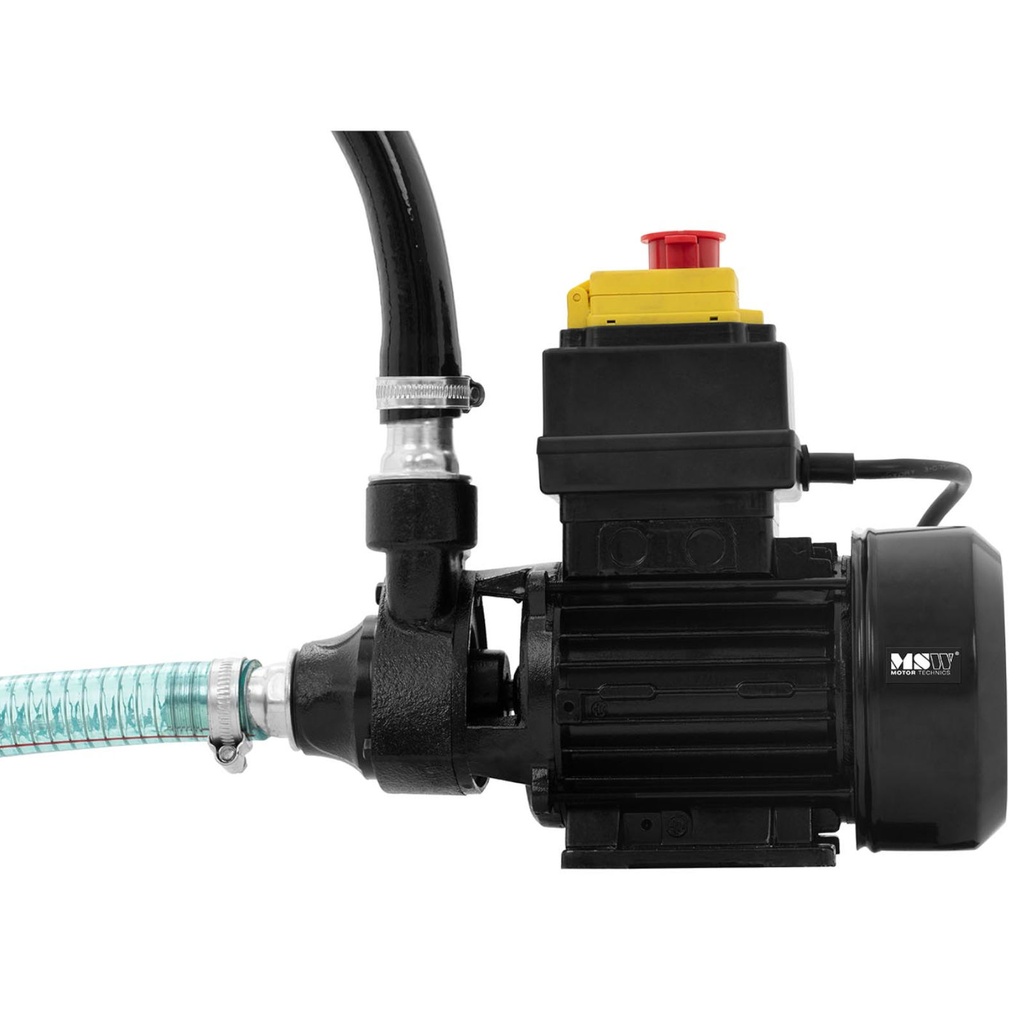

Electric diesel fuel distributor pump KIT IP55 230 V 370 W 40 l/min

Manufacturer code: 10060823

Professional MSW brand fuel pump designed for pumping oil, diesel, biodiesel and kerosene (not for gasoline!). The distributor is great for refueling vehicles and agricultural machinery, making it suitable for workshops, garages and gas stations.

The device has a 370 W and 3500 rpm motor, it allows pumping at a speed of 40 l/min with a suction height of 5 m and a pressure of 3 bar. A by-pass valve prevents overloading and equalizes the pressure when, for example, the hose is kinked. The unit can be mounted to the work surface thanks to pre-drilled holes. The 2.1-meter (suction) and 4.2-meter (discharge) hoses allow convenient maneuvering. A nozzle is also included. The fuel line is equipped with a mesh that filters debris. The pump can run dry for an extended period of time. The device is safe to use, CE certified and IP55 rated.


Product features:

• - Performance - 370 watts of power, 3500 rpm, flow rate of 40 l/min at a suction height of 5m and pressure of 3 bar,
• - Set - suction hose, outlet hose and nozzle,
• - Precision - filter mesh protects against dirt,
• - By-pass - protection against overheating,
• - Safety - CE certificate and IP55 protection.

• - Model - MSW-OP40S
• - Part number - 10060823
• - Article condition - New
• - Material - Iron
• - Speed - 3500 rpm
• - Voltage - 230 V
• - Power - 370 W
• - Flow rate - 40 l/min
• - Pressure - 3 bar
• - Power cord - 1.9 m (includes connection)
• - Suction line length - 2.1 m
• - Suction line diameter - 20 mm
• - Length of the outlet cable - 4.2 m
• - Diameter of the outlet cable - 20 mm
• - Safety class - IP55
• - Maximum lift height - 10 m
• - Suction - 5 m
• - Operating instructions - Yes
• - Dimensions (DxSxW) - 31.5 x 12 x 23.5 cm
• - Weight - 8.3 kg
• - Shipping dimensions - 35 x 32.5 x 36 cm
• - Shipping weight - 9.6 kg

• - Oil pump
• - Suction hose - 2.1 m
• - Outlet hose - 4.2 m

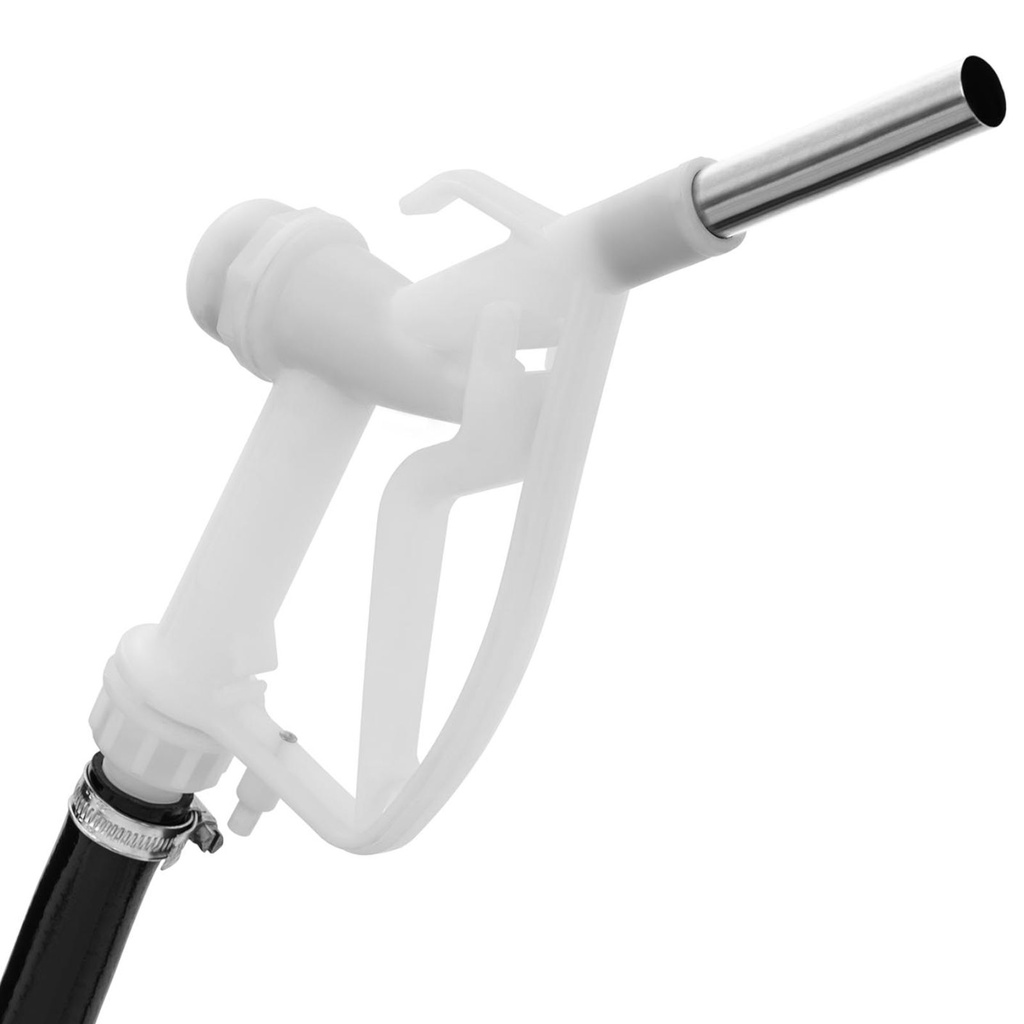

• - Nozzle
• - Instruction manual EN
