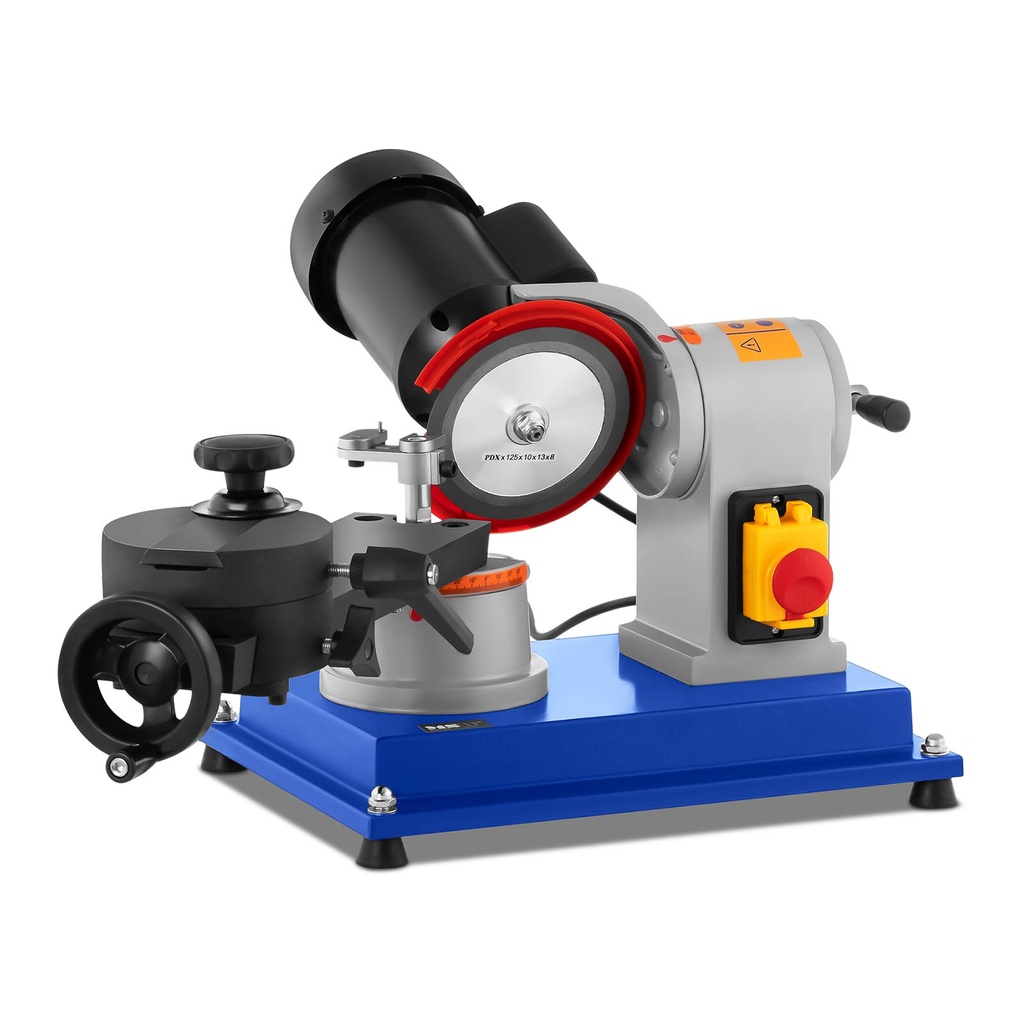

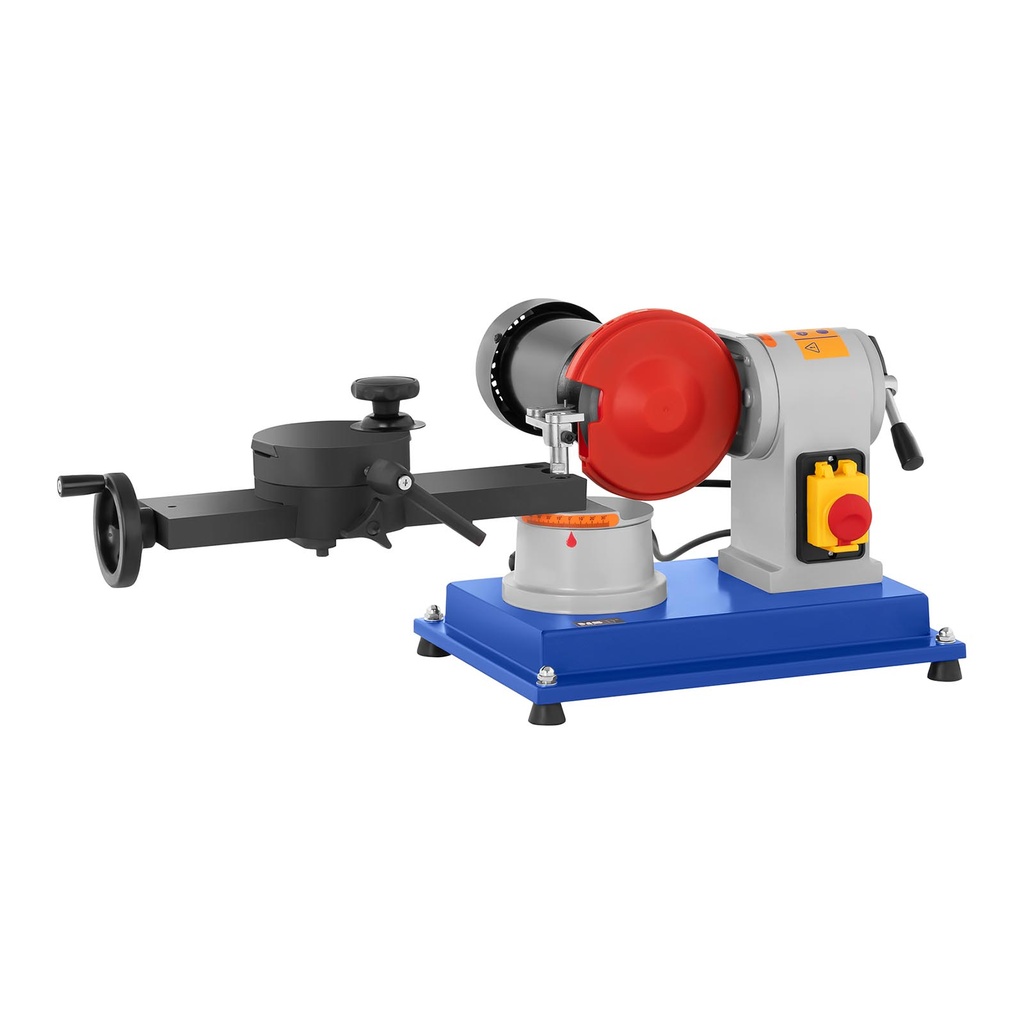

Electric sharpener for circular saws 80-700 mm 180 W.

Manufacturer Number: MSW 10060871

The electric circular saw sharpener from the German brand MSW is a multi-purpose device designed for carpentry and maintenance shops, as well as sawmills and various factories. The MSW-CBS-250 model makes it possible to sharpen almost any kind of fork saw blades in all popular sizes.

The performance of the sharpener is due to a 180 W motor that accelerates the diamond wheel (125 mm) to 2800 rpm, which ensures efficient and fast sharpening of discs of any alloys. In addition, the device can also be used to grind objects made of materials other than metal, such as wood or plastic.

The versatility of the tool is also influenced by the ability to sharpen discs with diameters from 80 to 700 mm, as well as the included adapters that allow mounting discs with holes of 20, 22, 25 and 30 mm in diameter. Along with the adapters, the set also includes a PH2 screwdriver, a 12/14 wrench and mounting accessories.

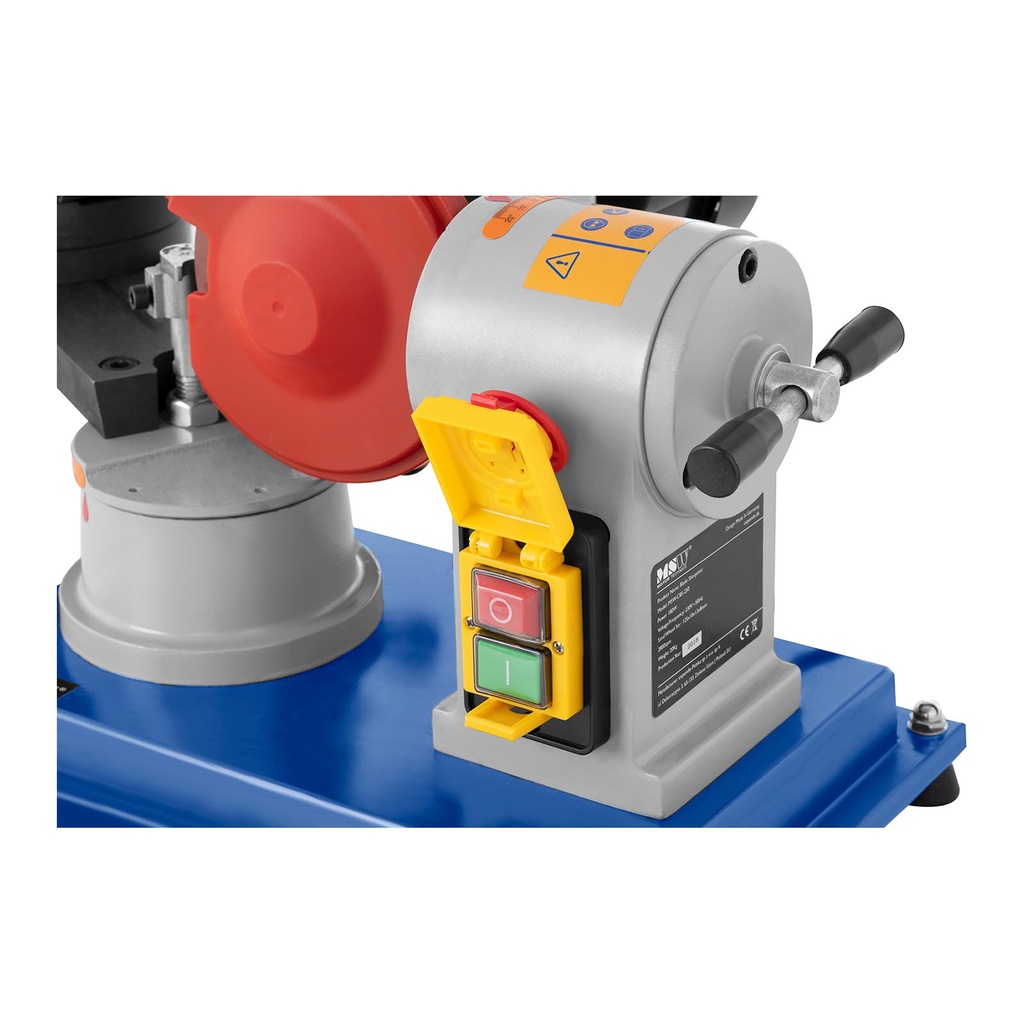

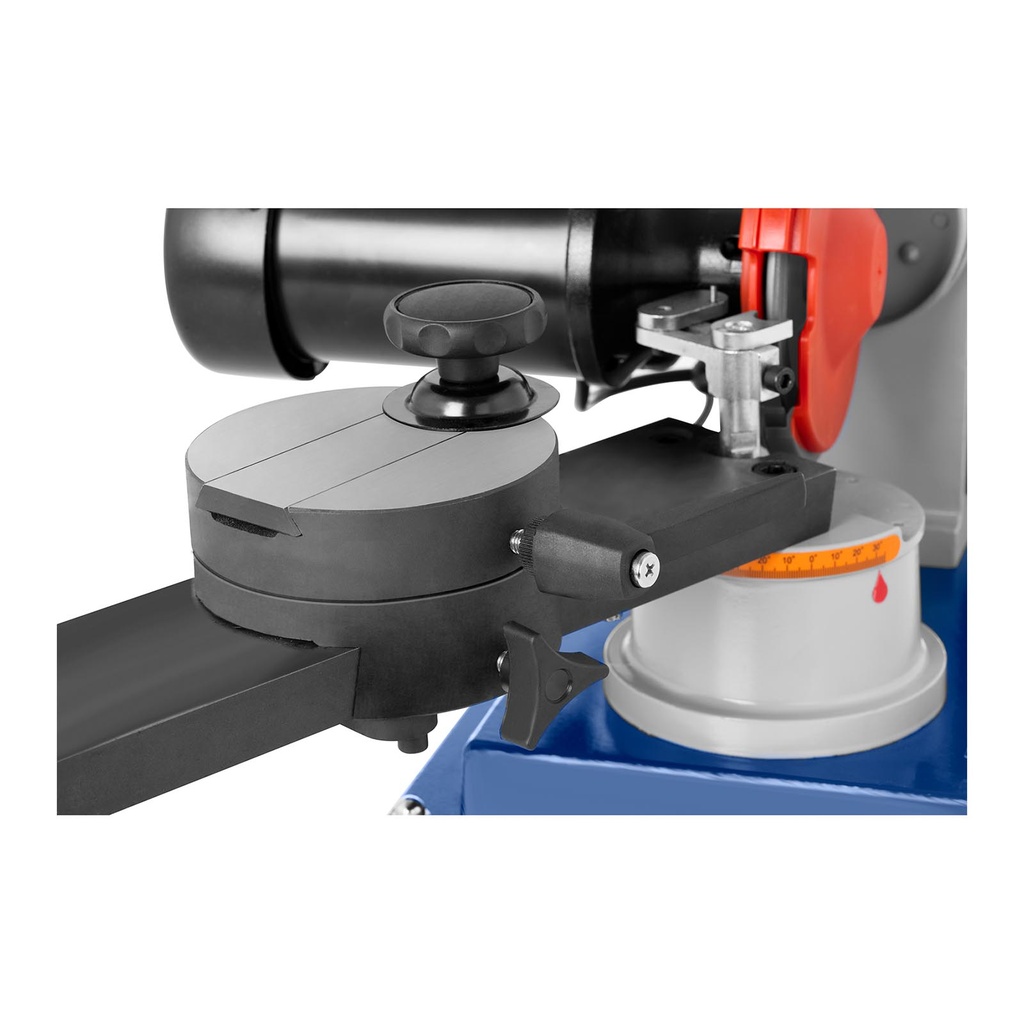

To increase the precision of working with the sharpener, it allows you to adjust the angle of the working table (within 35° to the left and 45° to the right), the angle of sharpening (can be adjusted within ±20) and the disk (which moves forward and backward). It also affects the comfort of working with the device. By the way, so do the anti-slip rubber feet, the guard that prevents accidental touching of the grinding wheel, the KJD switch and a special system that prevents the sharpener from accidentally turning on when the plug is inserted into the socket (with the switch in the ON position).

Product features:

• - Performance - the 180W motor accelerates the diamond grinding wheel up to 2,800 rpm,
• - Multi-tasking - the device is suitable for working with metal, wood or plastics,
• - Versatility - it is possible to sharpen discs with diameters from 80 to 700 mm and holes of 20, 22, 25, 30 mm,
• - Precision - adjustment of the angle of the working table (35° to the left and 45° to the right), the angle of sharpening (within ±20) and the position of the disk on which the disc is placed,
• - Safety - anti-slip rubber feet, grinding wheel guard, KJD switch and special system to prevent accidental activation of the sharpener,
• - Durability - made of powder-coated steel.

• - Model - MSW-CBS-250
• - Part number - 10060871
• - Article condition - New
• - Rated power - 180 W
• - Speed of the grinding wheel - 2800 rpm
• - Grinding wheel dimensions - PDX 125 x 10 x 32 x 8 mm
• - Sharpening angle range - ±20°
• - Working table angle adjustment range - 35° left, 45° right
• - Diameter of the sharpened disc - 80-700 mm
• - Adapters for discs - diameter 20, 22, 25, 30 mm
• - Protection class - I
• - Degree of protection IP - IP20
• - Foot material - Rubber
• - Housing material - Powder-coated steel
• - Noise level - 78 dB
• - Dimensions (DxSxW) - 69.7 x 38.5 x 29 cm
• - Weight - 19.85 kg
• - Shipping dimensions (DxSxW) - 44 x 43.5 x 34.5 cm
• - Shipping weight - 21.45 kg

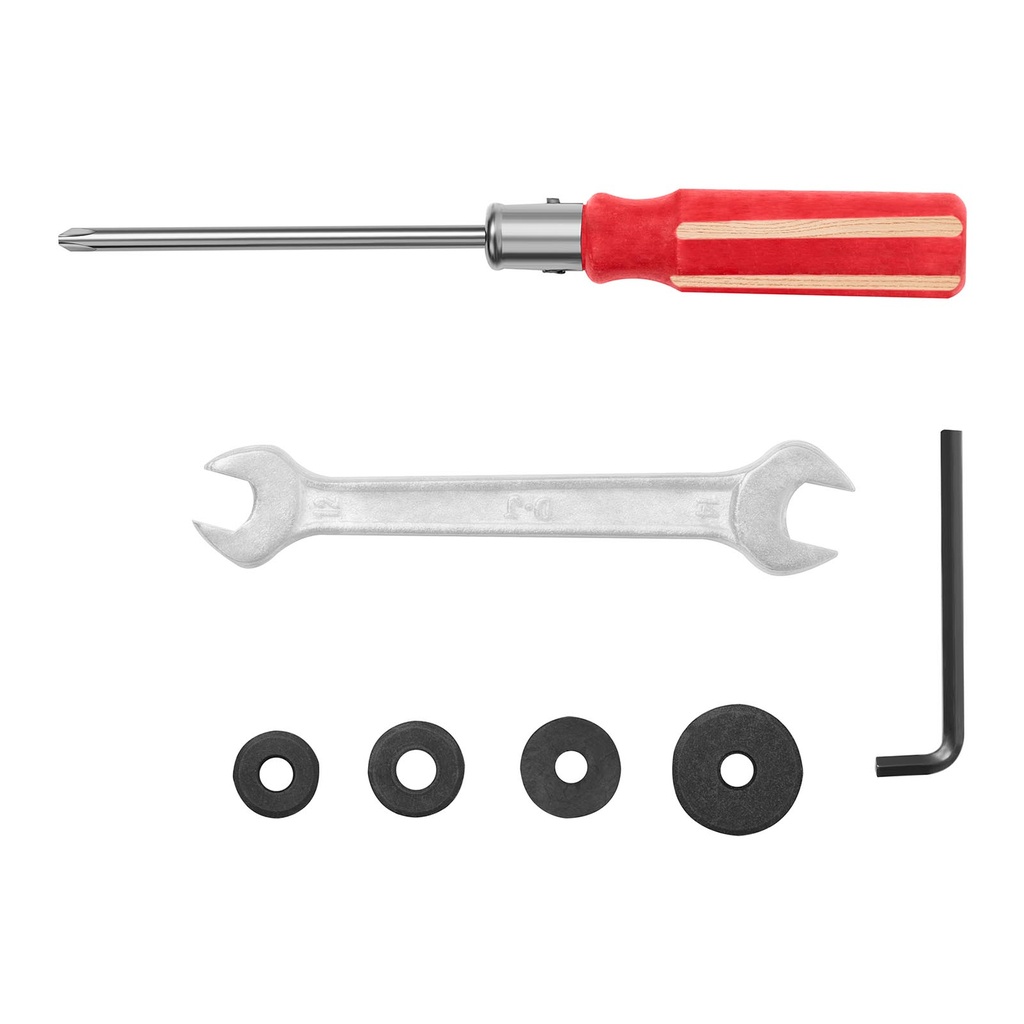

Included:

• - Electric circular saw sharpener,
• - Adapters for discs (4 pcs.), diam. 20, 22, 25, 30 mm,
• - PH2 screwdriver,
• - Wrench 12/14,
• - Assembly parts,
• - EN manual.
