Manufacturer Number: MSW 10060939

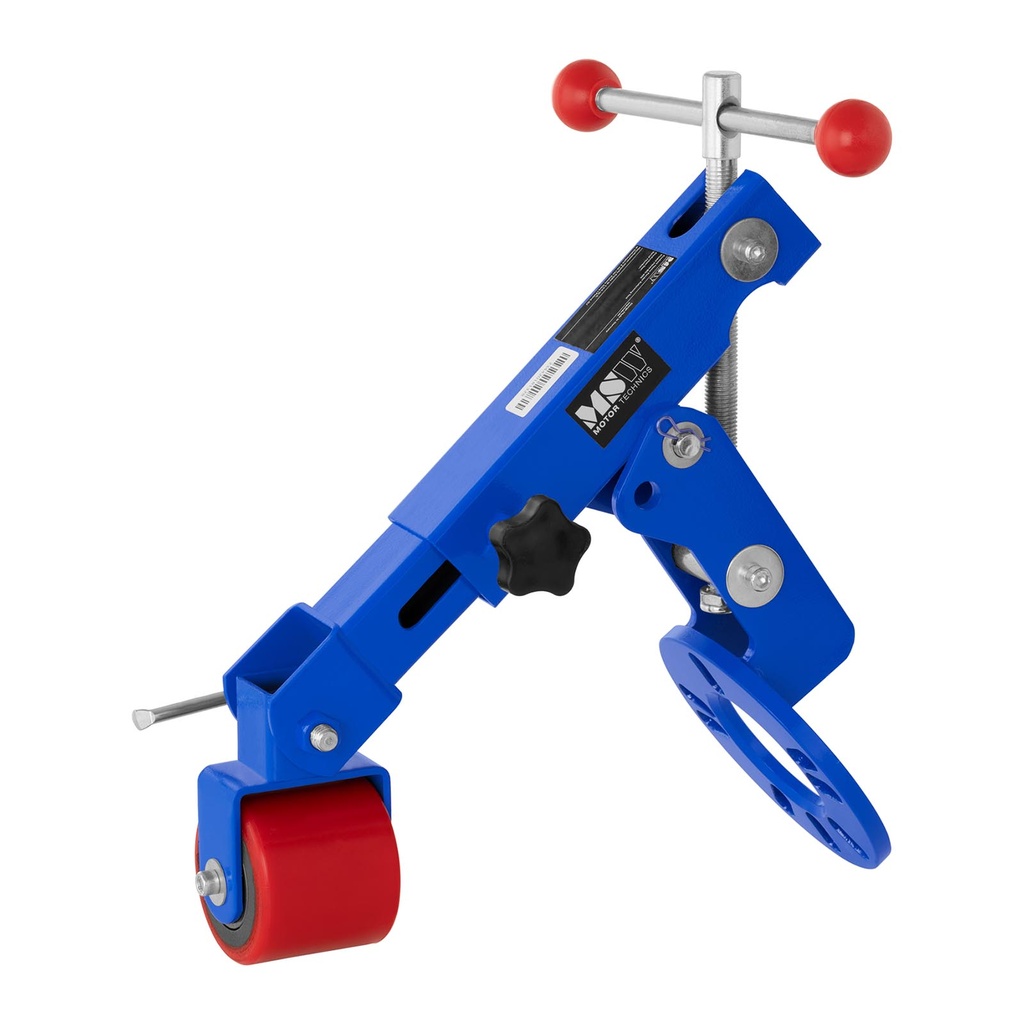

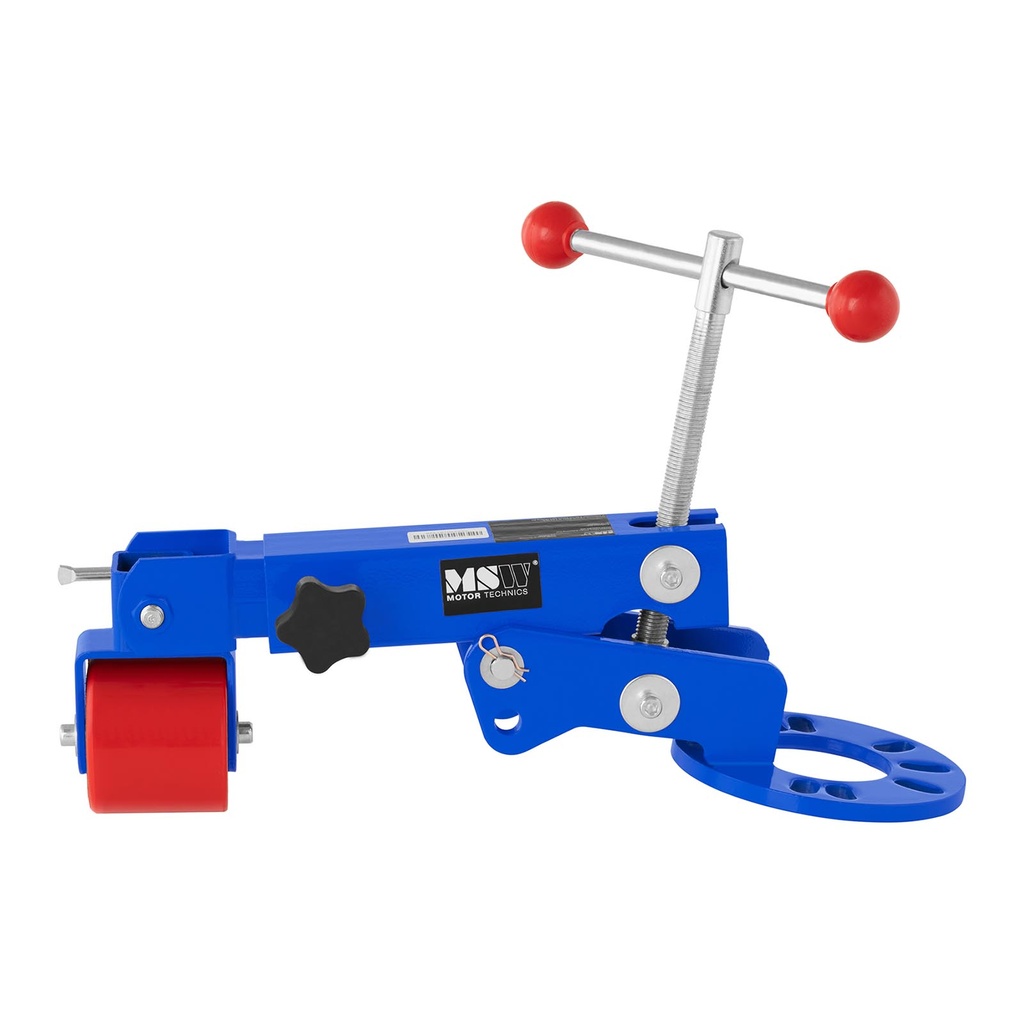

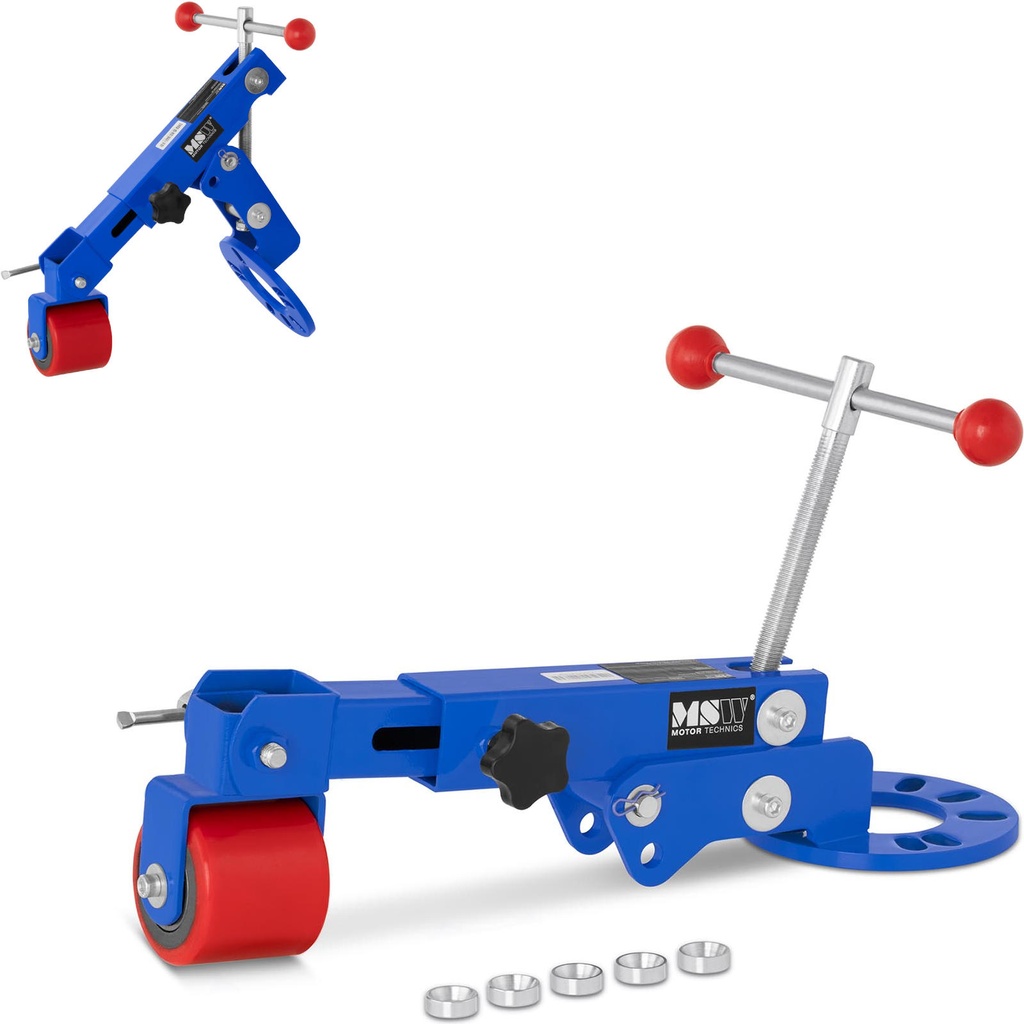

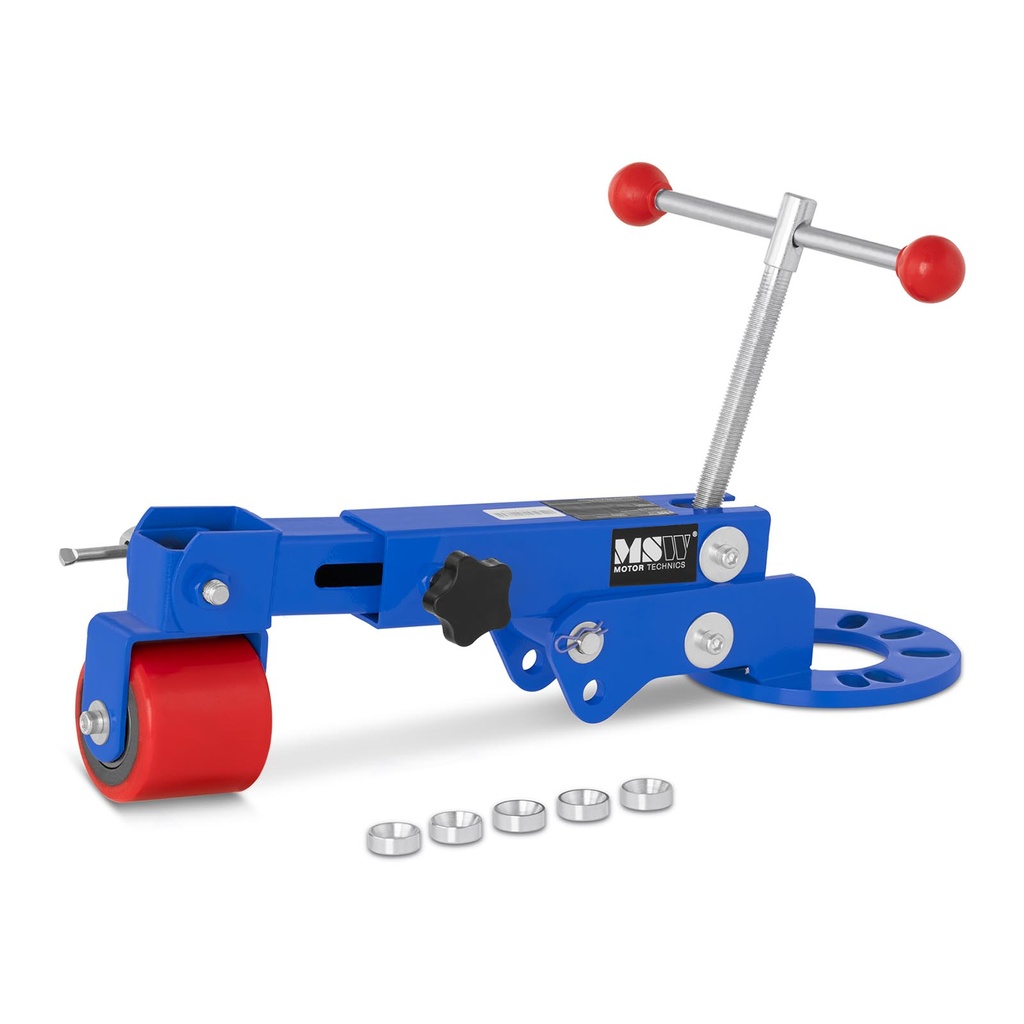

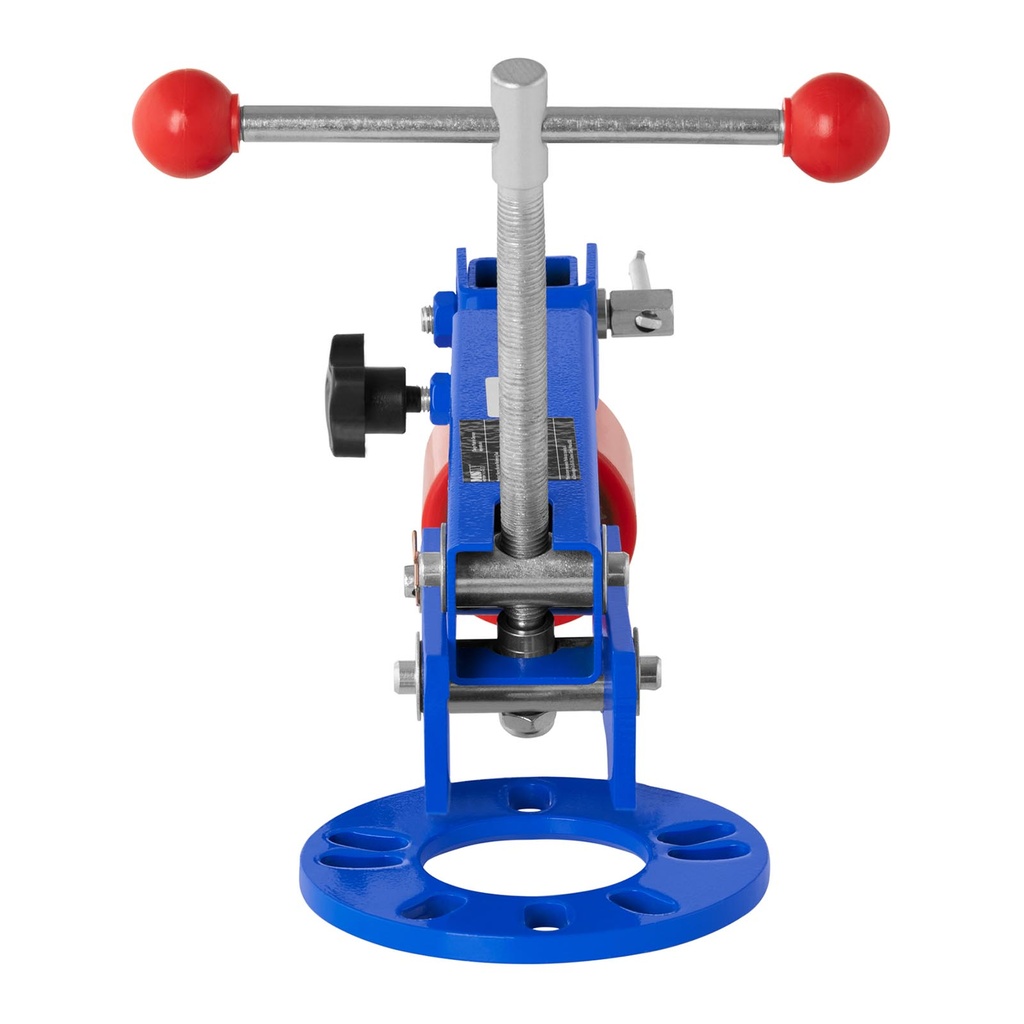

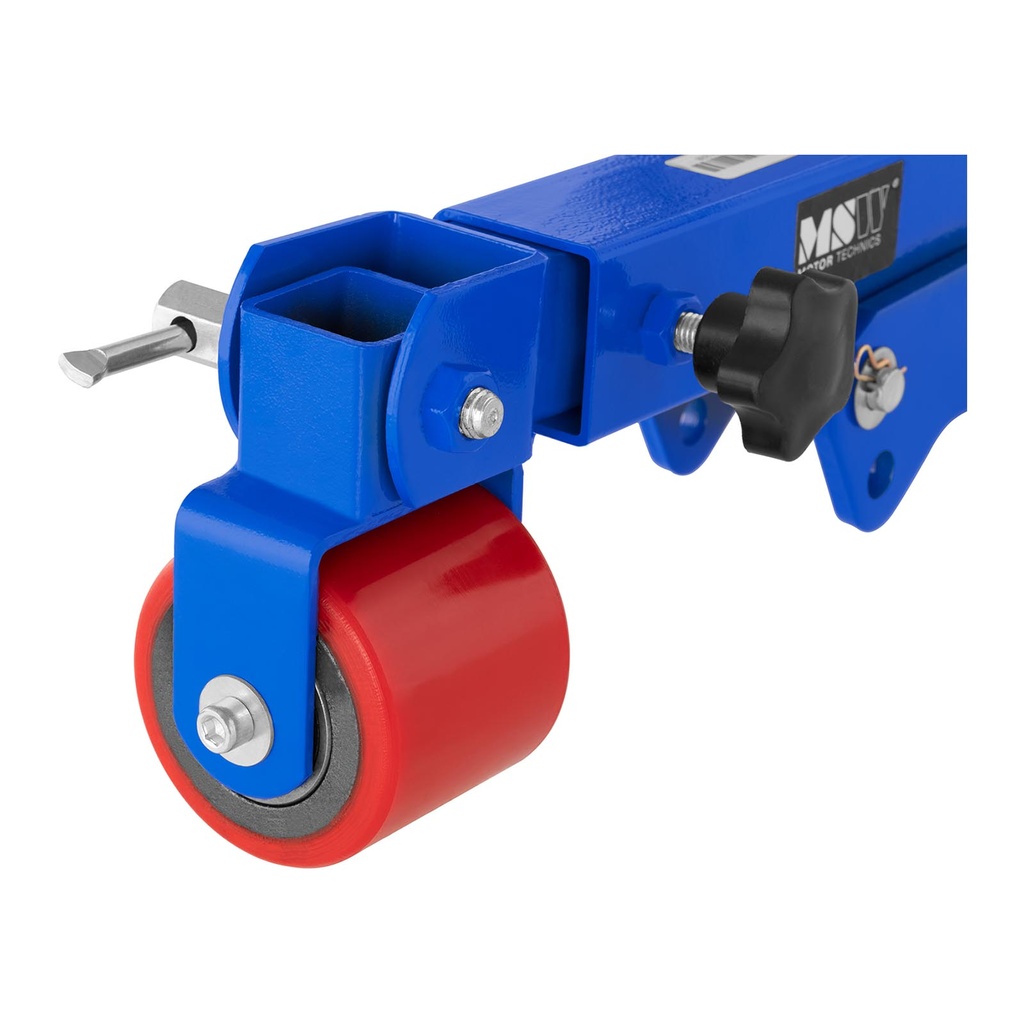

The MSW brand edge repair and wheel arch widening roller is a versatile tool that will prove useful in any body shop and car service. The possibility of mounting the device in place of the wheel is responsible for the convenience and stability of work . The MSW-BG-655 model has been adapted for hubs with 4 or 5 screws with a spacing of 90-120 mm, so it will find application in all popular vehicles. The durability of the device is due to the use of proven solutions and high-quality stainless steel. This material is characterized by high resistance to corrosion and mechanical damage. A wide range of adjustment allows you to match the device to the work currently being performed. The built-in lever allows you to easily adjust the force of pressure, and the fender edge forming roller moves smoothly within a range of 180°. In addition, the boom arm can be shortened and lengthened within a range of 52-66 cm using a precision dial.
Product features:
- - Versatility - will work well on most cars and vans,
- - Durability - high quality of materials and workmanship ensures the reliability of the device,
- - Precision - adjusting the length of the boom arm and the force of pressure,
- - Convenience - lever and knobs make it easy to adjust the design,
- - Stability - mounting with 4 or 5 screws.
Technical parameters:
- - Model - MSW-BG-655
- - Part number - 10060939
- - Article condition - New
- - Inner diameter - 74 mm
- - Outer diameter - 150 mm
- - Maximum length - 570 mm
- - Minimum length - 370 mm
- - Adjustment range - 140 mm
- - Instruction manual - Yes
- - Dimensions (DxSxW) - 58.5 x 23.5 x 27 cm
- - Weight - 6.5 kg
- - Shipping dimensions (DxSxW) - 45 x 28.5 x 15 cm
- - Shipping weight - 7.05 kg
Included:
- - Wheel arch roller
- - Adjustment screw M10x60
- - Pivot arm 50x50x230
- - Locking screw M12x70
- - Lock nut M12
- - Socket nut M12
- - Screw M8x16 - 2 pcs.
- - Propeller screw M16x1.5x250
- - Instruction manual EN
