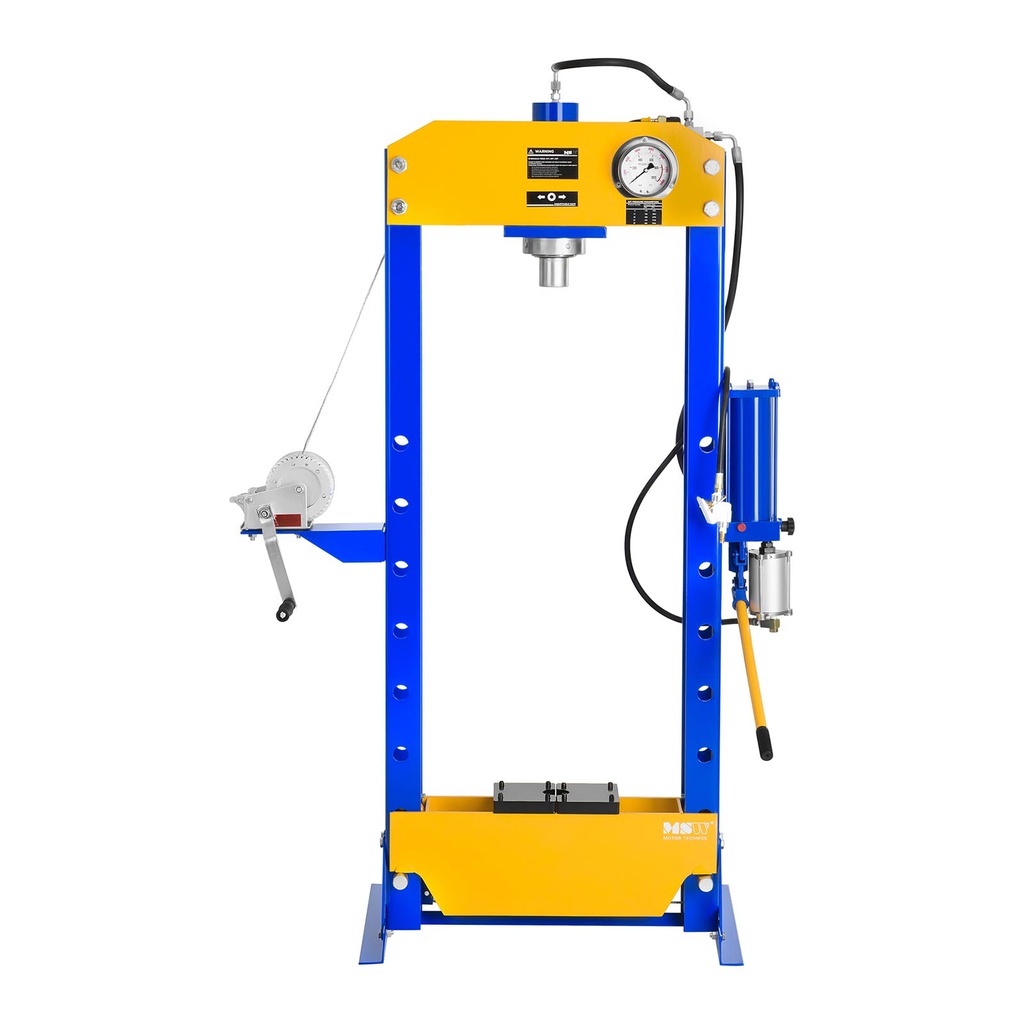

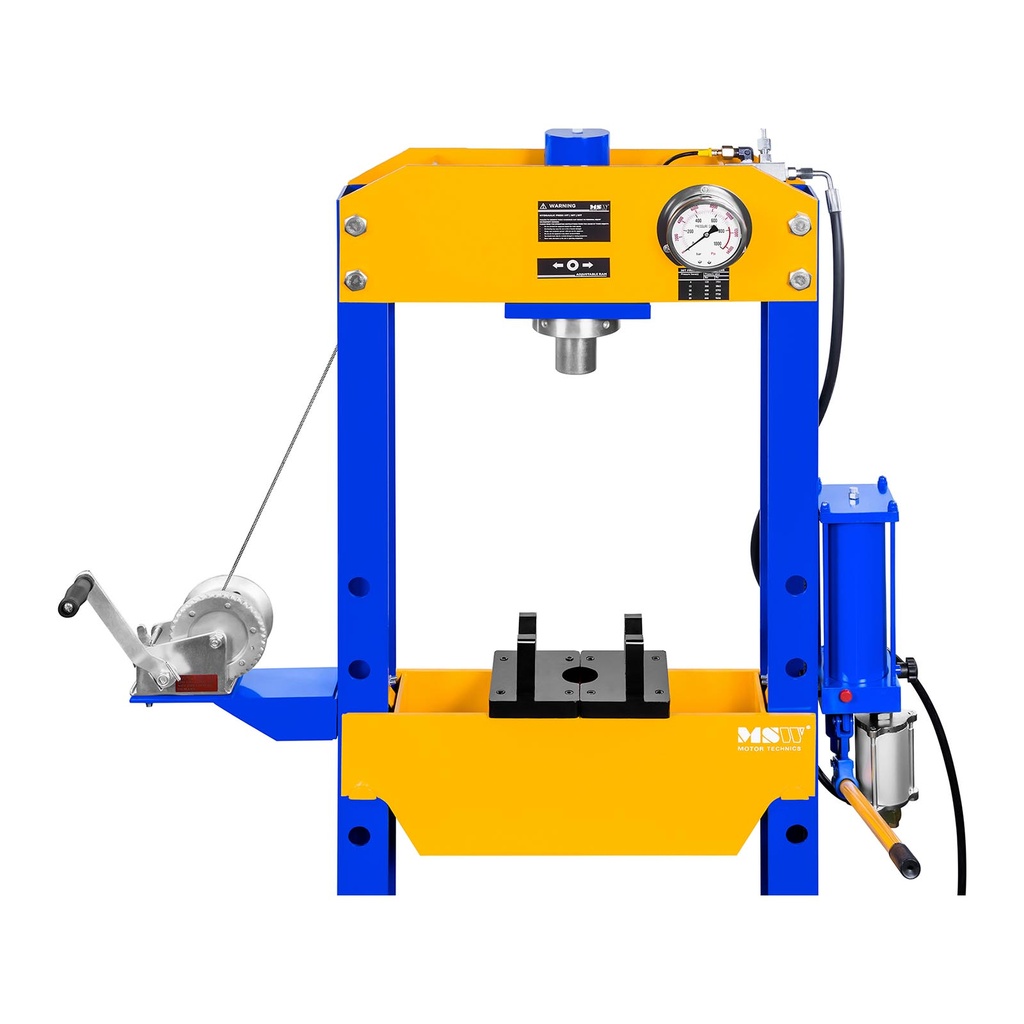

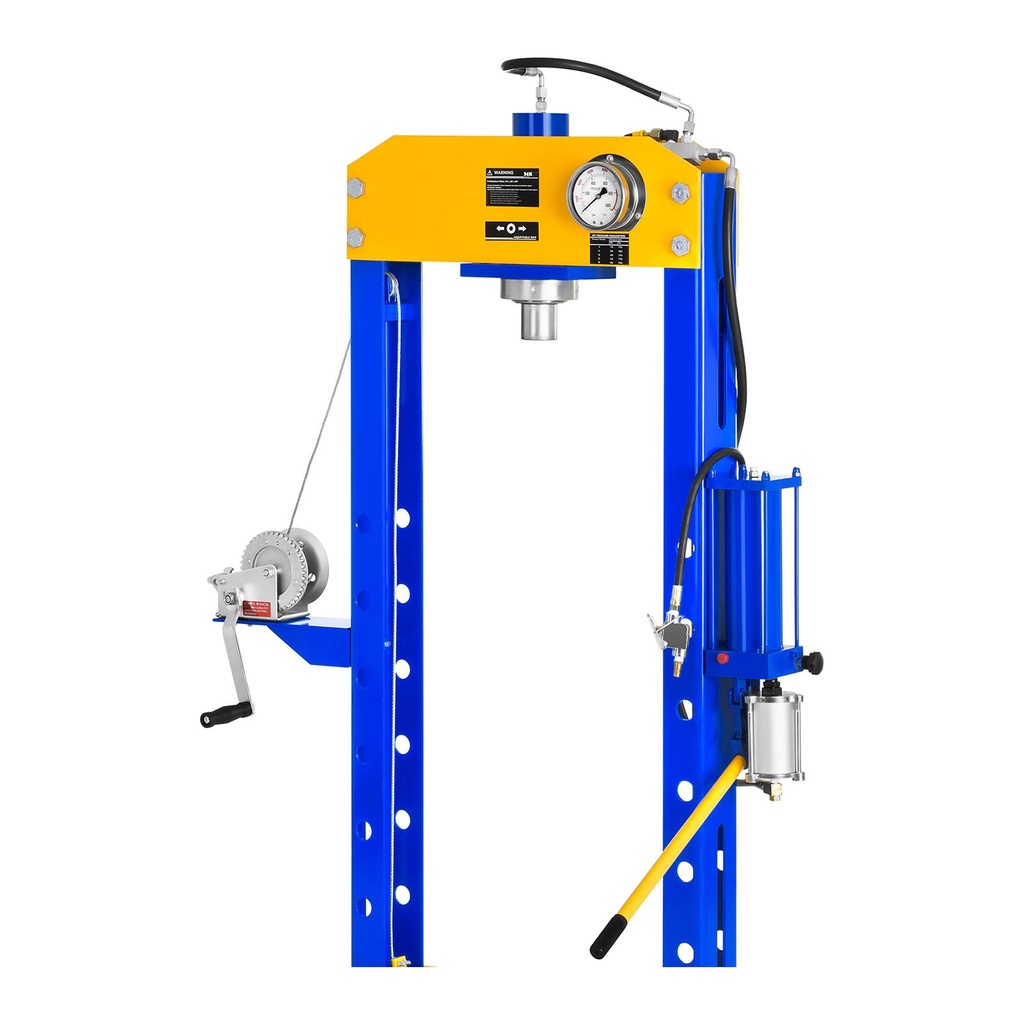

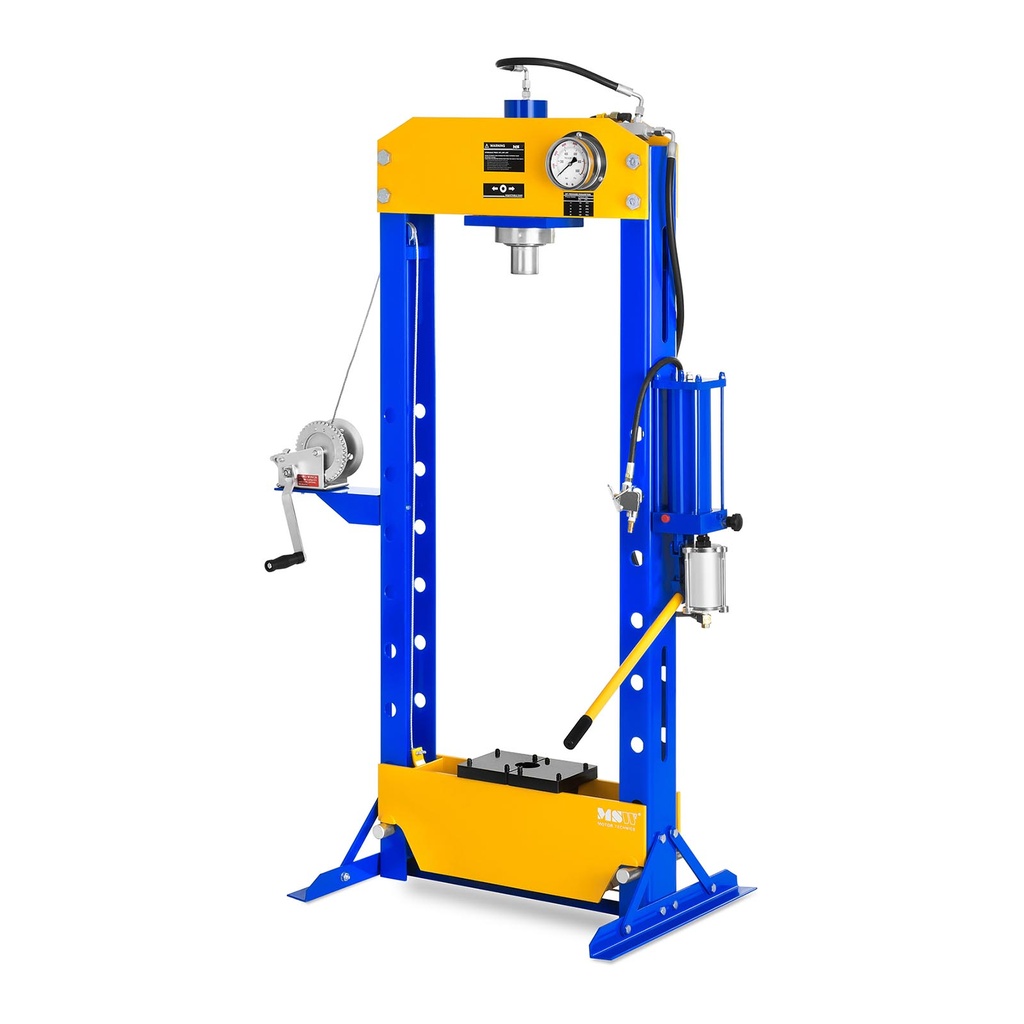

Hydraulic and pneumatic workshop press 50T 624 bar MSW WP-50T-P

Manufacturer name: MSW-WP-50T

Hydraulic-pneumatic press with a maximum pressure of 50 tonsby MSW Motor Technics is a device that will find its use in industrial plants, workshops, garages, service stores and automotive stores. The equipment will be perfect for shaping, bending, straightening hard metal, and will also allow easy assembly and disassembly of gears, bearings, hubs or bushings. Robust, fully welded construction provides the device with high durability. The modern technical solutions used by the manufacturer make the work with the MSW-WP-50T-P model very efficient. Pneumatic control increases the speed and efficiency of operations, while minimizing operator fatigue. Hydraulic control provides greater precision and high sensitivity.

Product features:
- High piston force
- Two control methods
- Fully welded construction
- Adjustable working height
- Horizontal piston travel

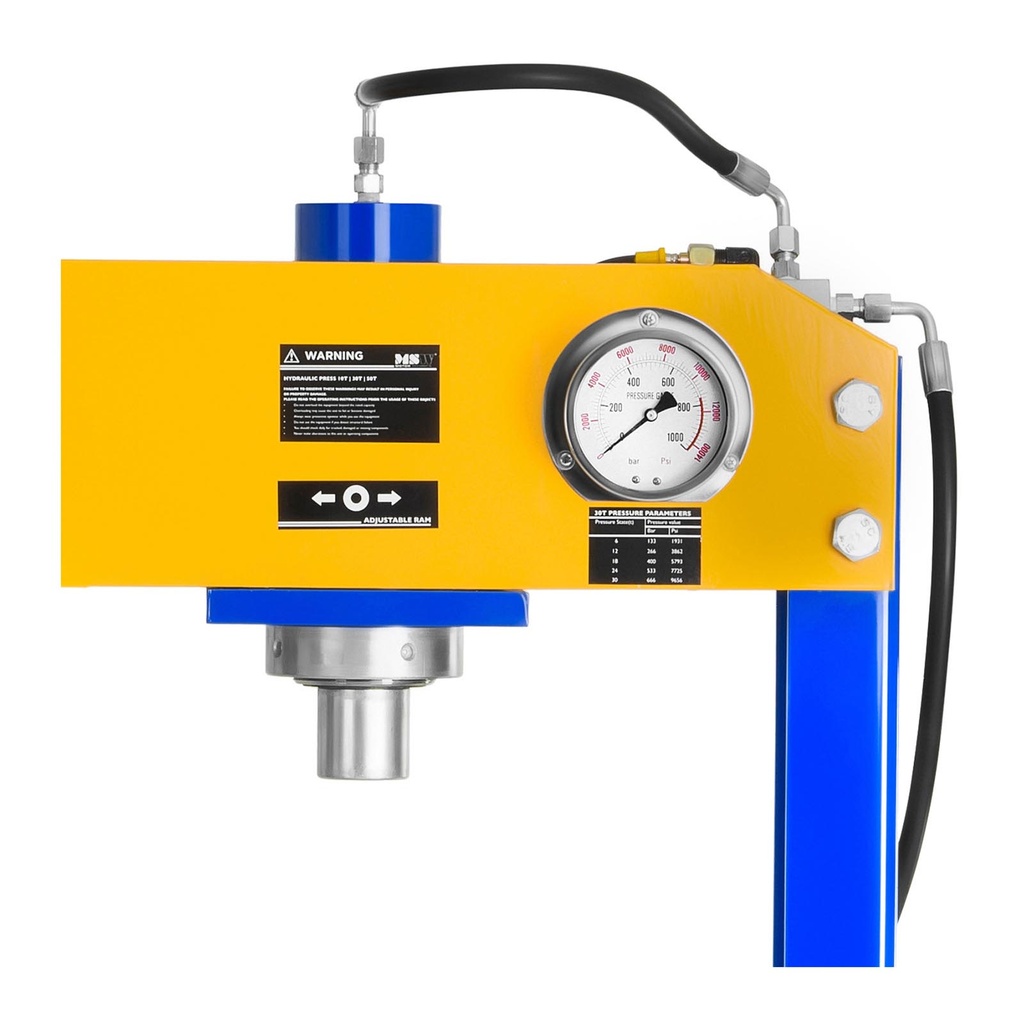

- Precise pressure gauge
- For industrial and workshop work

Technical specifications:

• - Model - MSW-WP-50T-P
• - Part number - 6303
• - Article condition - New
• - Maximum working force - 50 t
• - Maximum working pressure - 624 bar (9052 psi)
• - Air pressure - 7.5 - 8.5 bar (0.75 - 0.85 Mpa)
• - Working height - 60 - 1100 mm (7 levels)
• - Working table width - 615 mm
• - Piston stroke - 180 mm
• - Horizontal displacement of the piston - 280 mm
• - Dimensions (DxSxW) - 96.00 x 140.00 x 190.00 cm
• - Weight - 243.00 kg
• - Shipping dimensions (DxSxW) - 193.00 x 89.00 x 38.00 cm
• - Shipping weight - 265.00 kg
