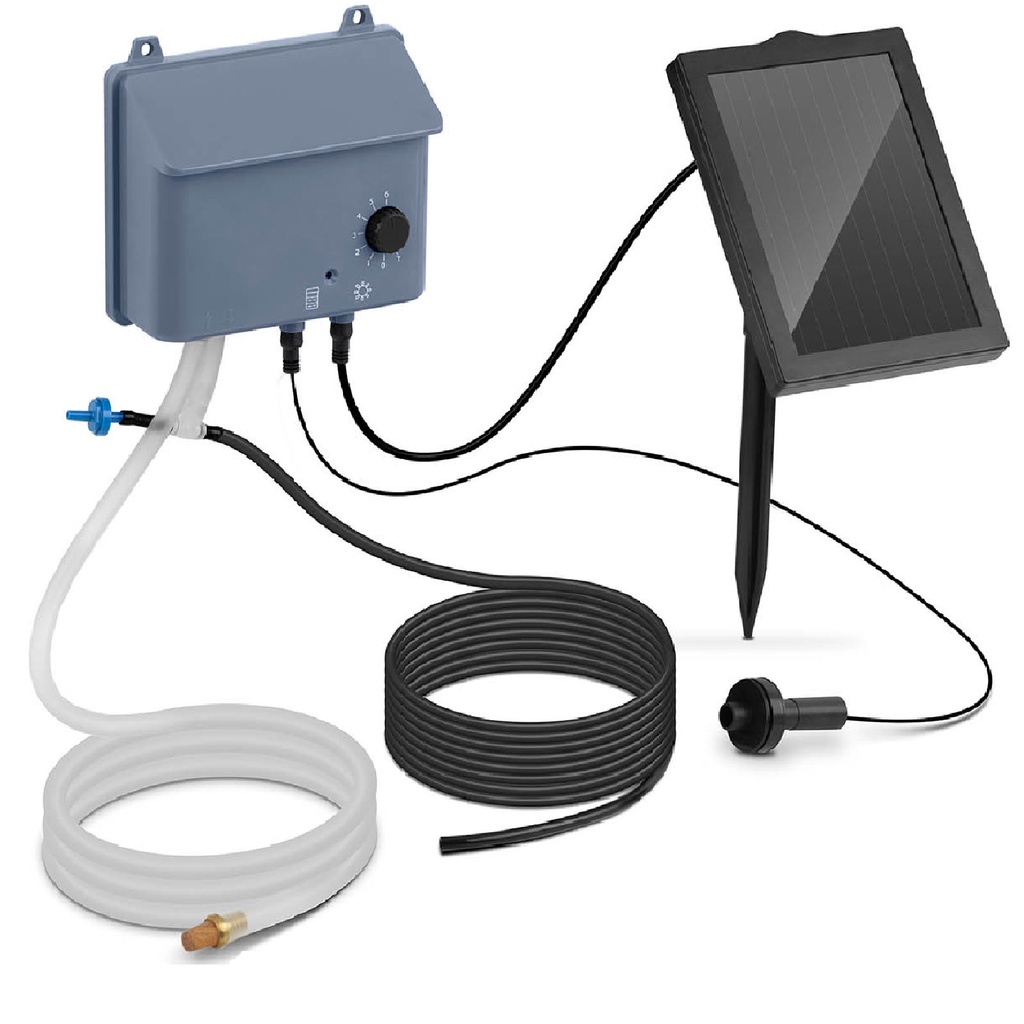

Irrigation system for garden solar irrigation automatic 600 ml/min 0.7 W.

Manufacturer code: 10090130

Hillvert'sirrigation system is the perfect equipment for wetting the ground in areas that need regular watering. 15 drippers automatically water the plants twice a day. A long 2-meter suction hose with a diameter of 1/4" and a 5-meter 1/8" water supply hose allow the pump to be positioned anywhere. Choose from 8 watering modes. TEST will automatically start irrigation, which will only turn off when the battery is depleted or when the dial is turned to the OFF position. Each of the other options is assigned a different watering time: 30 s / 12 h, 1 min / 12 h, 2 min / 12 h, 4 min / 12 h, 8 min / 12 h, 12 min / 12 h. Ability to set a maximum water flow of 600 ml/min. The pump is adapted to draw water from a depth of up to 2.4 m, as well as to pump it to a height of 3 m. Solar panels fully charge the irrigation system in 6 - 8 hours. You can connect the device directly to a garden tap or place the pump hose in a bucket with accumulated rainwater. The maximum allowable water temperature is 40°C.

Product features:

• - 15 drippers,
• - Automatic plant watering,
• - 8 watering modes,
• - Maximum water flow rate of 600 ml/min,
• - Pumps to a height of up to 3 m,
• - Rated power of the solar panel 0.7 W.

• - Model - HT-COSTIGAN-3600
• - Part number - 10090130
• - Article condition - New
• - Power source - Solar panel, 3.6 V 1, 200 mAh Ni-MH battery
• - Rated power / Rated voltage of the solar panel - 0.7 W / 6 V
• - Pump power supply - 3.5 V DC
• - Power of the pump - 0.45 W
• - Charging time of the device directly facing the sun - 6 - 8 h
• - Adjustable range of operating time within 12 hours - 0.5 - 12 min
• - Maximum water flow - 600 ml/min
• - Maximum water temperature - 40°C
• - Suction height - 2.4 m
• - Pumping height - 3 m
• - Dimensions of the mounting frame for the solar panel - 178 x 236 x 132 mm

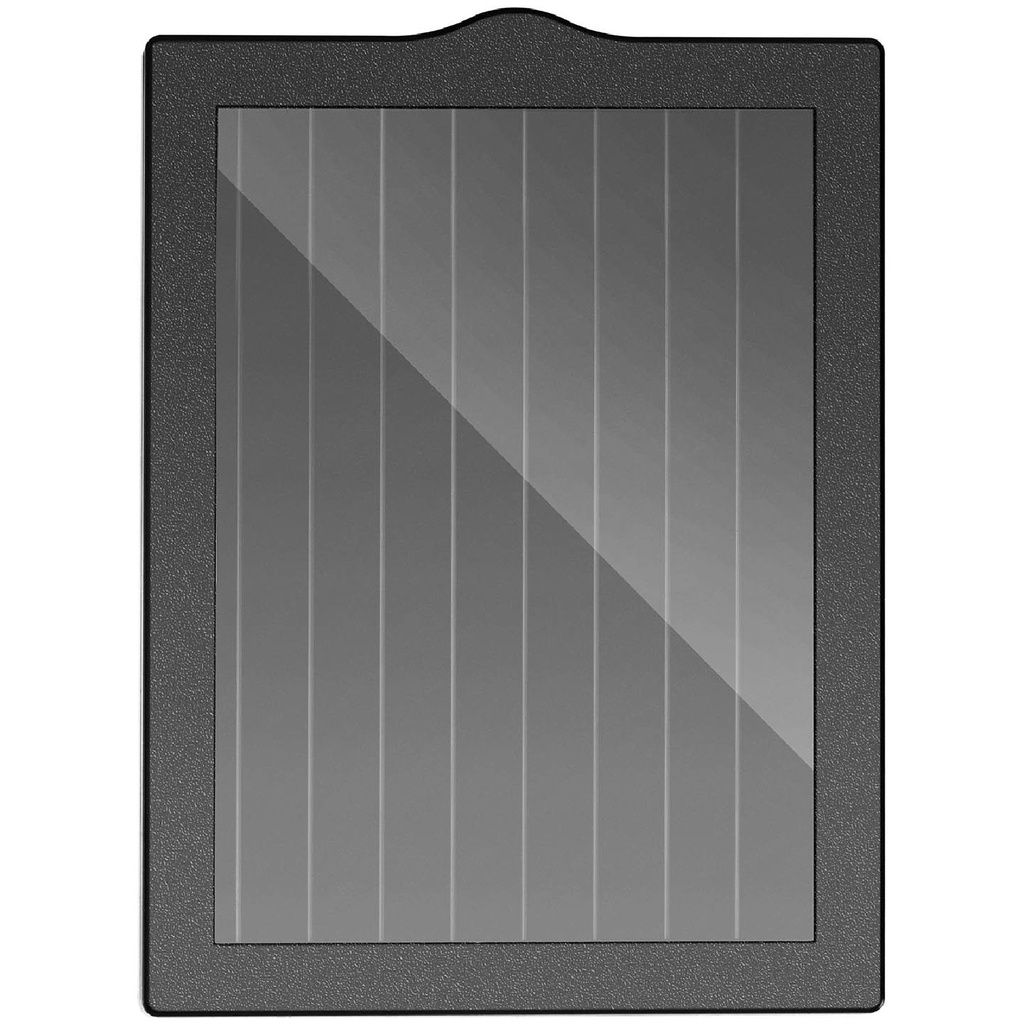

• - Dimensions of the solar panel - 105 x 145 mm
• - Dimensions of the control unit - 162 x 140 x 56 mm
• - Dimensions (DxSxW) - 16 x 6.5 x 14 cm
• - Weight - 1.1 kg
• - Shipping dimensions (DxSxW) - 18.5 x 15 x 19 cm
• - Shipping weight - 1.3 kg

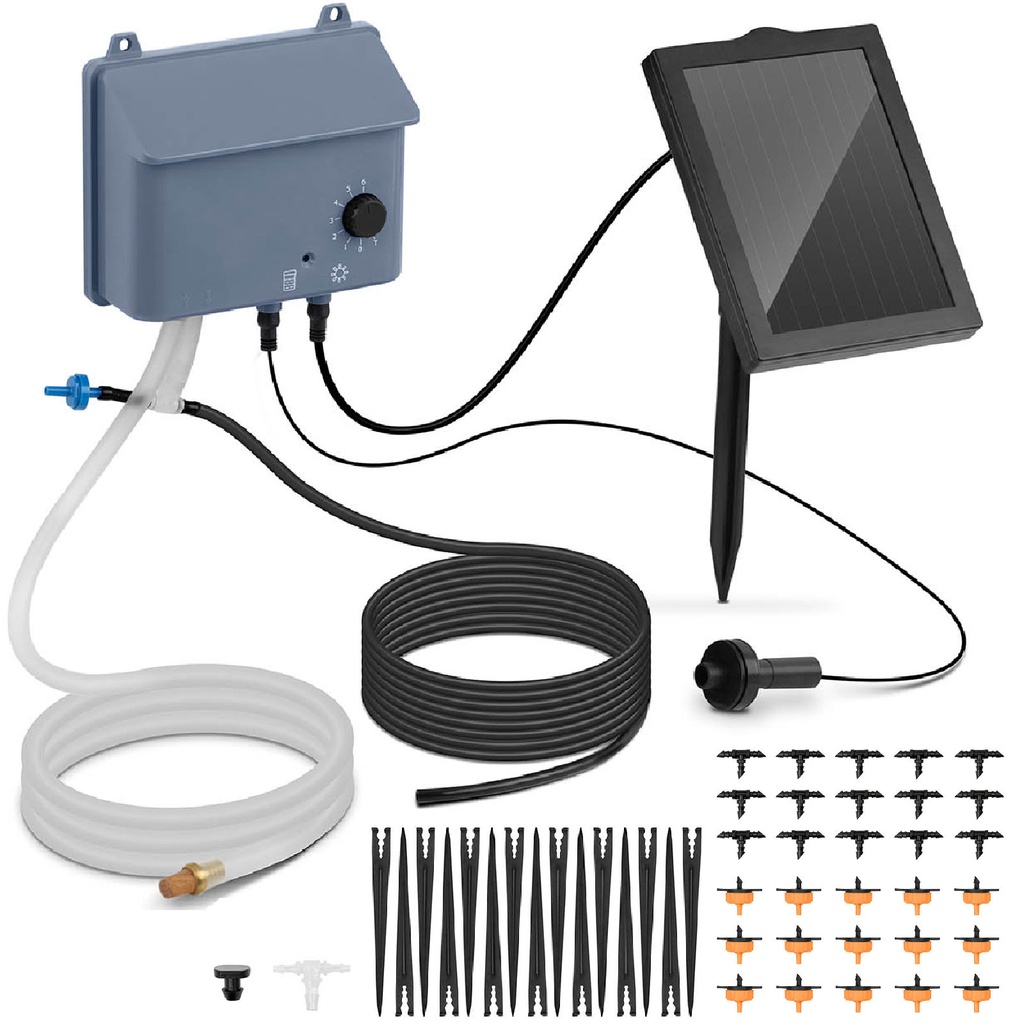

• - Solar panel with spike,
• - Controller with pump,
• - Irrigation device,
• - Water level switch,
• - Filter,

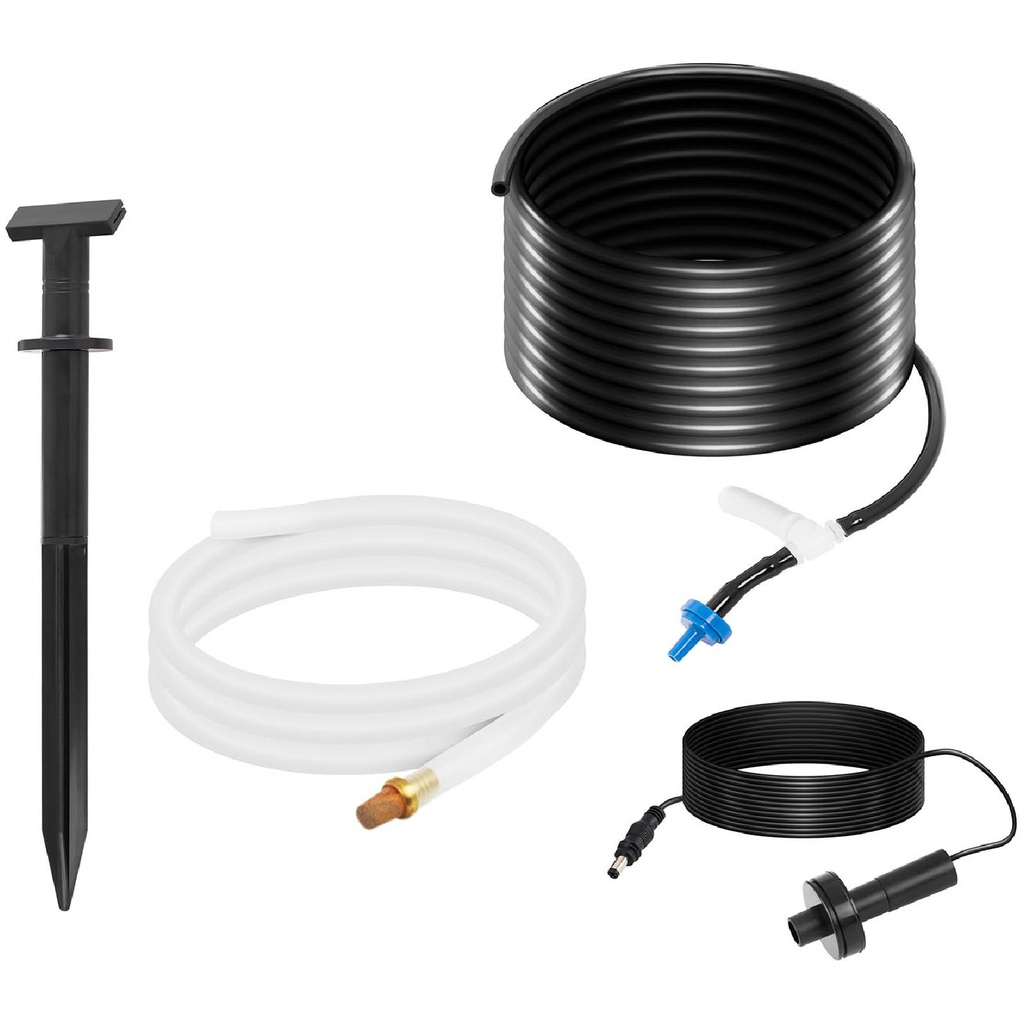

• - Transparent hose 1/4" - 2 m,
• - Black 1/8" hose - 5 m,
• - Anti-siphon valve,
• - Adapter "T1",
• - Adapter "T2",

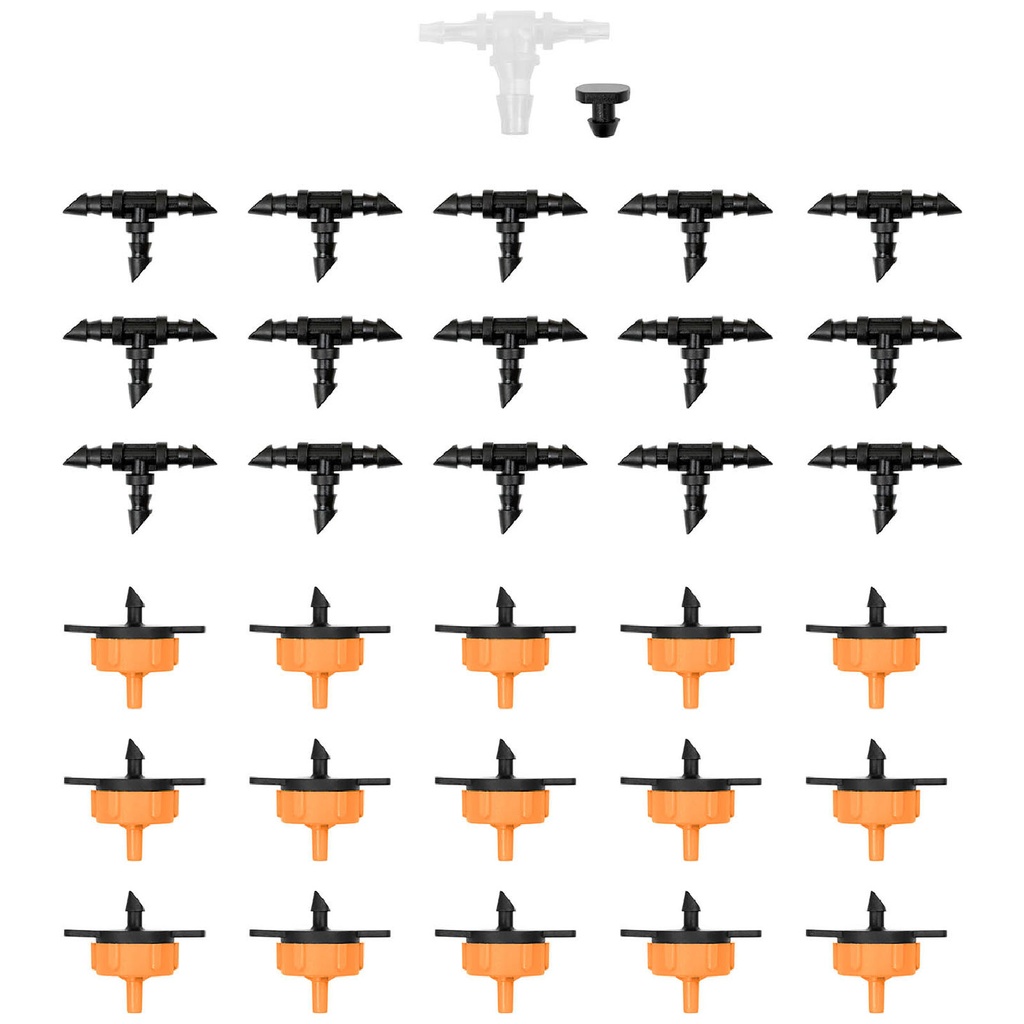

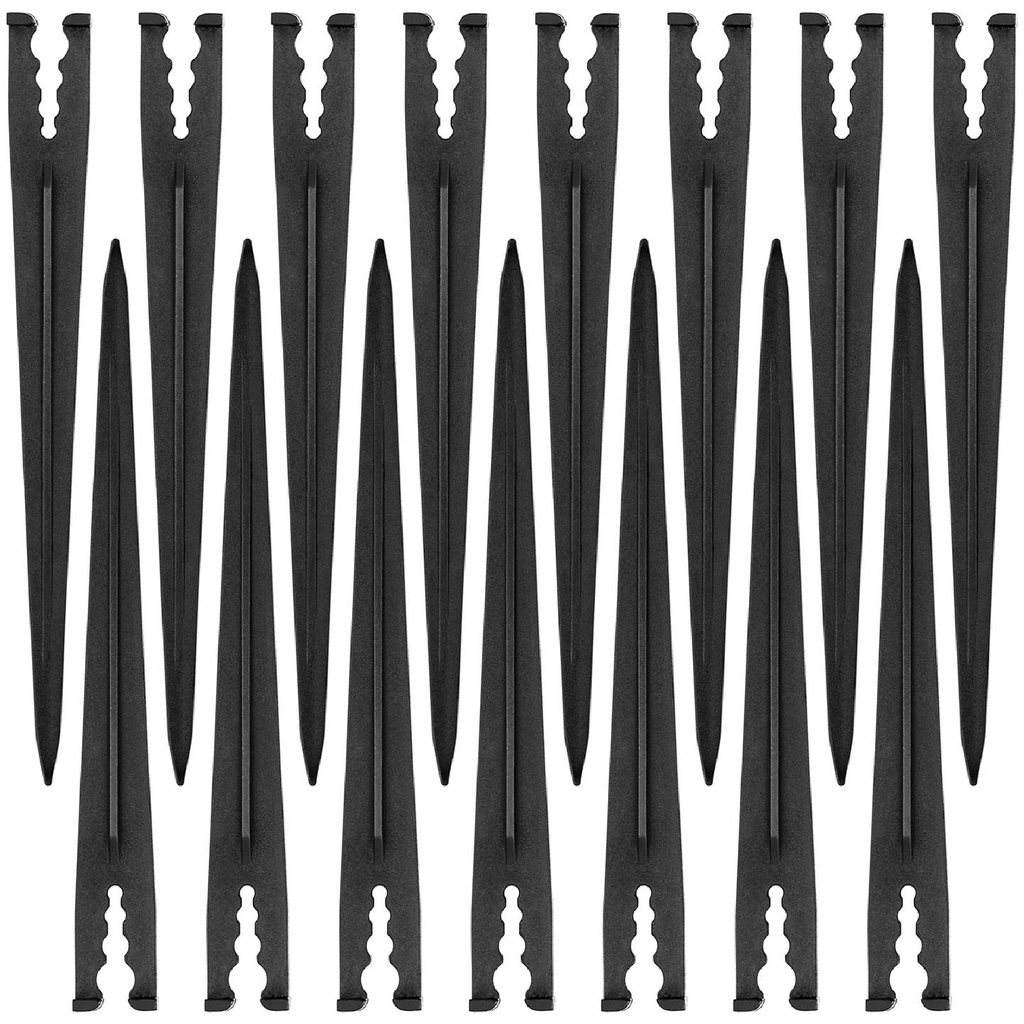

• - Handle - 15 pcs,
• - Dripper - 15 pcs,
• - Stopper,
• - Operating instructions.
