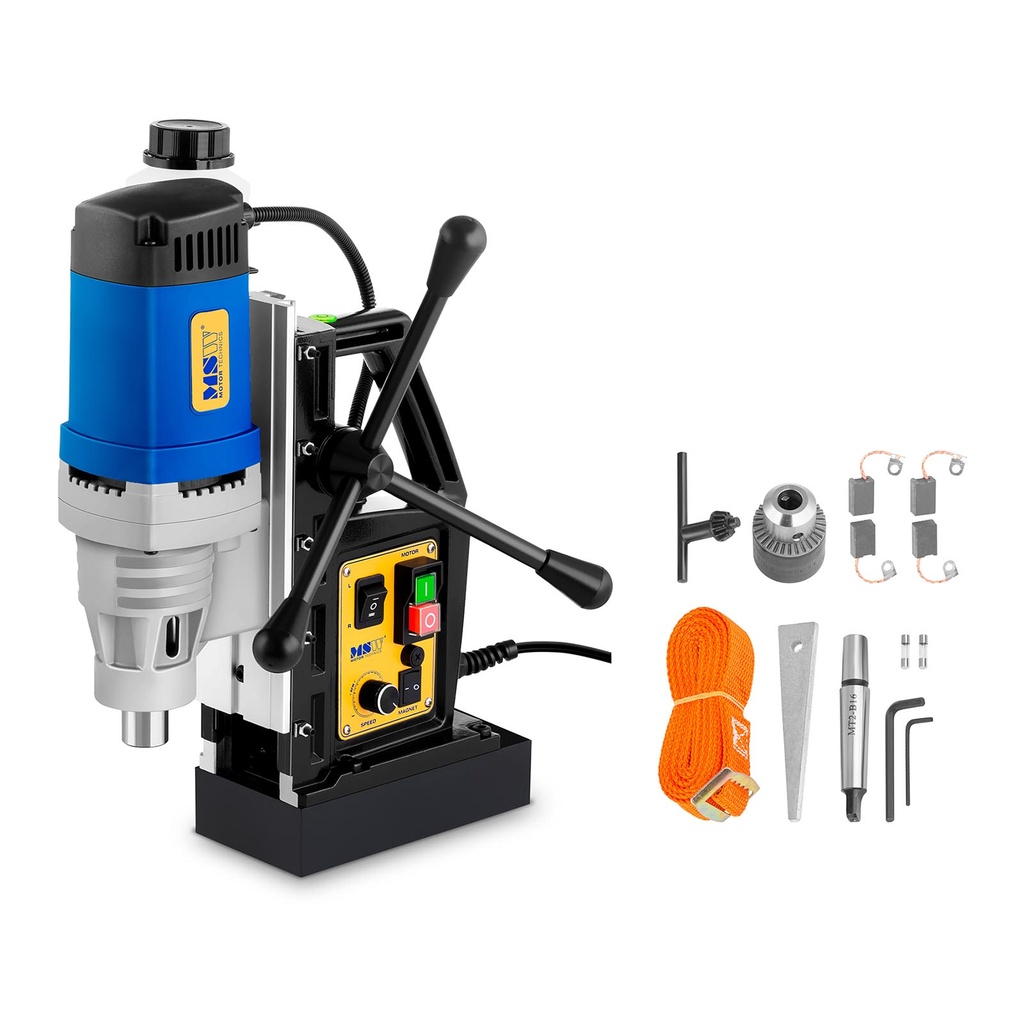

Magnetic drilling machine with magnetic foot 1380W MSW-MD32-ECO

Manufacturer Number: MSW 10060431

MSW magnetic drilling machine, thanks to its design, will allow you to work in difficult conditions and in different positions such as vertical. This is possible thanks to a strong 11500 N electromagnet, which keeps the device in a stable position. Relatively light weight and long power cord(2 m) influence the possibility of locating the drill in any place.

Efficient operation of the device is ensured by a 1380 W motor, which allows drilling at up to 600 revolutions per minute. A three-piece rotary chuck is responsible for setting the drilling depth (up to 50 mm). It moves the movable piece of equipment along the guide from 0 mm to 175 mm.

The drill has a cooling system for reducing the temperature of the drill during operation. It consists of a 300 ml reservoir and a 50 cm long tube. This influences the efficiency when working on metal parts and prolongs the life of the drill.

Easy operation of the equipment is due to the large buttons located on one side of the drill. Thanks to them you can start the motor and electromagnet and select the direction of drilling. There is also a stepless knob for speed adjustment. A built-in spirit level ensures that the angle of the machine is properly maintained.

Safe use is ensured by an RCD magnetic circuit breaker, which protects against shock and accidental activation. The included fuses will protect the electrical circuit from overloading. In addition, there is an interlock that will prevent the drill from starting when the electromagnet is off.

Product features:

• - Performance - 1380 W motor, drilling speed up to 600 RPM,
• - Easy operation - easy-to-read control panel, convenient drilling depth adjustment, stepless drilling speed setting,
• - Durability - steel and aluminum construction,
• - Safety - strong electromagnet, RCD switch, fastening belt, lock against unwanted activation,
• - Mobility - small size and weight compared to similar products, long power cord.

• - Model - MSW-MD32-ECO
• - Part number - 10060431
• - Housing material - Aluminum, steel, plastic
• - Frame material - Cast aluminum alloy
• - Power - 1380 W
• - Voltage/frequency - 230 V / 50 Hz
• - Cooling tank capacity - 300 ml
• - Cooling tank tube length - 50 cm
• - Maximum electromagnetic pull - 11500 N
• - Maximum drill thread size - M14
• - Maximum drill diameter - 35 mm
• - Maximum drilling depth - 50 mm
• - Diameter of twist drill bit - 19 mm
• - Included drill chuck - B16 / 1.5-13 mm
• - Maximum speed (no load) - 600 rpm
• - Drill range - 0-175 mm
• - Built-in level - Yes
• - Safety strap included - Yes
• - Threading function - Yes
• - Power cord length - 2.25 m
• - Dimensions (DxSxW) - 31 x 21.5 x 56.5 cm
• - Weight - 16.8 kg
• - Shipping dimensions (DxSxW) - 38.5 x 17 x 47 cm
• - Shipping weight - 18 kg

• - Magnetic drill
• - Safety belt
• - Rotary chuck - 3 pieces
• - Allen wrench - 2 pcs.
• - Fuse - 2 pcs.
• - Wedge drift
• - Cooling tank
• - Drill chuck holder
• - Drill chuck (B16 / 1.5-13 mm)
• - Drill key
• - Carbon brush - 2 pcs.
• - Instruction manual EN
