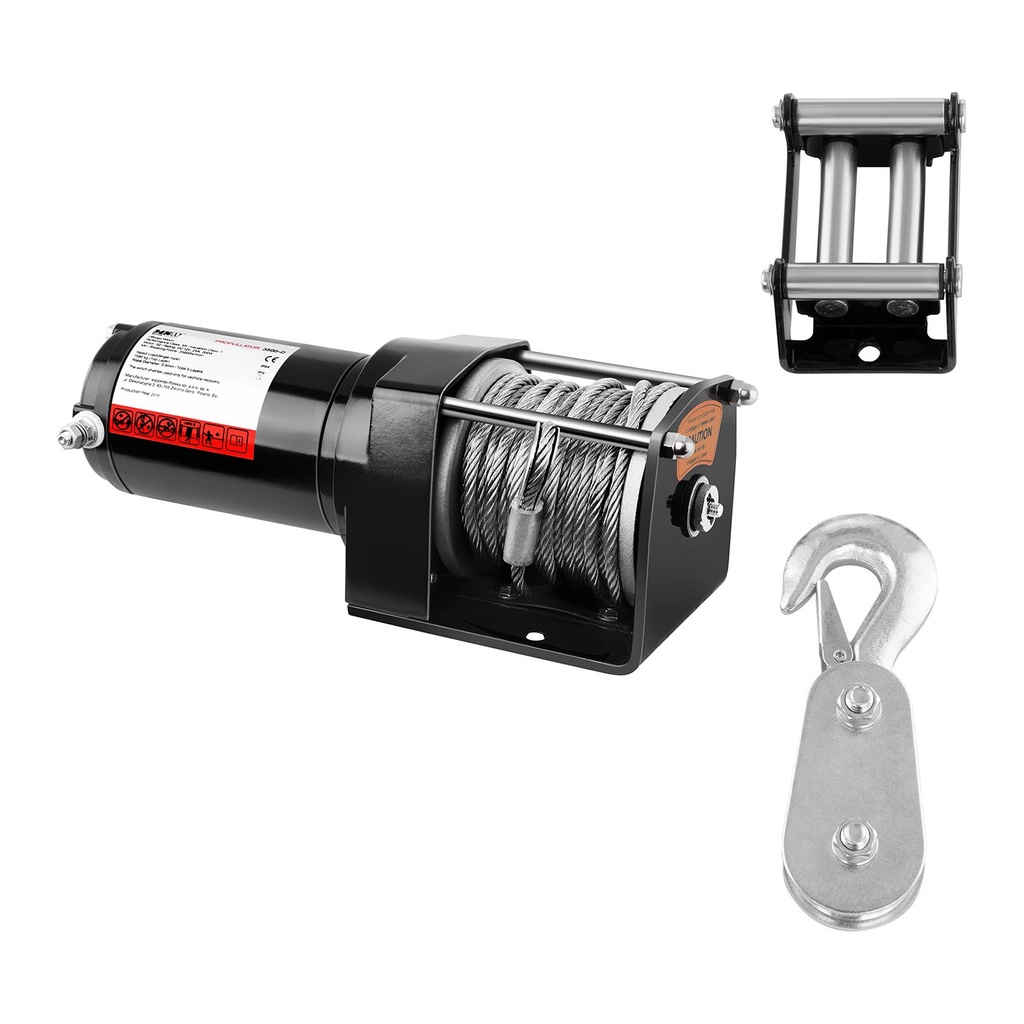

Off road off road winch for car rope 13 m pulling capacity 1590 kg + Pilot

Manufacturer number: MSW 10060669

Powerful winch from the German brand MSW designed for pulling vehicles or other objects out of difficult terrains. It will work well in mountainous areas or during off-road driving. It fits almost any ATV, trailers and can also be used in households when, for example, removing tree trunks, logs and the like.

The 1.3 horsepower (1000 watt) motor, along with a large drum, magnet (brushless design) and strong steel cable, achieves a pulling force of 3,500 lbs (1,590 kg). This allows you to quickly and easily extract a vehicle from a ditch or other off-road obstacle. Installation of the winch is facilitated by a special mounting plate.

A three-stage planetary gearbox (forward gear, reverse gear and a manual clutch for fast rope deployment) allows power transmission to be regulated by a special gearbox. The reduction ratio is 153:1. In turn, the intermittent duty cycle allows the engine to operate on an interval basis, so it does not reach its highest temperature.

To increase the durability of the device, the kit includes a strong steel rope (13 m in length / 5.5 mm in diameter), which, thanks to the four-path guide, is resistant to most mechanical damage and even during frequent changes in the pulling angle. Safety is the responsibility of the automatic braking system, which will hold the pulled object, even if the electricity runs out. In addition, the design of the winch is resistant to overloading and rain, snow or dirt.

Product features:

• - Performance - 1000 W motor generates a pulling force of up to 1590 kg,
• - Speed - 3.3 m/min towing capacity,
• - Precision - Three-speed gearbox with 153:1 reduction ratio,
• - Durability - strong steel rope,
• - Safety - protection against overheating, overloading and automatic braking system,
• - Convenience - remote control with long cable, convenient mounting plate and compact size.

• - Model - PROPULLATOR 3500-D
• - Part number - 10060669
• - Article condition - New
• - Housing material - Aluminum
• - Rope material - Steel
• - Motor power - 1.3 HP / 1000 W
• - Voltage - 12 V
• - Motor type - Permanent magnet motor
• - Duty cycle - Intermittent
• - Transmission - 3-stage planetary gearbox
• - Gear ratio - 153:1
• - Pulling force - 1590kg / 3500lbs
• - Pulling speed - 3.3 m/min
• - Rope length - 13 m
• - Rope diameter - 5.5 mm
• - Rope protection system - 4-stage guide
• - Drum diameter - 32 mm
• - Braking system - Automatic
• - Clutch type - Pull clutch
• - Remote control type - Wired
• - Dimensions (DxSxW) - 11.5 x 31 x 19 cm
• - Weight - 7.7 kg
• - Shipping dimensions (DxSxW) - 34 x 29 x 17 cm
• - Shipping weight - 9.2 kg

• - Winch,
• - Control box with wires,
• - Mounting bracket for the box - 2 pcs,
• - Wired remote control,
• - Mounting plate,
• - 4-path rope roller guide,
• - Hook,
• - Mounting accessories,
• - EN manual.
