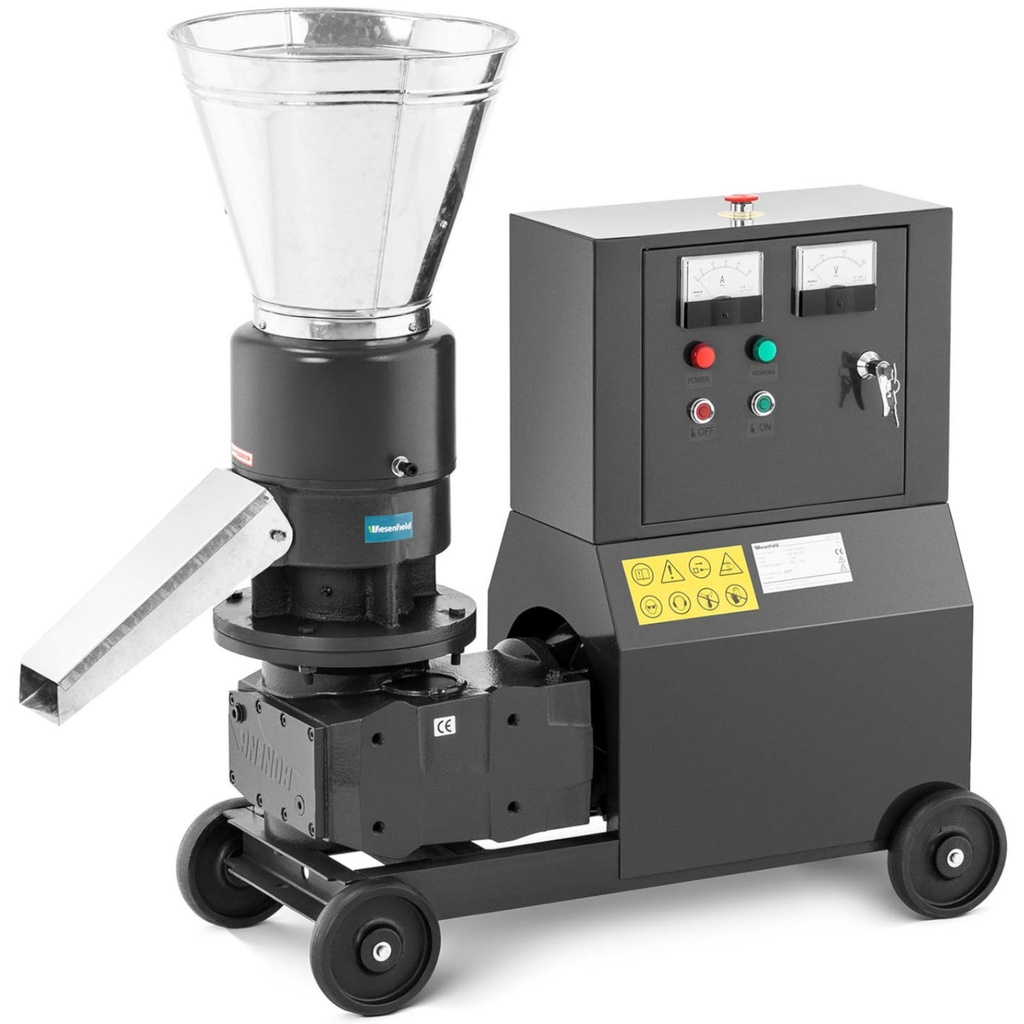

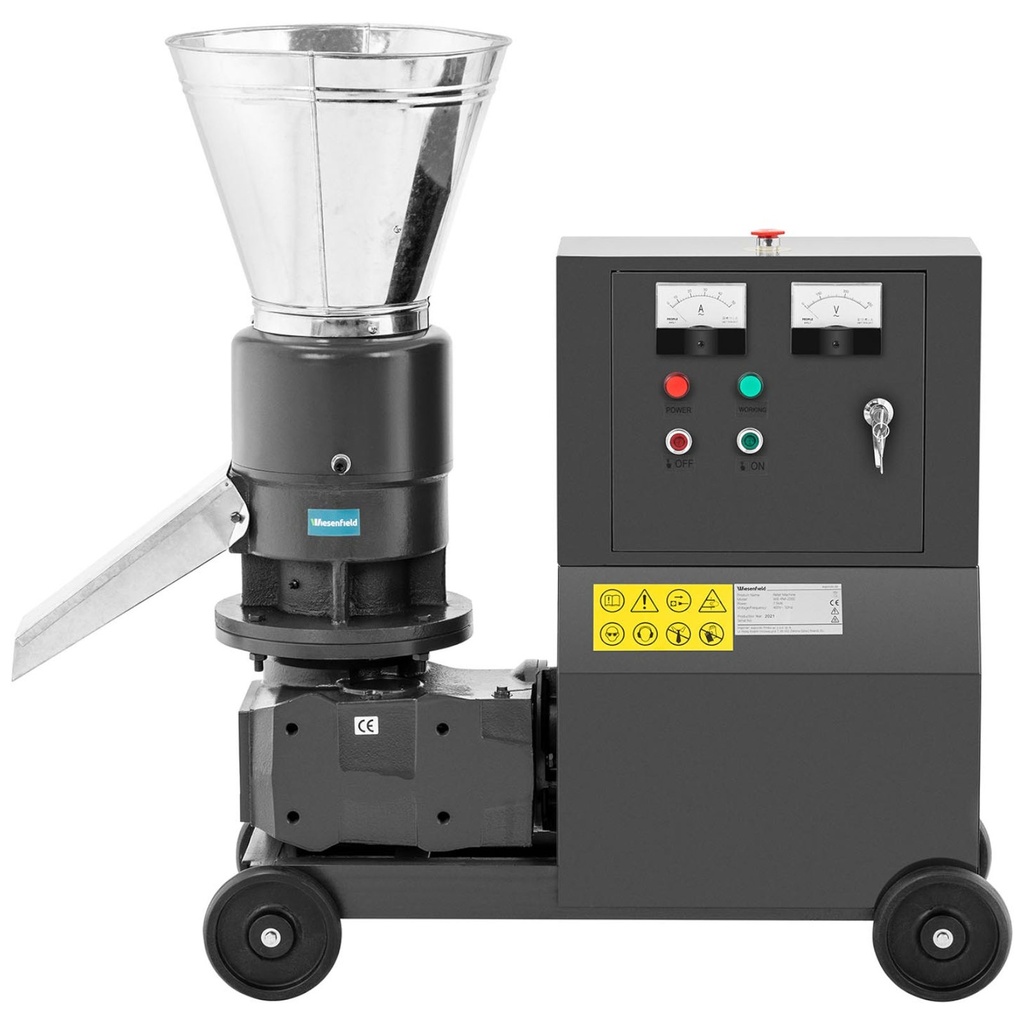

Pellet granulator machine sawdust pellet machine mobile 7.5 kW 400 V 200 kg/h diameter 229 mm.

Manufacturer code: 10280042

Professional industrial pelletizer by Wiesenfield is used to produce pellets, animal feed and pellets from various organic materials. The pelletizer gives the possibility to use wooden sawdust, straw, nut shells, rice husks or paper. They are placed in a special die with holes 6 mm in diameter, where they are subjected to high pressure and temperature (60-80°C). Some materials require the use of special binders. The pelletizer is capable of producing 200 kg of feed and 120-200 kg of pellets from sawdust per hour. A special safety brake ensures the protection of the user. 4 wheels ensure the mobility of the machine and make it easy to transport.

Product features:

• - Production of pellets for heating and fertilizing,
• - Production of feed for animal feeding,
• - 7500 W motor,
• - Matrix with a diameter of 229 mm,
• - Pellet diameter 6 mm,
• - Operating temperature from 60 to 80°C,
• - Compact, mobile and easy to operate,
• - Cast iron and alloy steel.

• - Model - WIE-PM-2000
• - Part number - 10280042
• - Item condition - New
• - Manufacturer - Wiesenfield
• - Voltage [V] - 400
• - Operating instructions - No

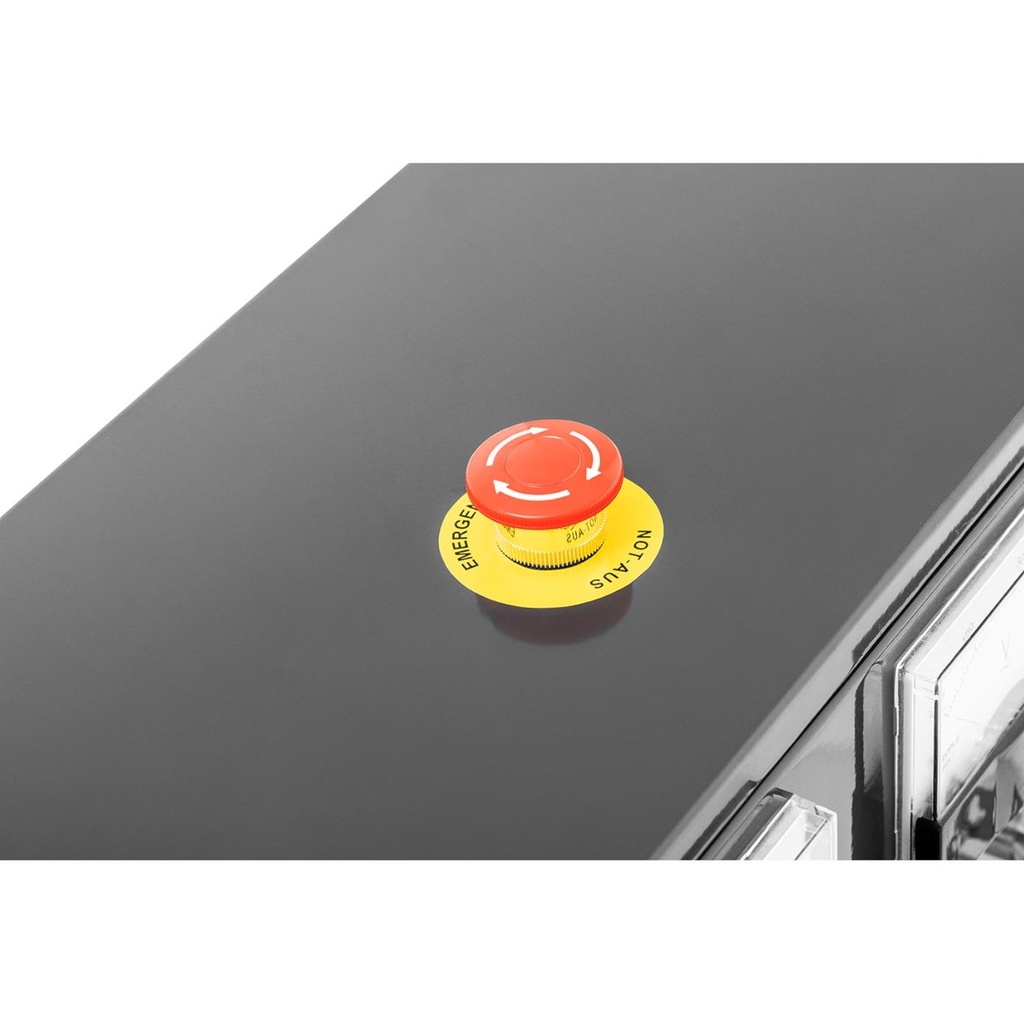

• - Emergency stop - Yes
• - Speed [rpm] - 1450
• - Housing material - Cast iron
• - Power [W] - 7500
• - Frequency [Hz] - 50
• - Die diameter [mm] - 229
• - Size of die holes [mm] - 6
• - Production capacity from sawdust [kg/h] - 120-200
• - Feed production capacity [kg/h] - 200
• - Continuous operation time [h] - 24
• - Dimensions (LxWxH) [cm] - 121 x 40 x 117
• - Weight [kg] - 214
• - Shipping dimensions (DxSxW) [cm] - 100 x 44 x 99
• - Shipping weight [kg] - 234

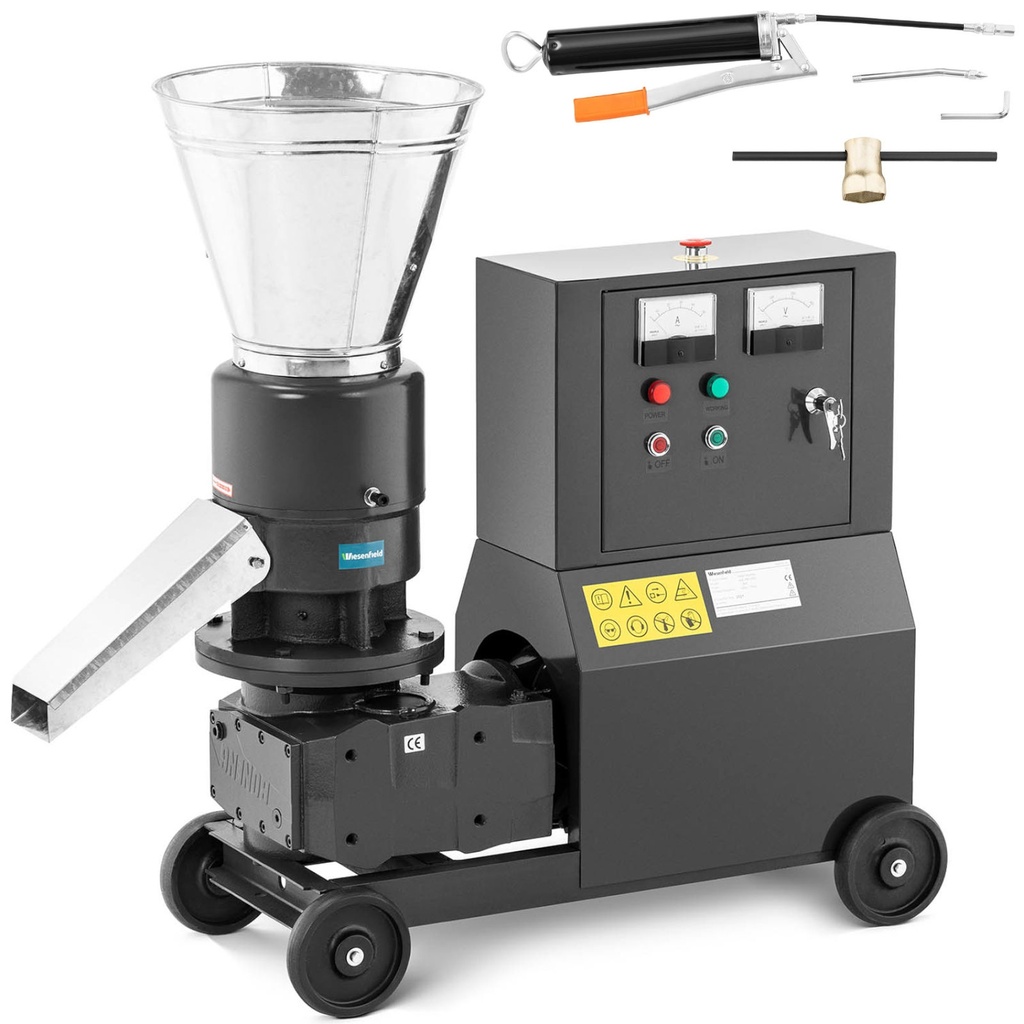

• - Pelletizer,

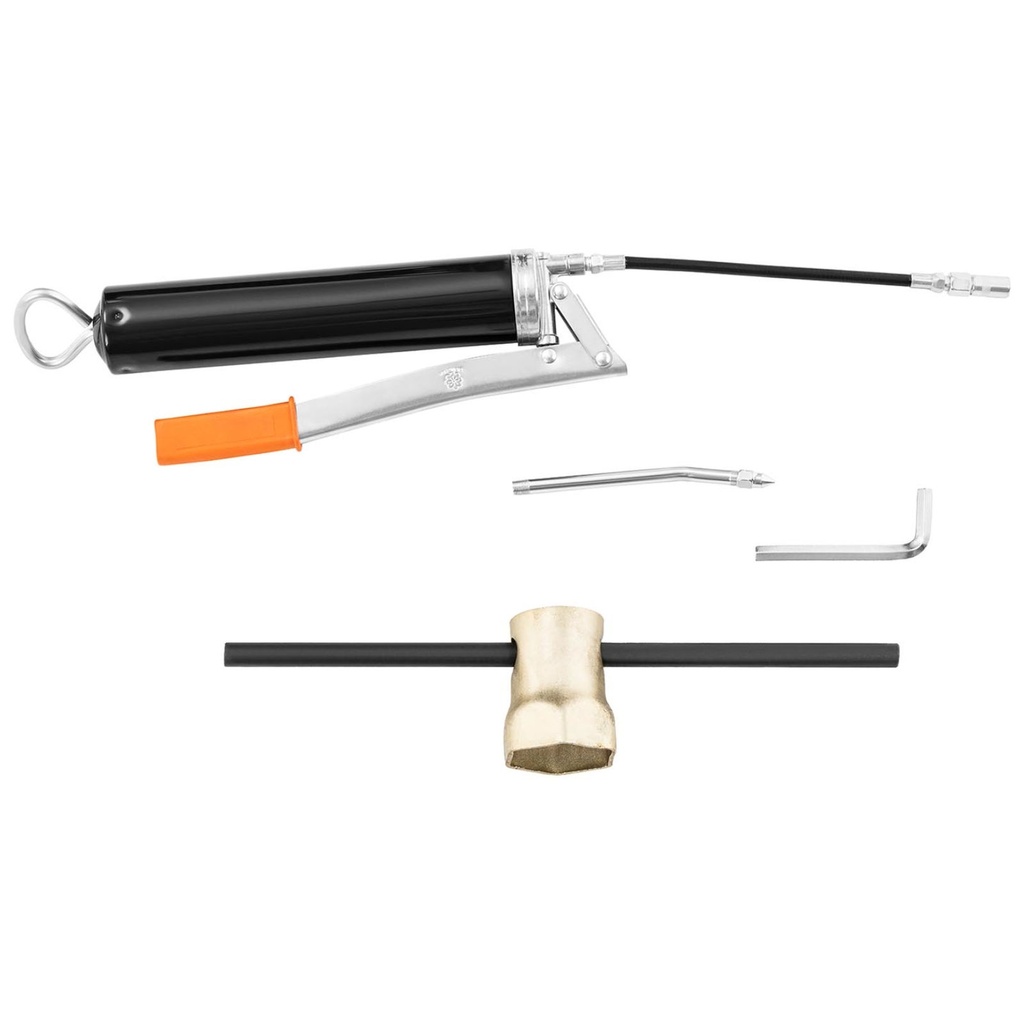

• - Allen wrench 8 mm,
• - Screws M8 x 16 mm - 5 pcs,
• - Flat washers ¶ 8 mm - 5 pcs,
• - Spring washers ¶ 8 mm - 5 pcs,
• - Lubricator,
• - Operating instructions.
