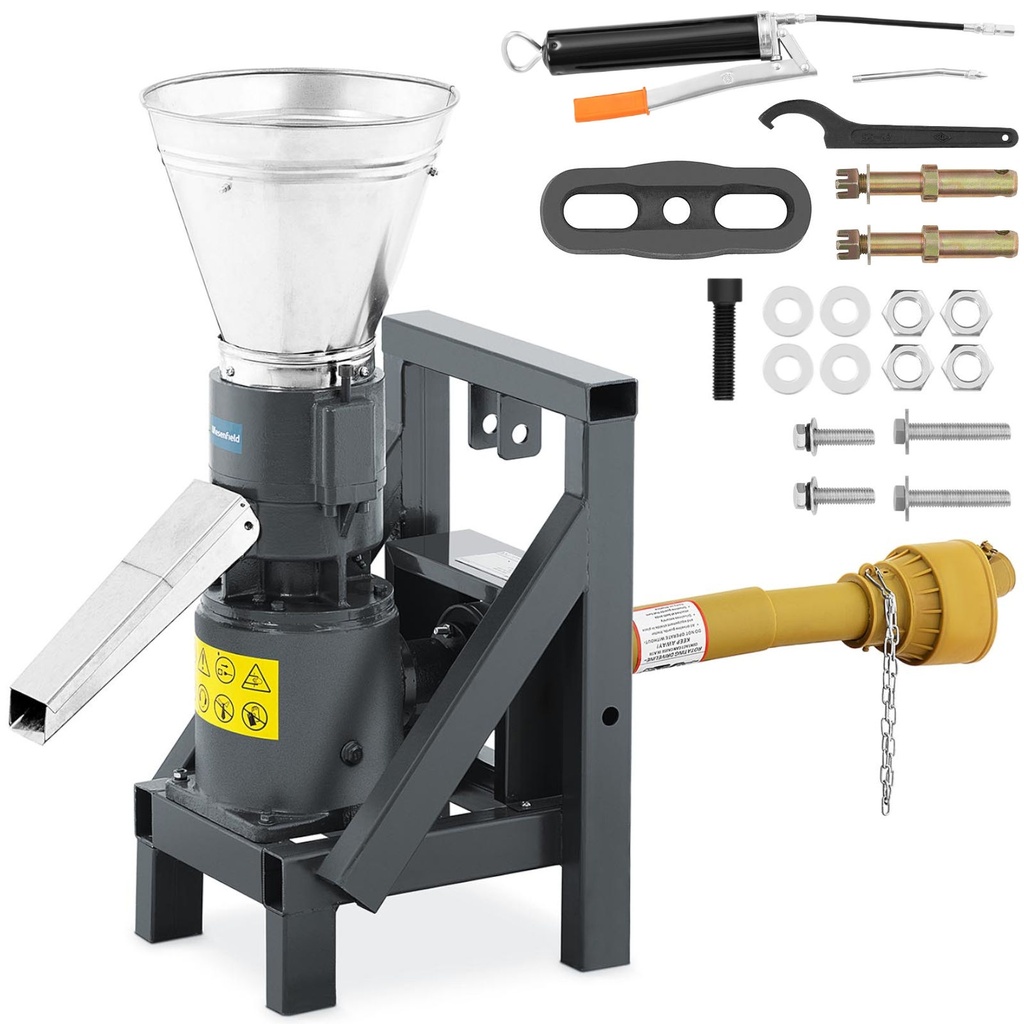

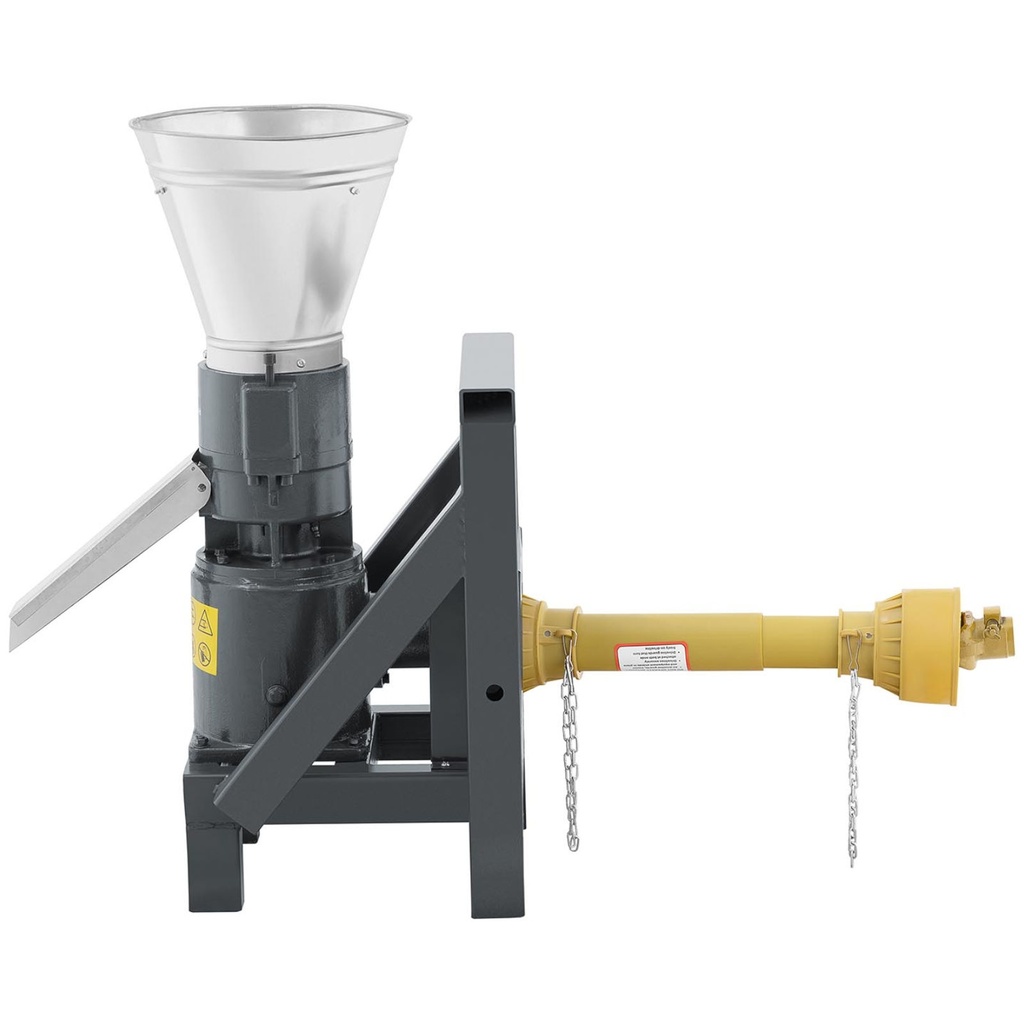

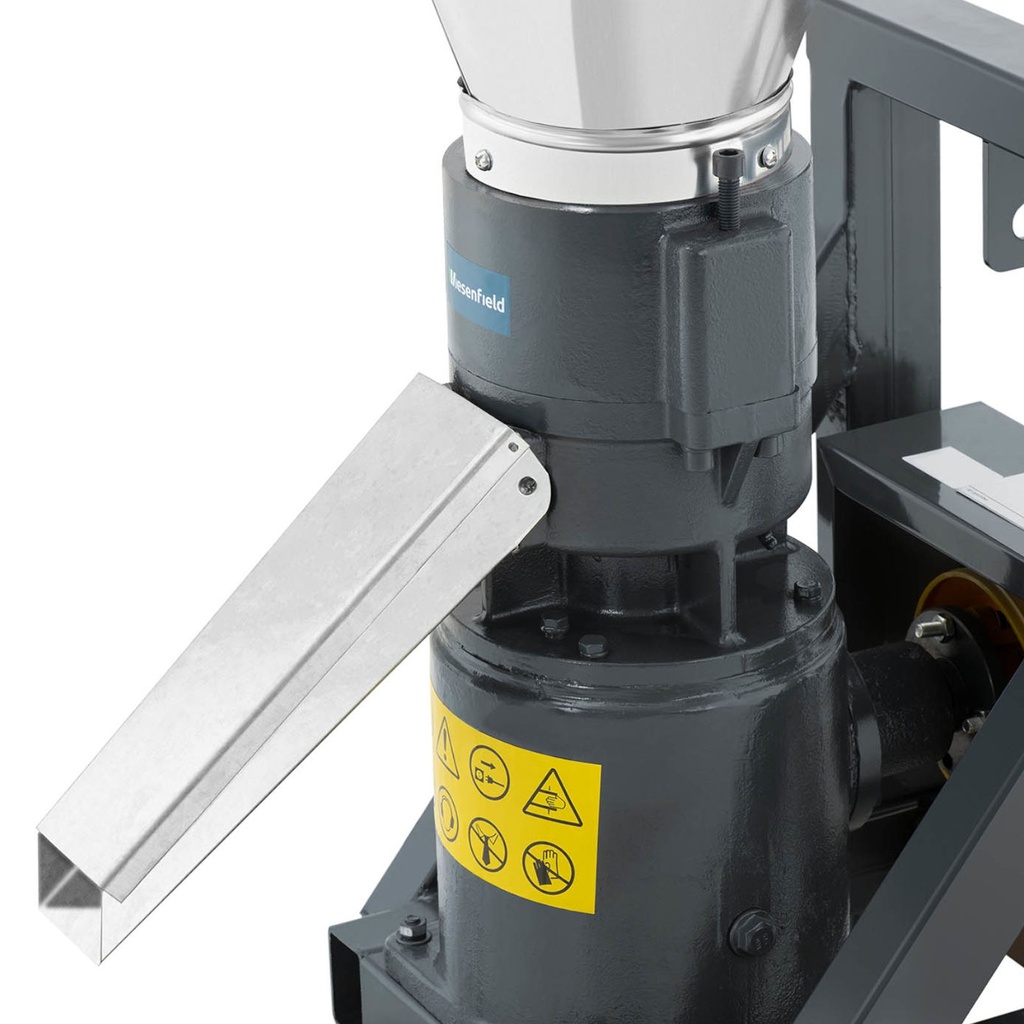

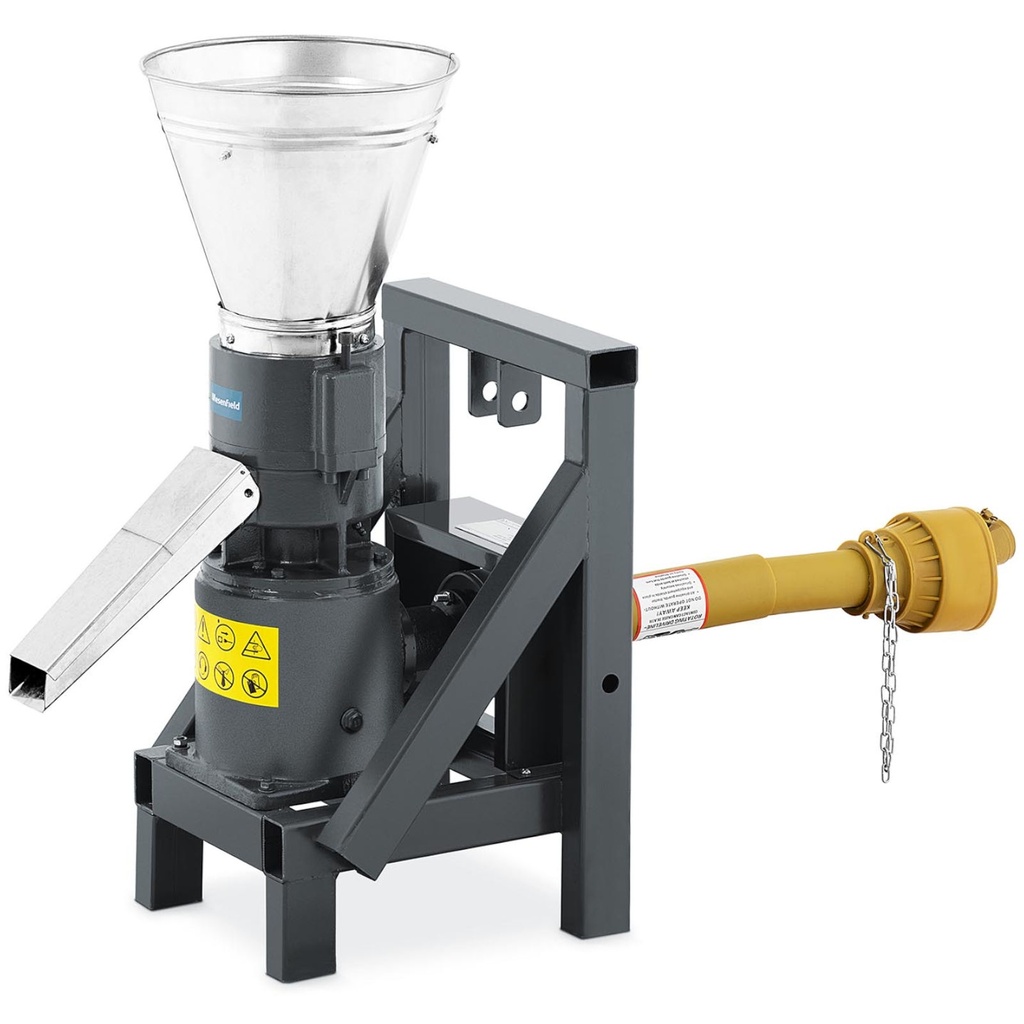

Pellet machine sawdust feed machine for tractor 120 kg/h diameter 150 mm.

Manufacturer code: 10280044

Professional industrial pelletizer by Wiesenfield is used to produce pellets, animal feed and pellets from various organic materials. The pelletizer gives the possibility to use wooden sawdust, straw, nut shells, rice husks or paper. They are placed in a special die with holes 6 mm in diameter, where they are subjected to high pressure and temperature (60-80°C). Some materials require the use of special binders. The pelletizer is capable of producing 90-120 kg of feed and 50-90 kg of pellets from sawdust per hour. The efficiency of the machine has been achieved with a power take-off connected to an 8-12 hp tractor.

Product features:

• - Production of pellets for heating and fertilization,
• - Production of feed for animal feeding,

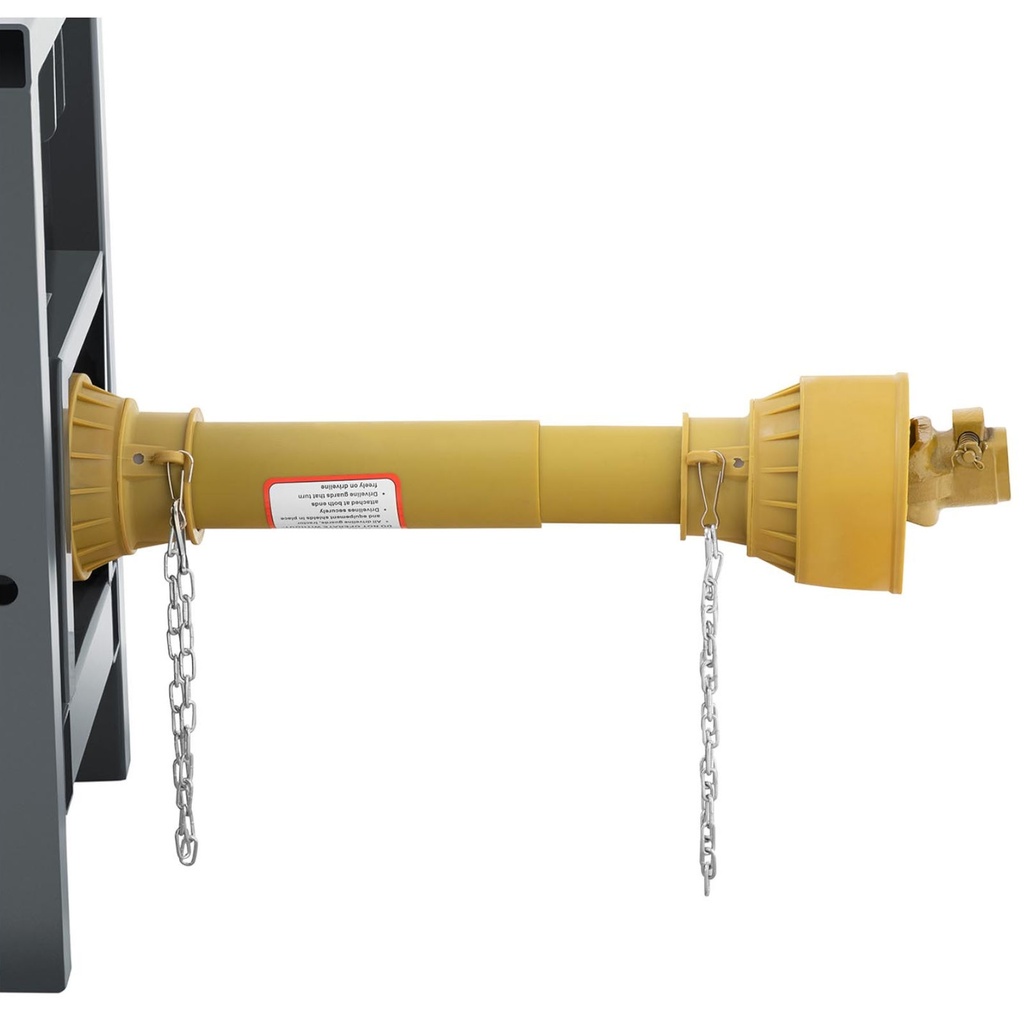

• - Powered by a power take-off connected to a tractor,
• - Matrix with a diameter of 150 mm,
• - Pellet diameter 6 mm,
• - Operating temperature from 60 to 80°C,
• - Compact, mobile and easy to operate,
• - Cast iron and alloy steel.

• - Model - WIE-PM-2500
• - Part number - 10280044
• - Item condition - New
• - Manufacturer - Wiesenfield
• - Operating instructions - Yes
• - Emergency stop switch - No
• - Housing material - Cast iron
• - Die diameter [mm] - 150
• - Size of die holes [mm] - 6
• - Production capacity from sawdust [kg/h] - 50-90
• - Feed production capacity [kg/h] - 90-120
• - Power take-off [hp] - 8-12
• - Dimensions (DxSxW) [cm] - 88 x 64 x 110
• - Weight [kg] - 67
• - Shipping dimensions (DxSxW) [cm] - 56 x 42 x 88
• - Shipping weight [kg] - 78

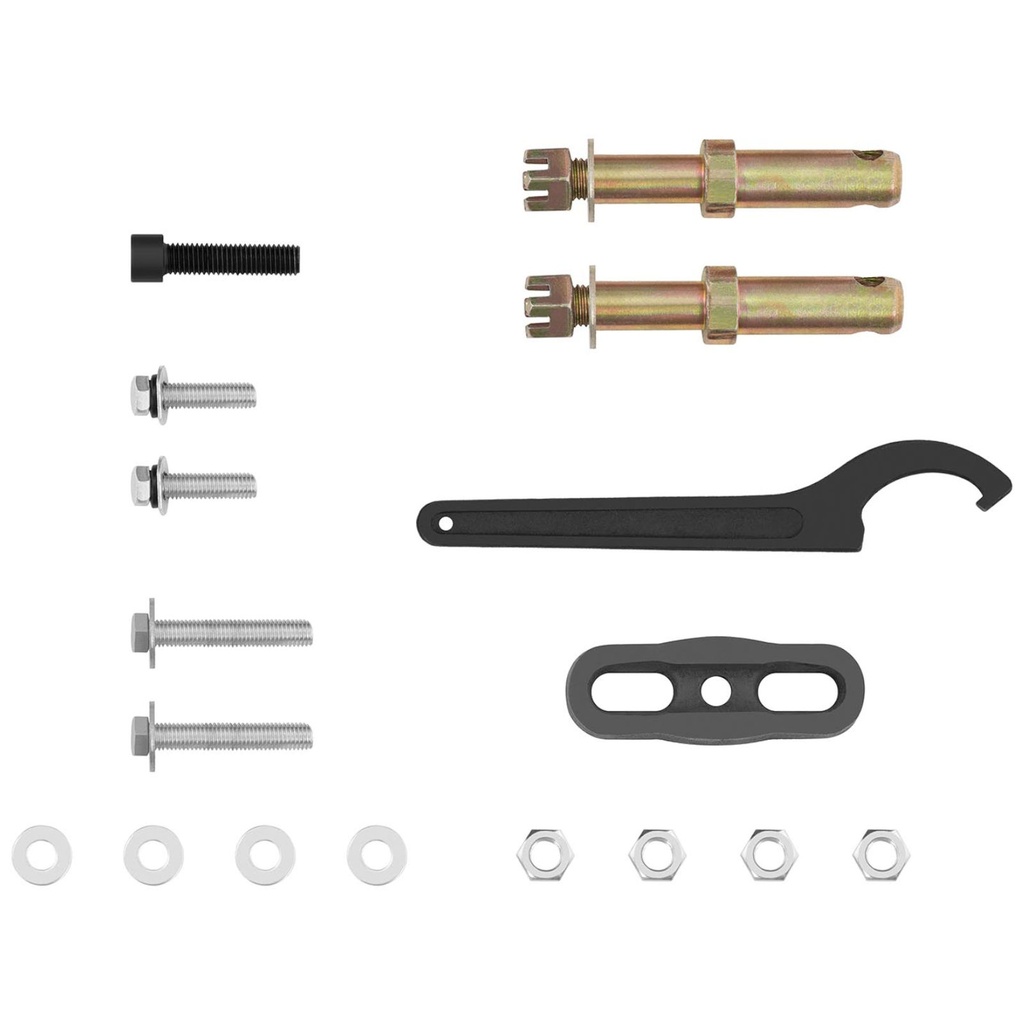

• - Pelletizer,
• - Puller,
• - Screws M8 x 40 mm - 7 pcs,
• - Flat washers ¶ 8 mm - 7 pcs,
• - Spring washers ¶ 8 mm - 5 pcs,
• - Nuts M8 - 5 pcs,
• - Screw M10 x 45 mm,
• - Operating instructions.
