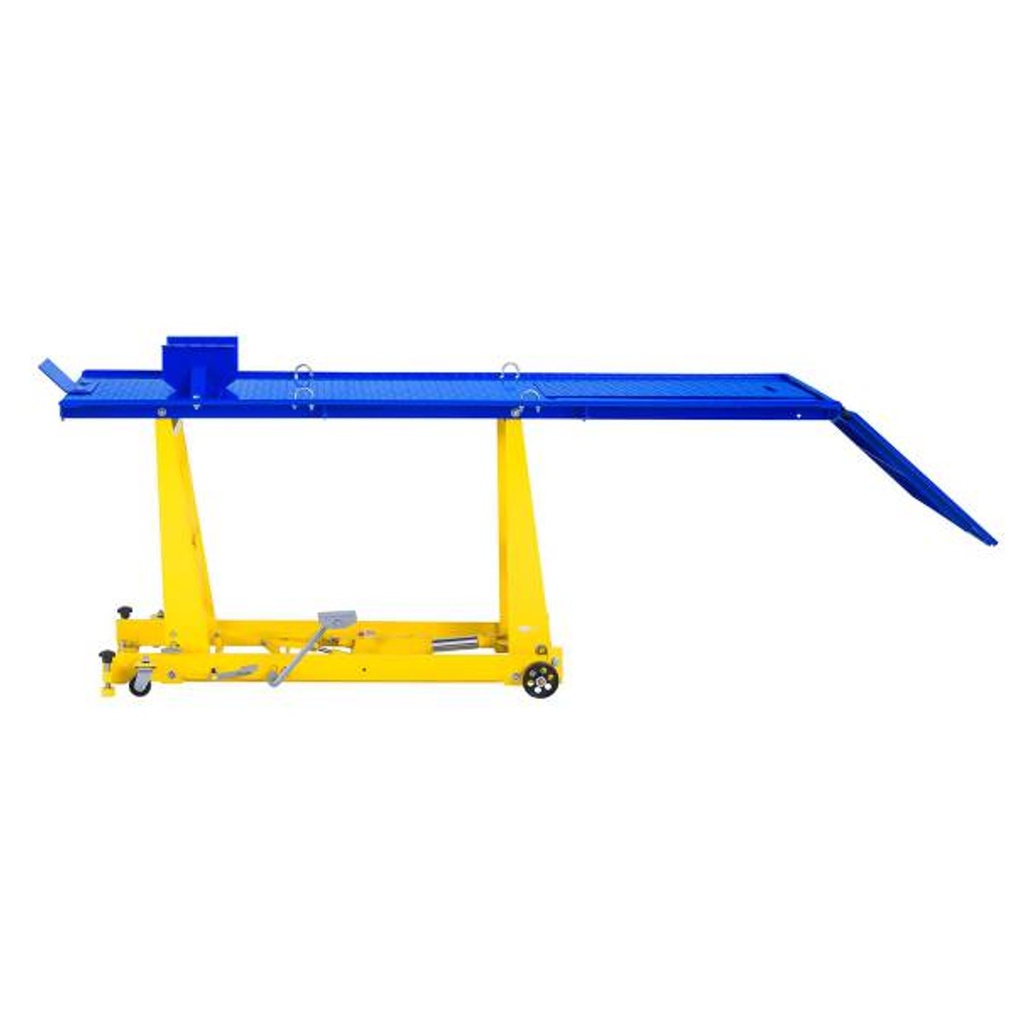

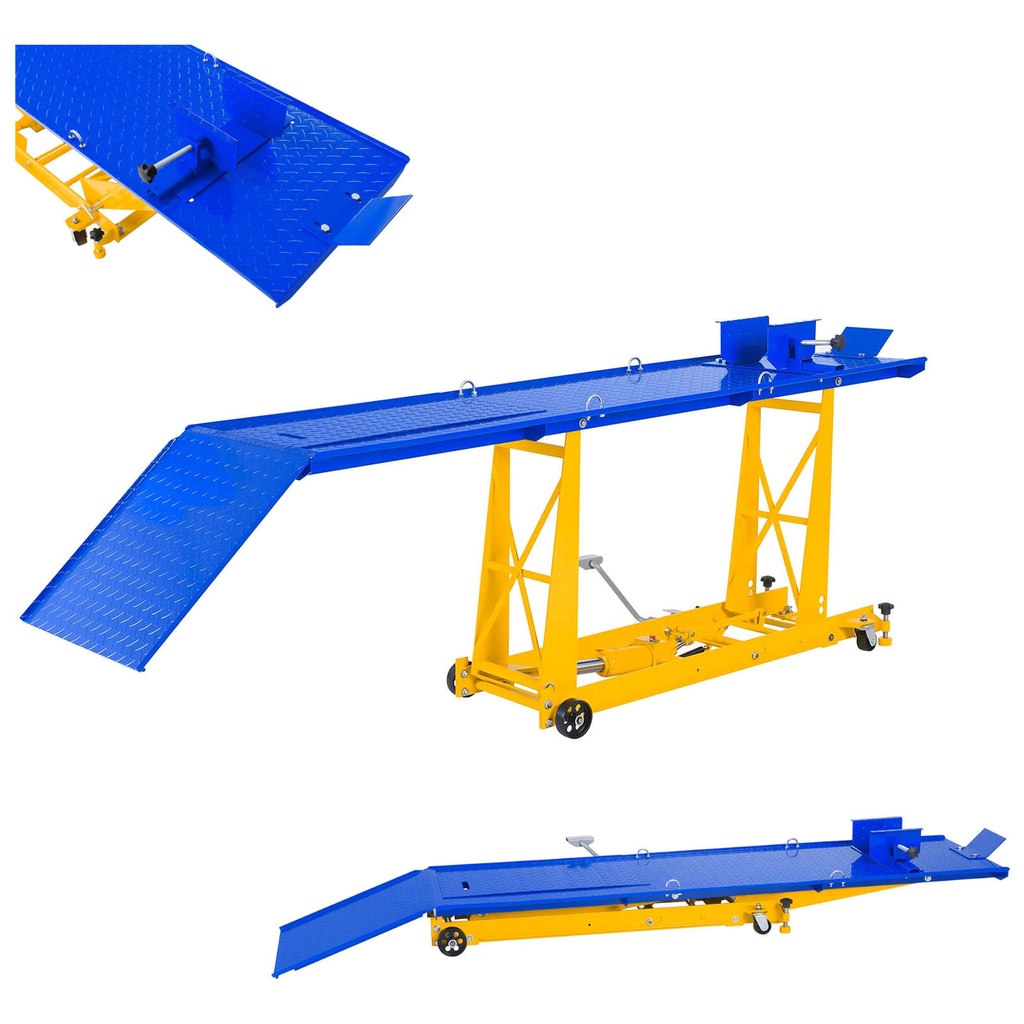

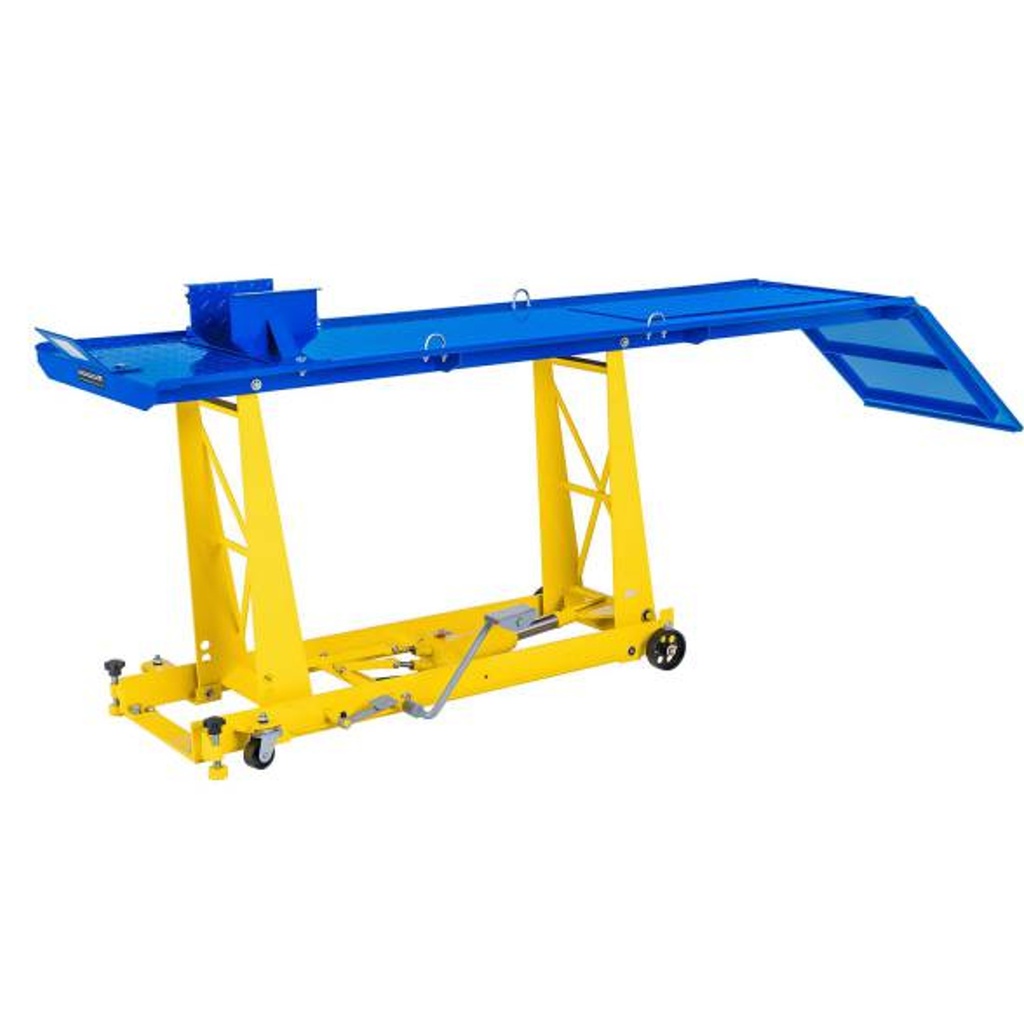

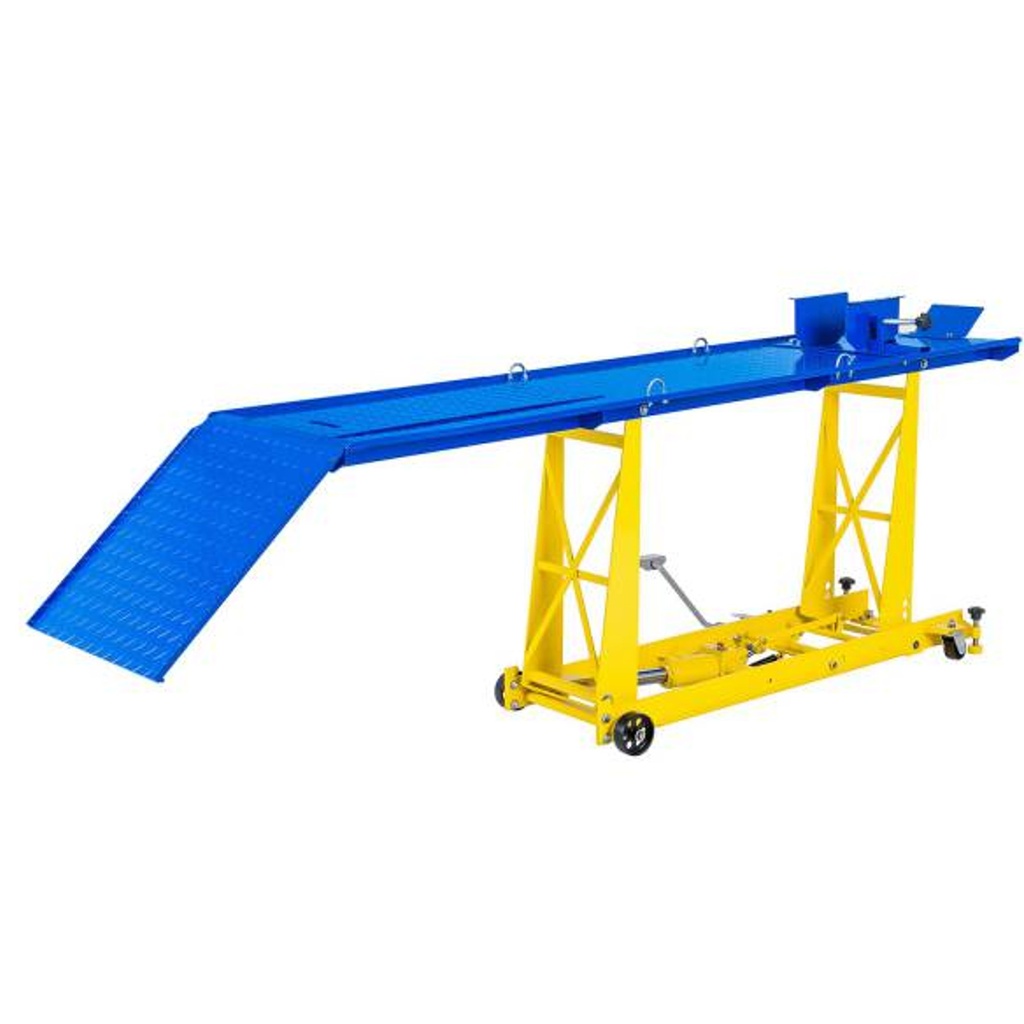

Platform elevator table motorcycle elevator with ramp 450kg 206 x 55 cm MSW MHB-450-780.1

Manufacturer name: MSW-MHB-450-780.1

MSW brand motorcycle lifter is designed for use in professional motorcycle services, repair shops and workshops. It will also find its way into the garage of a single-track enthusiast. It is designed to lift(from 180 to 780 mm) and support motorcycles with a total weight of up to 450 kg, i.e. light enduro, cross and scooter machines. The MSW-MHB-450-780.1 can also be used to raise components from larger vehicles: fuel tanks, swing arms and axles. Raising and lowering is done with a foot pedal. 4 wheels provide the elevator with mobility.

Lifting of the machine is carried out in the range from 180 to 780 mm. This allows comfortable work and convenient access to all parts of the repaired vehicle. The mechanic does not have to bend down, and all structural components are clearly visible.

Robust construction is an advantage of the presented equipment. The motorcycle jack from MSW is made of high-quality steel. It has a load capacity suitable for unicycles with a maximum weight of 450 kg. It is operated by foot pedals. When lowering the height, a special mechanism ensures smooth movement.
The machine is easy to immobilize

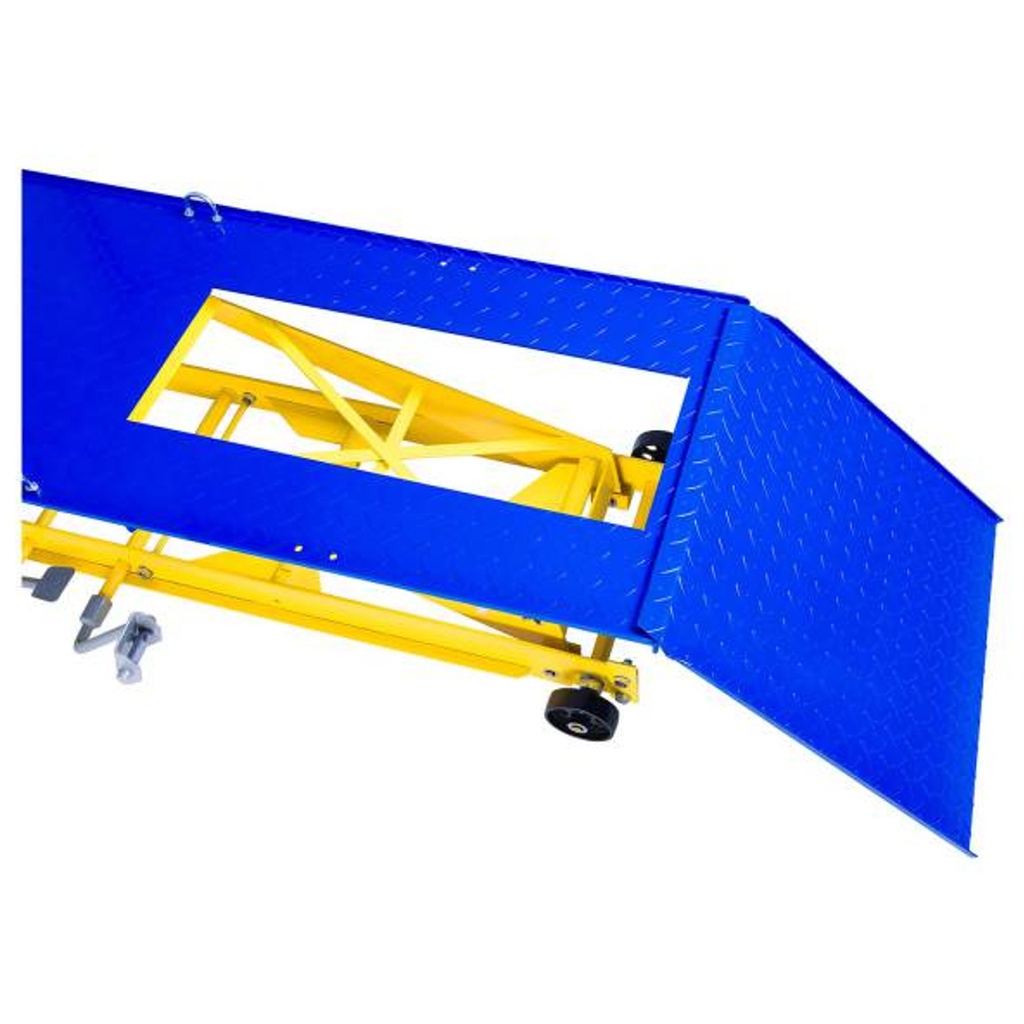

Secure fixation is guaranteed by the vise located at the front and 4 additional clamps located on the sides. It is easy to attach a rope or tape to them, which further stabilize the machine. The 2 screws at the base allow you to balance the equipment and position it even on an uneven surface. The MSW-MHB-450-780.1 elevator also has a removable panel to improve rear wheel removal.

The overrun allows the machine to be quickly inserted and later conveniently removed from the platform. In doing so, it is not necessary to lower the motorcycle elevator to the ground.

The4 casters (including 2 swivel casters) are a convenience for increased mobility. If necessary, it is easy to move the lift together with the repaired motorcycle without removing it. This is very practical, for example, in automotive service shops.

Product features:
- Max lifting capacity 450 kg
- 18 - 78 cm
- 4 fixing clamps
- Crank vice
- Foot operation

Technical specifications:

• - Model - MSW-MHB-450-780.1
• - Part number - 6318
• - Article condition - New
• - Maximum load capacity - 450 kg
• - Number of fixing clamps - 4
• - Lifting height - From 180 to 780 mm
• - Platform dimensions - 2060 x 550 mm
• - Overrun dimensions - 600 x 550 mm
• - Dimensions (DxSxW) - 260 x 67 x 100 cm
• - Weight - 153 kg
• - Shipping dimensions (DxSxW) - 217 x 62 x 27 cm
• - Shipping weight - 172 kg
