Manufacturer Number: MSW 10060184

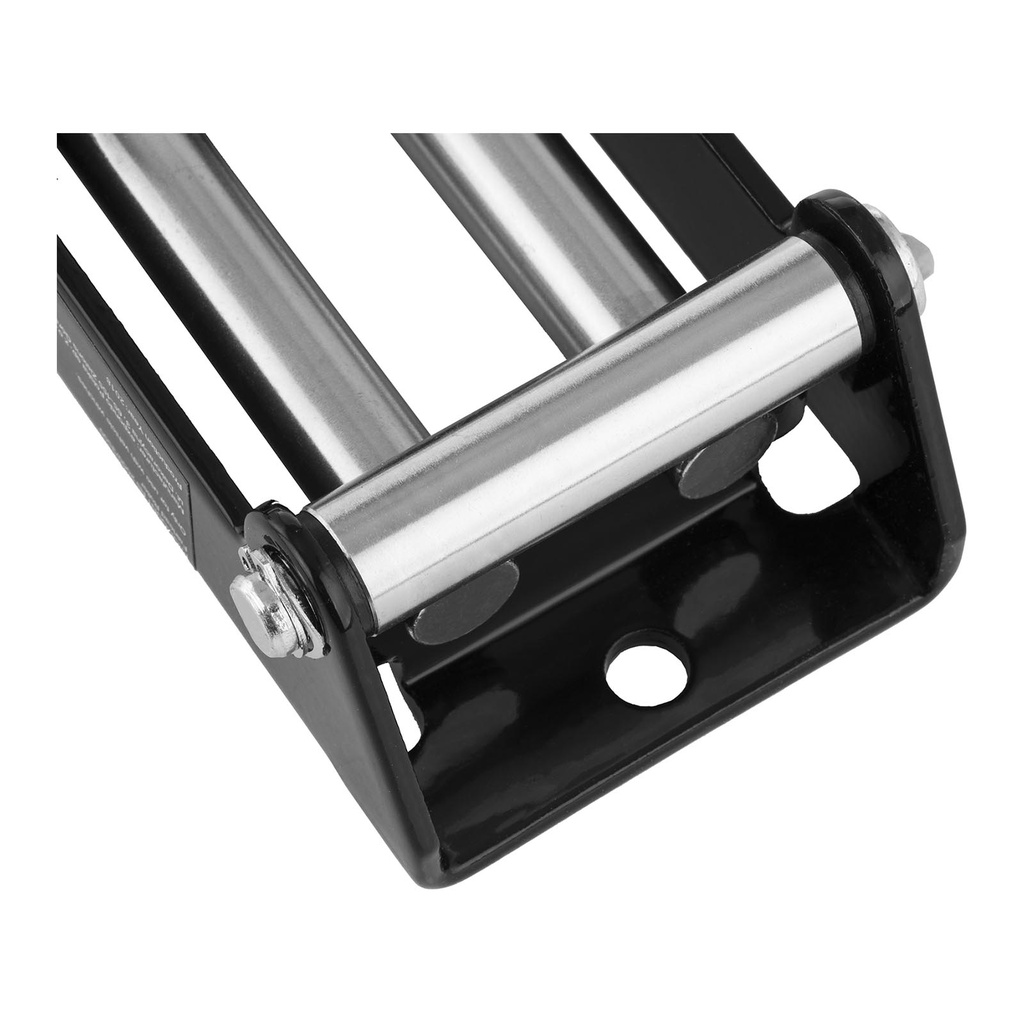

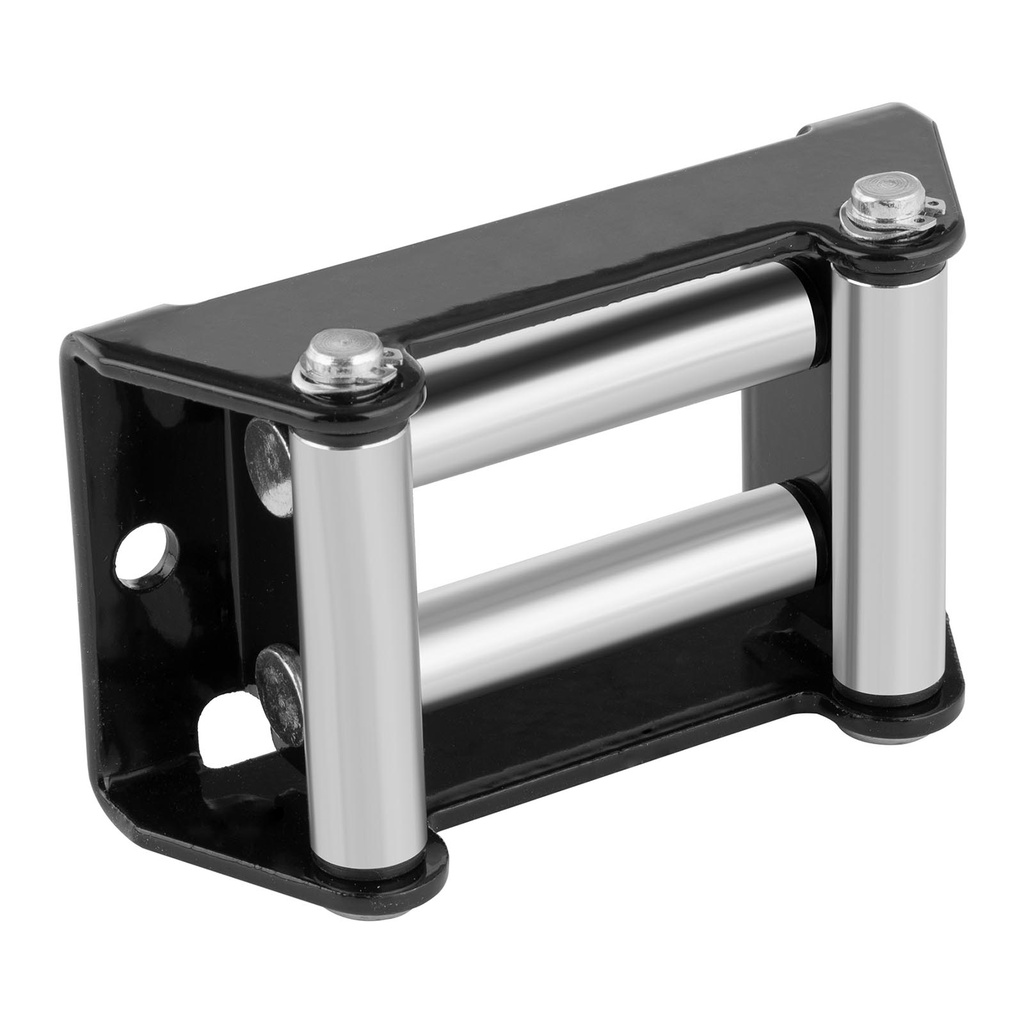

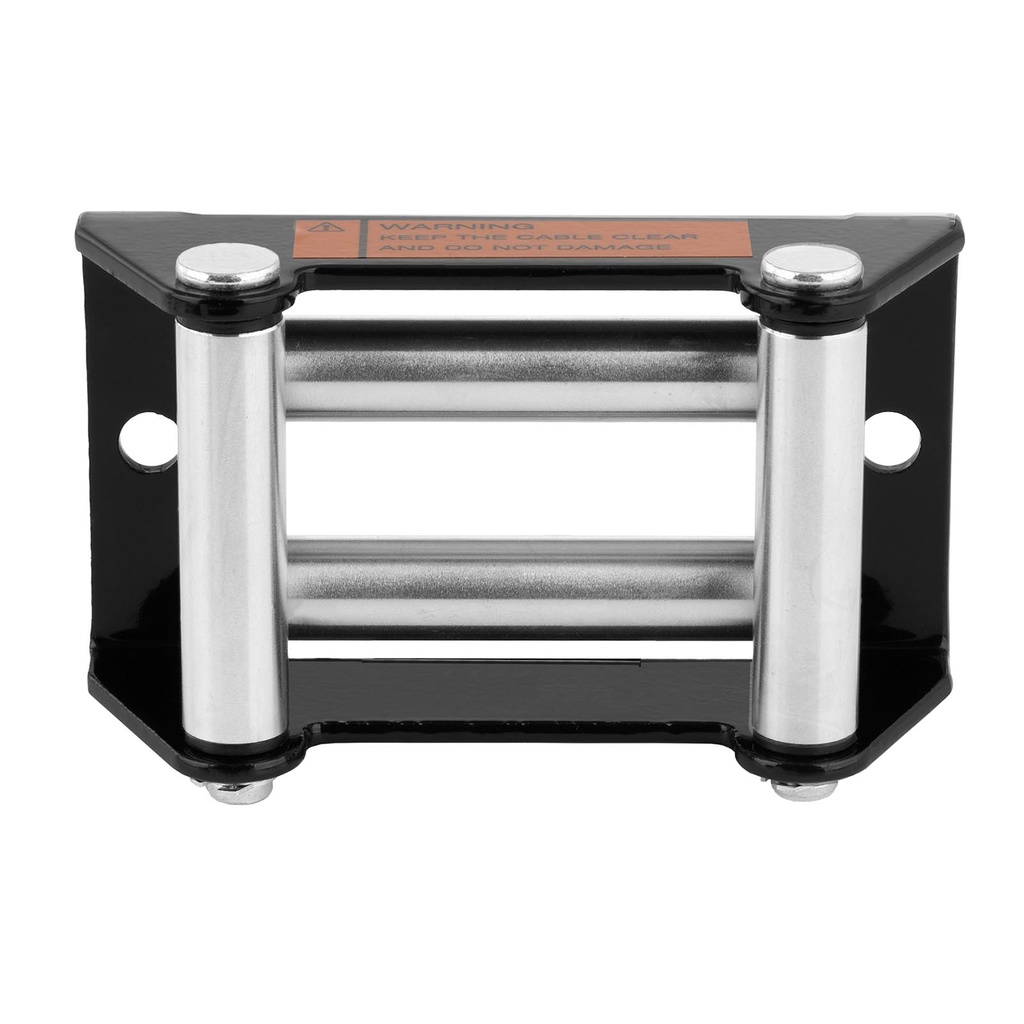

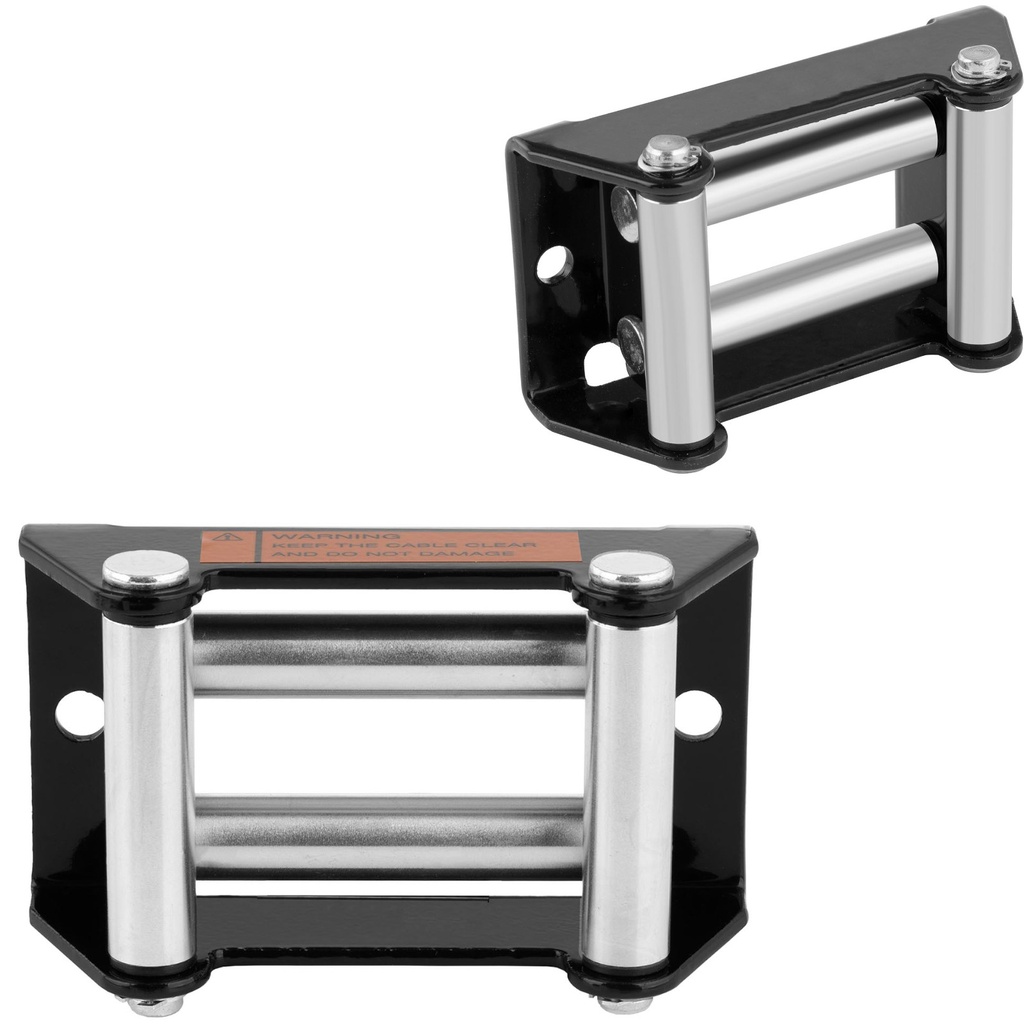

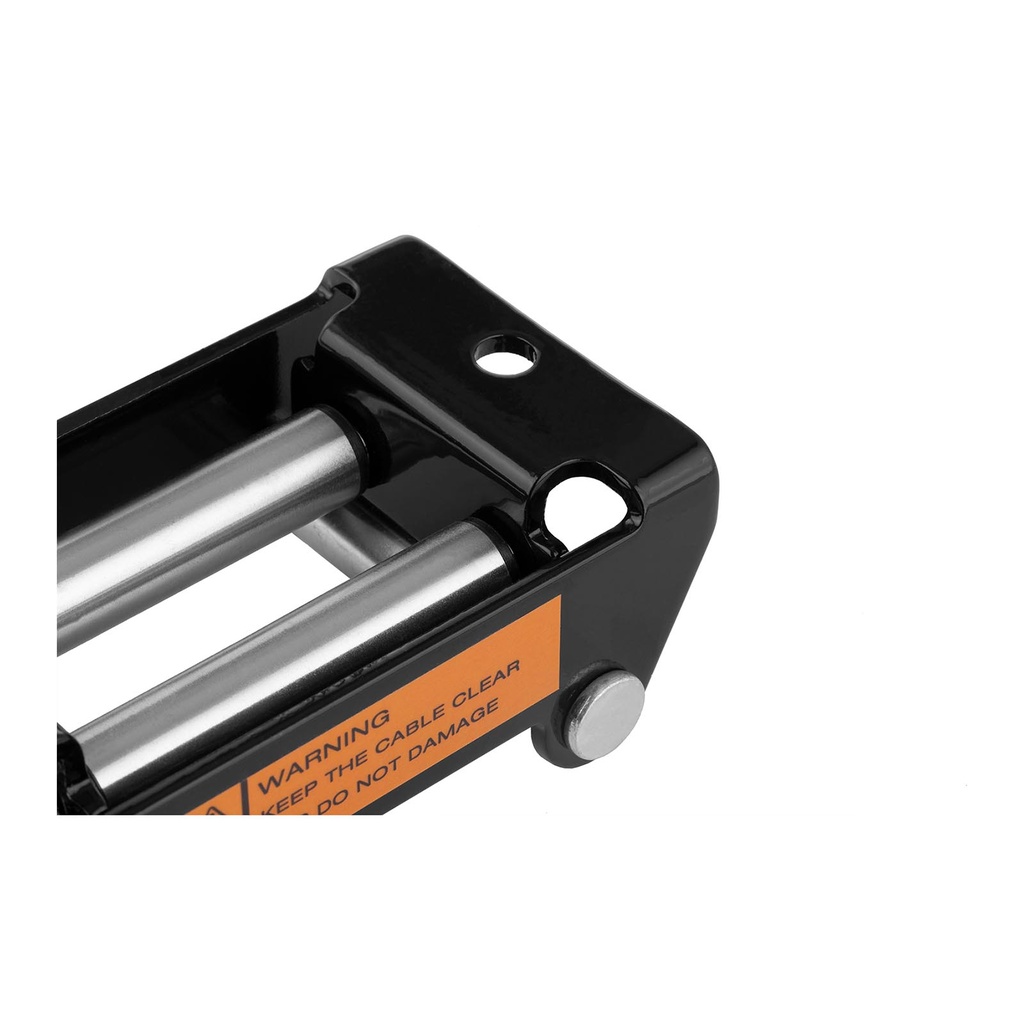

The roller guide for electric winches will effectively facilitate the winding of the rope on the drum of the device. This is made possible by a mechanism consisting of four independent rollers. They minimize friction during winding, which increases the life of the rope. The guide is suitable for winches with a load capacity of 907 to 1590 kg.
The durability of the product is due to the steel, which is characterized by resistance to mechanical damage. To increase the protection of the guide from weather conditions, it is painted with black paint.
Product features:
- - Versatility - fits various models of winches with pulling capacity from 907 to 1590 kg,
- - Functionality - 4 rollers guarantee smooth rope retraction,
- - Durability - paint-coated steel construction.
Technical parameters:
- - Model - PROMOUNT RS 2000/3500
- - Part number - 10060184
- - Article condition - New
- - Material - Steel
- - Coating - Black paint
- - Type of guide - Four rollers
- - Distance between horizontal rollers - 14.5 mm
- - Distance between vertical rollers - 66.3 mm
- - Roller diameter - 15.6 mm
- - Bolt hole spacing - 109 mm
- - Requirements for compatible winches - Matching bolt hole spacing
- - Pulling capacity - 2000-3500 lbs (907-1590 kg)
- - Dimensions (DxSxW) - 7 x 13 x 5 cm
- - Weight - 0.6 kg
- - Shipping dimensions (DxSxW) - 9 x 14 x 5 cm
- - Shipping weight - 0.7 kg
Included:
- Roller guide
