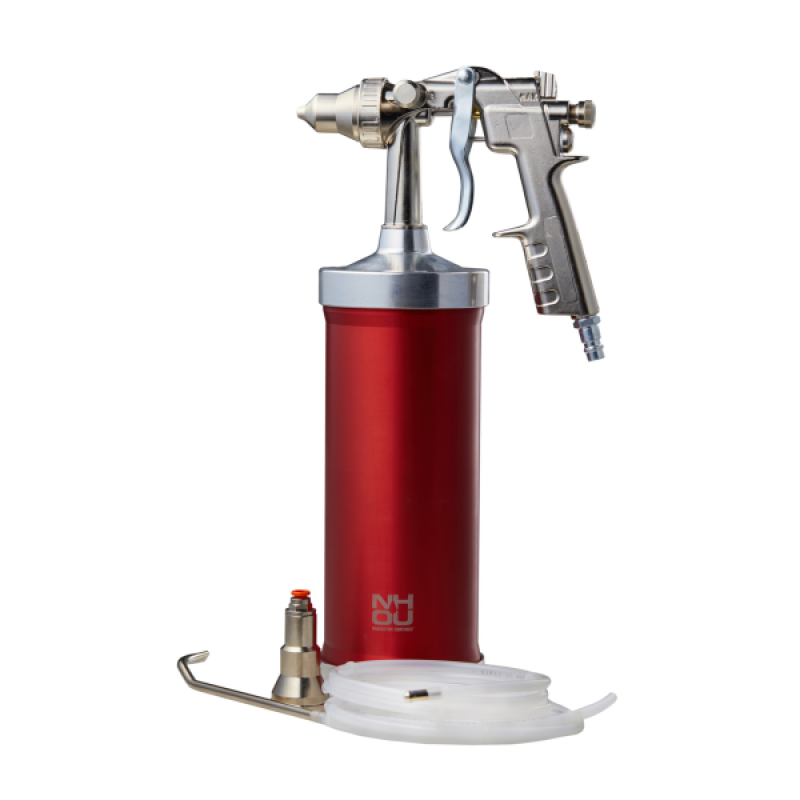

Spray gun for protective products with kit for body cavity applications (NHOU)

Weight: 1.30 kg

Conceived for the application of highly viscous materials and water-based paints,it is ideal for wood workers who need to paint small surfaces or need to use it for special painting application. Thanks to the low air consumption, the AS gun can work even with small compressors (min. 20 HP). The feed cup under pressure and the particular kind of nozzles enable an accurate and continuous diameter adjustment and jet extension which regulate the spray cap for any kind of paints used. The needle and the nozzles are made of stainless steel while the gun body features a nickel-plating surface treatment. The air- and paint-tight seals feature an automatic backlash recovery system which ensures a long service life and reduces maintenance costs.

In all models it is possible to:

- Detach the suction pipe for an easy cleaning of the product passages.

- Change the spray gun version with the variuos optional kits.

TECHNICAL FEATURES

• FIELDS OF APPLICATION: application of under-body coating products and wax rust inhibitors in tin or supplied loose.

• POWER SUPPLY: Compressed air

• MATERIALS USED:

Body: Die-cast aluminium (Al Si 11 Cu 2 (Fe) UNI EN 1706)

Lever: Zinc-plated steel (Fe P01-P02-P04 UNI EN 10025)

Rivet: Zinc-plated steel (CB4FF EN 10263/2)

Valve: Acetal resin Ultraform® N2320/Brass (CW614N UNI-EN 12164) / NBR 70 Feed cup: Anodized Aluminium

Suction pipe: Aluminium pipe Ø 16x14

• OPERATING PRESSURE: 0.5÷3.5 bar (7.25 ÷ 50.75 psi )

• MAX OPERATING PRESSURE: 8 bar (116 psi)​
