Suspended beam crane cart with chain 3m 1000kg 1T

Manufacturer code: 10030429

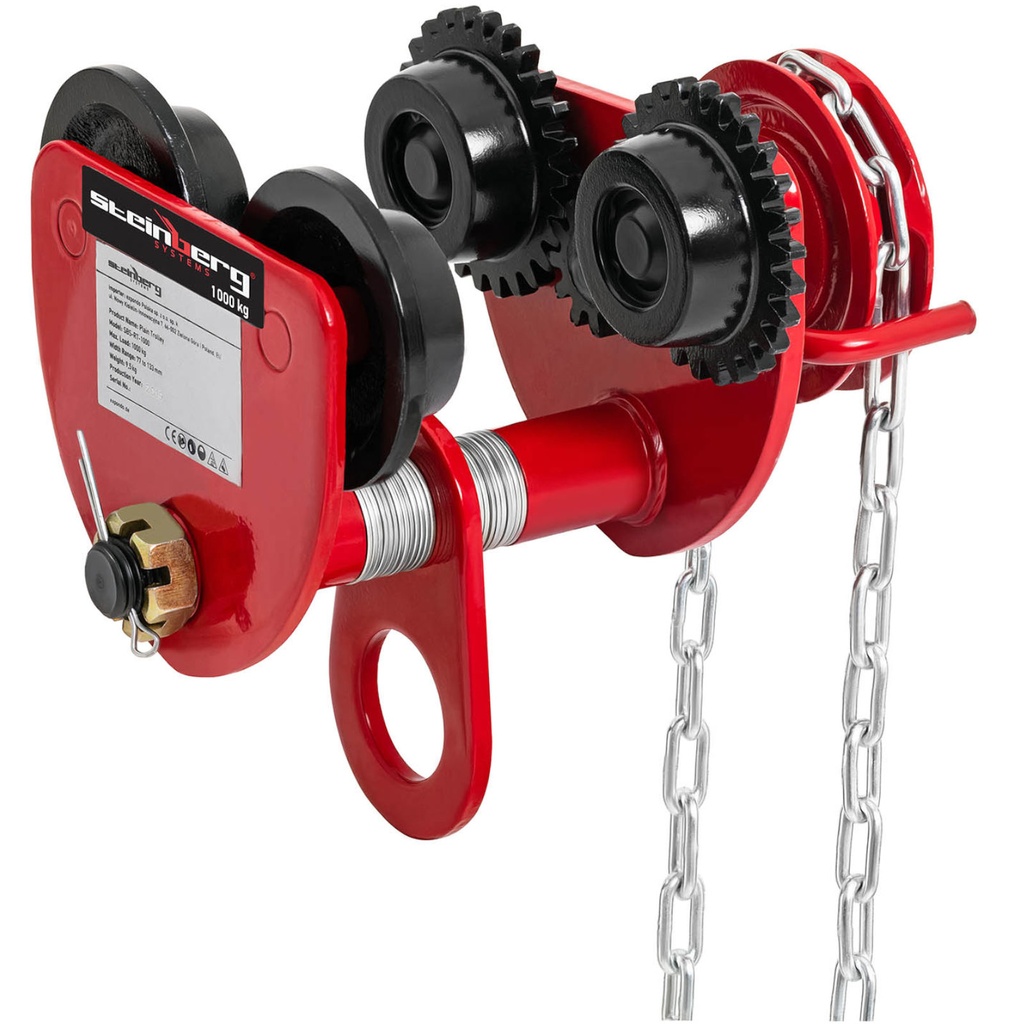

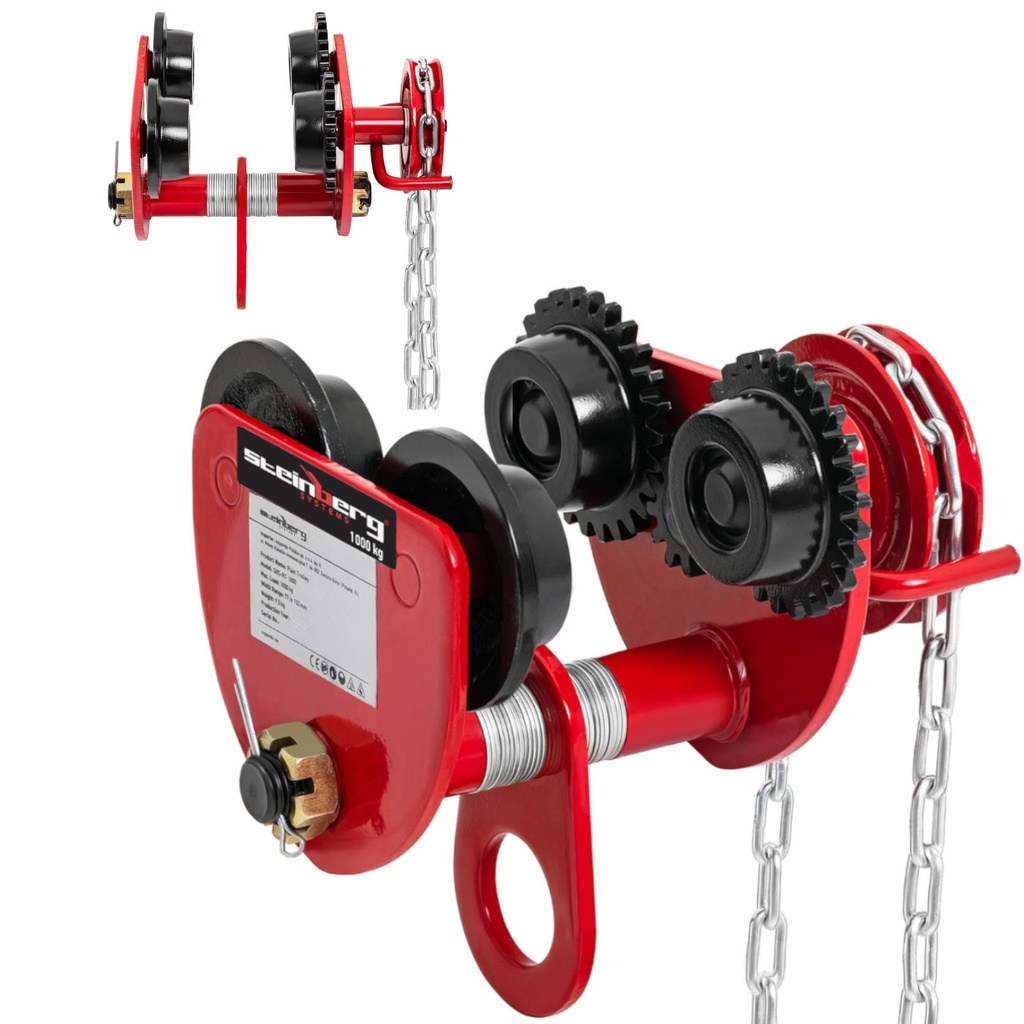

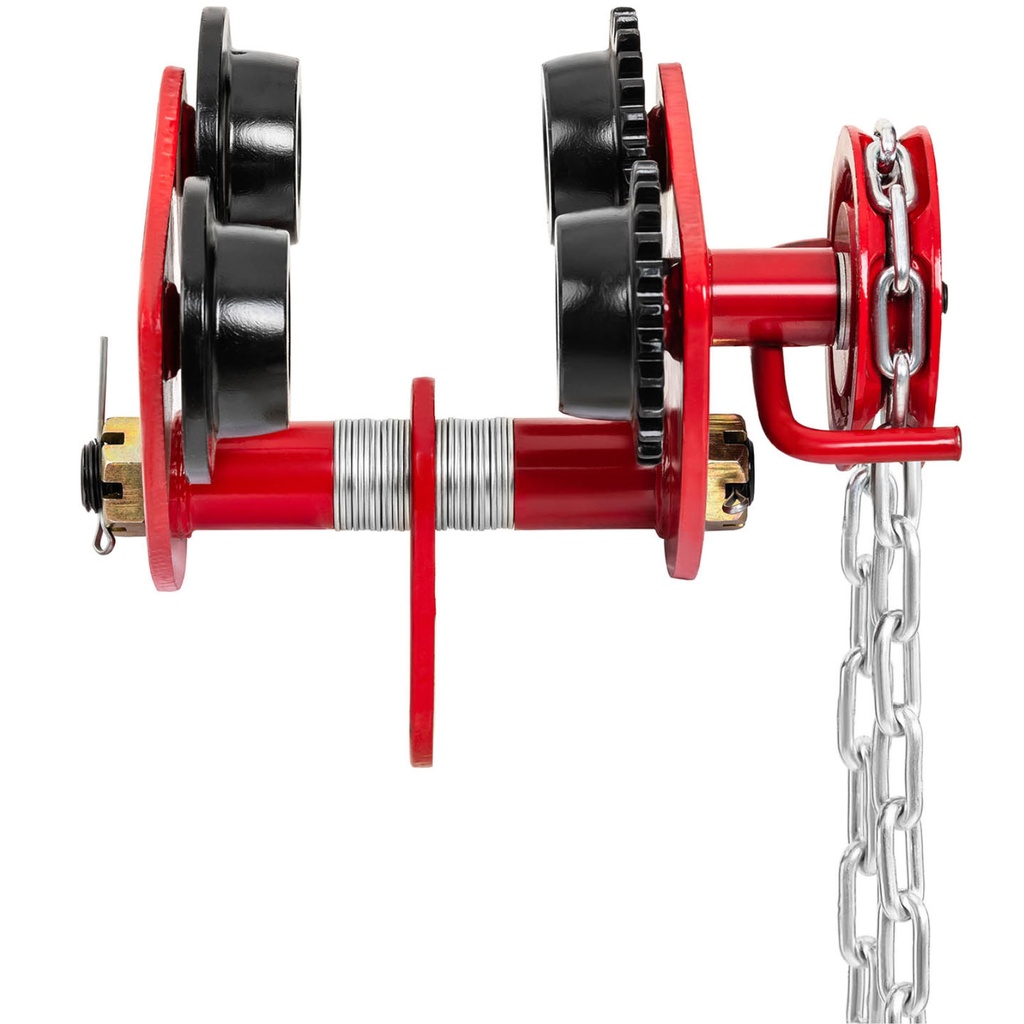

Steinberg Systems brand crane cart is a device that will be ideal for easy movement of heavy loads in a straight line, such as along a T-bar in industry, including factories such as steel mills, shipyards, recycling plants, scrap yards, etc.

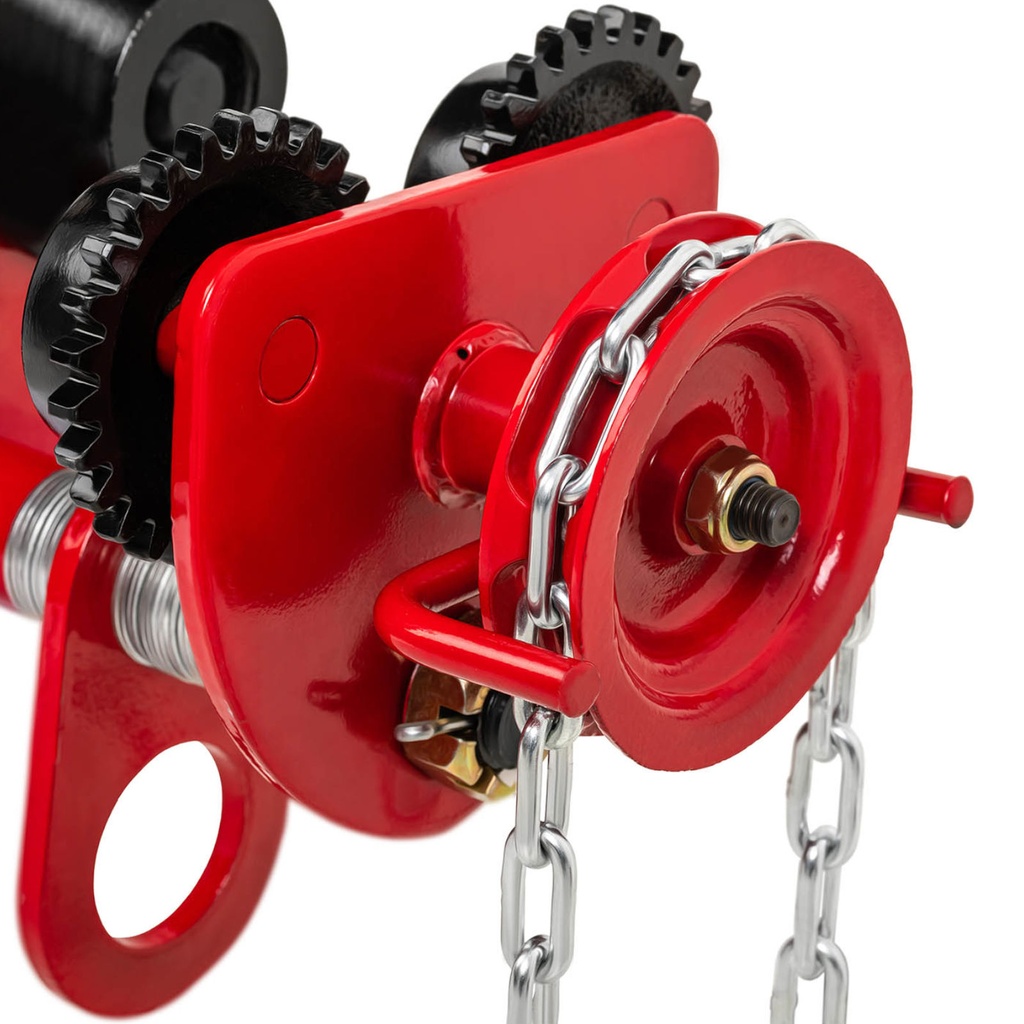

Pulling on a 3-meter chain moves a cart equipped with a gearbox. With its help, the cart is moved in two directions.
The maximum load capacity of the cart is1000 kg and the safety factor is 1.25 of the maximum load capacity. The width adjustment in the range of 77-133 mm allows the device to be mounted on various beams. The cart is made of steel, which guarantees work for a very long time and has an anti-corrosion coating. Four steel casters allow quick movement on the gantry crane and their double system allows them to fit both straight and tapered guides.

Product Features:

• - Easy operation - 3 m long chain
• - Robustness - lifting capacity up to 1000 kg,
• - Protection - safety factor of 1.25 max load capacity,
• - Mobility - 4 casters made of steel,
• - Durability - durable construction,
• - Flexibility - width adjustment.

• - Model - SBS-RT-1000
• - Part number - 10030429
• - Article condition - New
• - Maximum load capacity - 1000 kg
• - Wheels - 4 x steel
• - Rod material - C45 steel
• - Safety factor - 1.25 max. load capacity
• - Adjustment range - 77-133 mm
• - Chain length - 3000 mm
• - Dimensions (DxSxW) - 27 x 20.5 x 23.5 cm
• - Weight - 9.75 kg
• - Shipping dimensions (DxSxW) - 26 x 16 x 22 cm
• - Shipping weight - 10,15 kg

• - Crane cart
