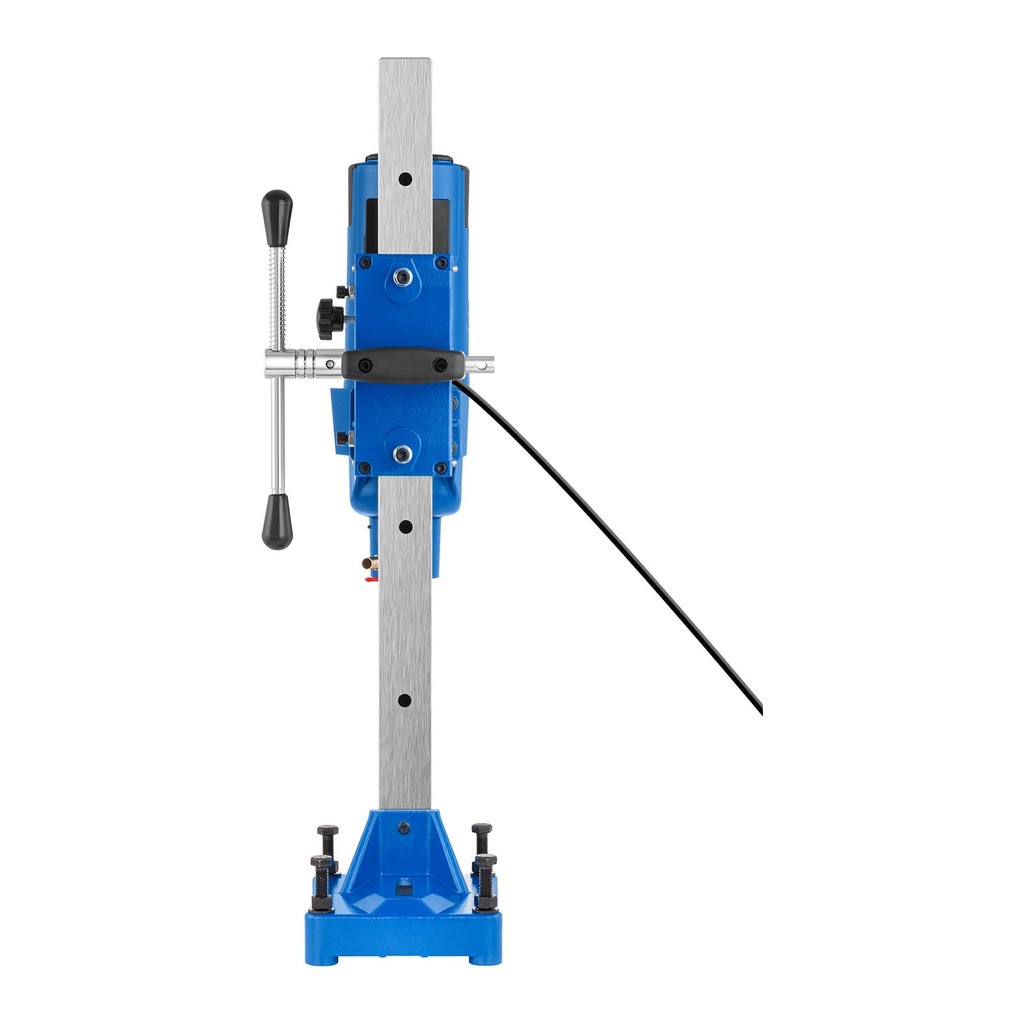

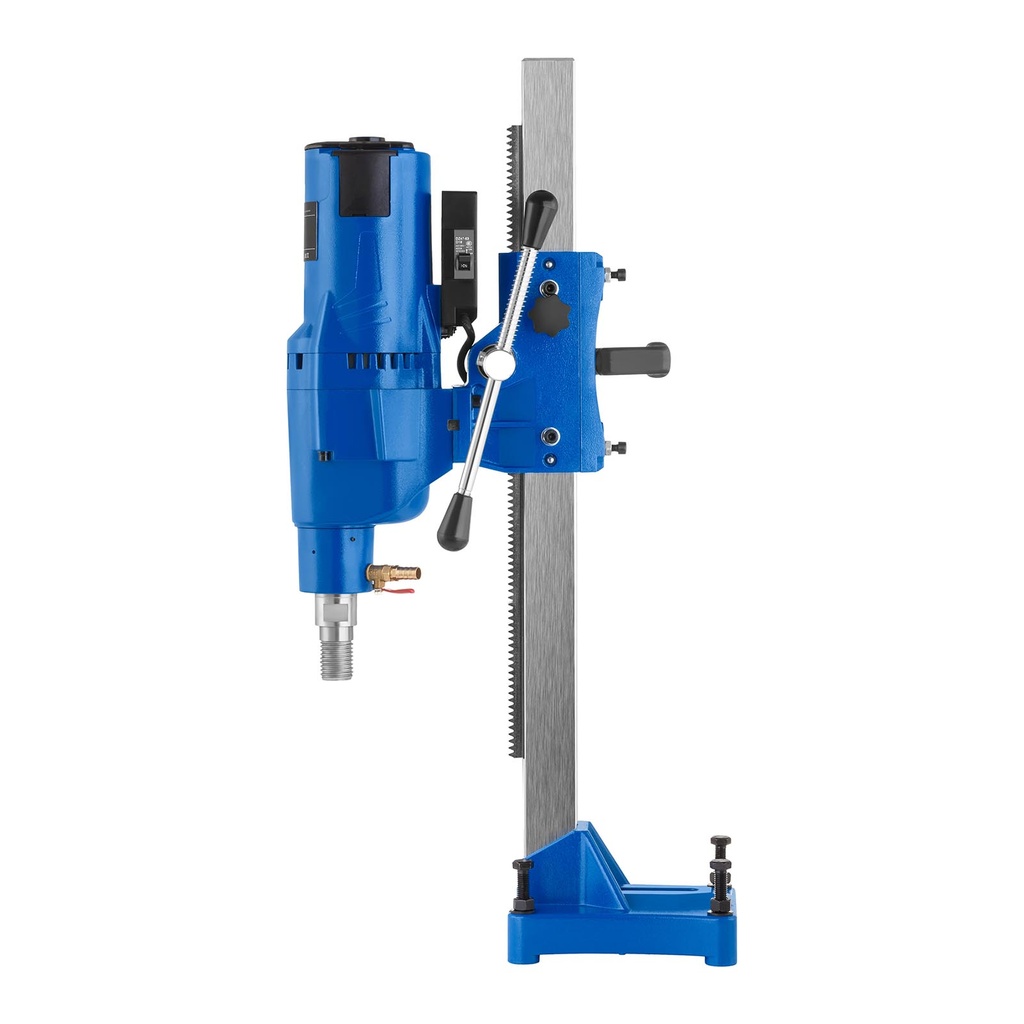

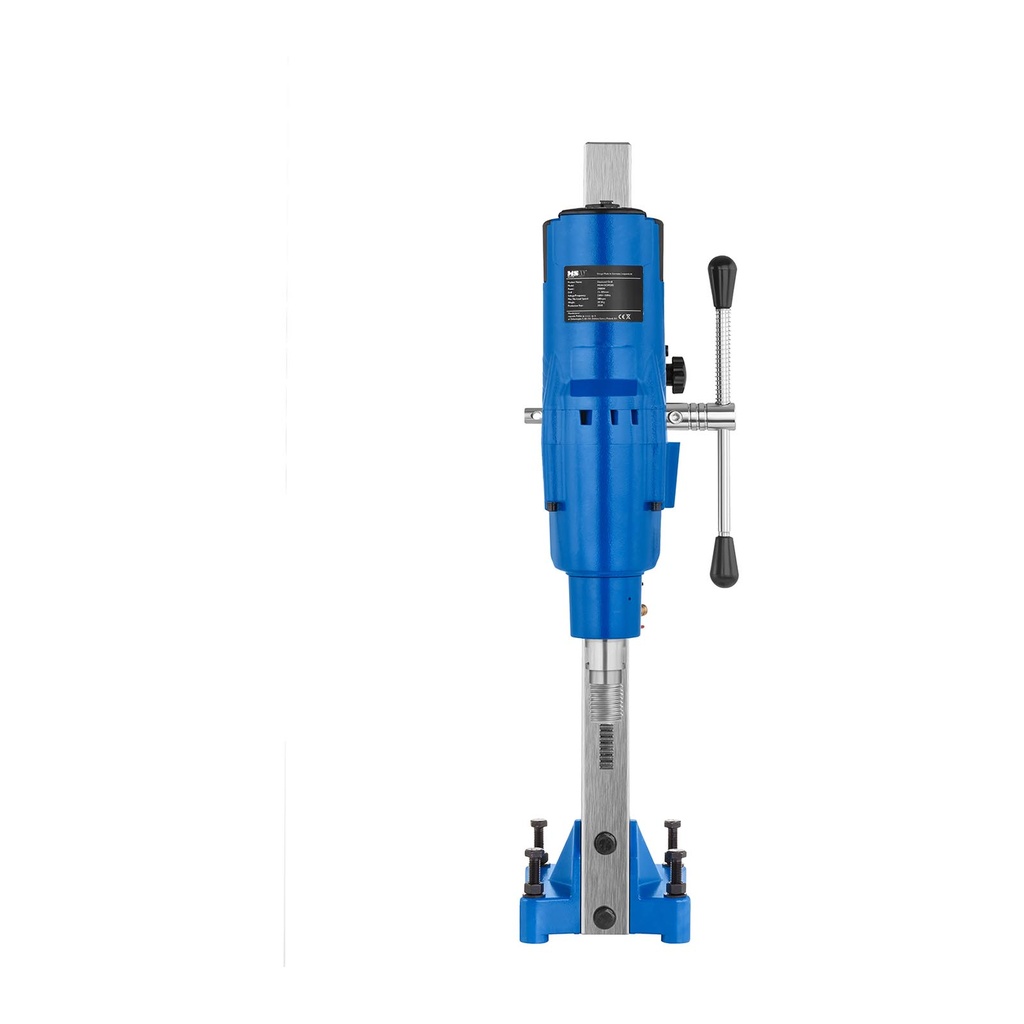

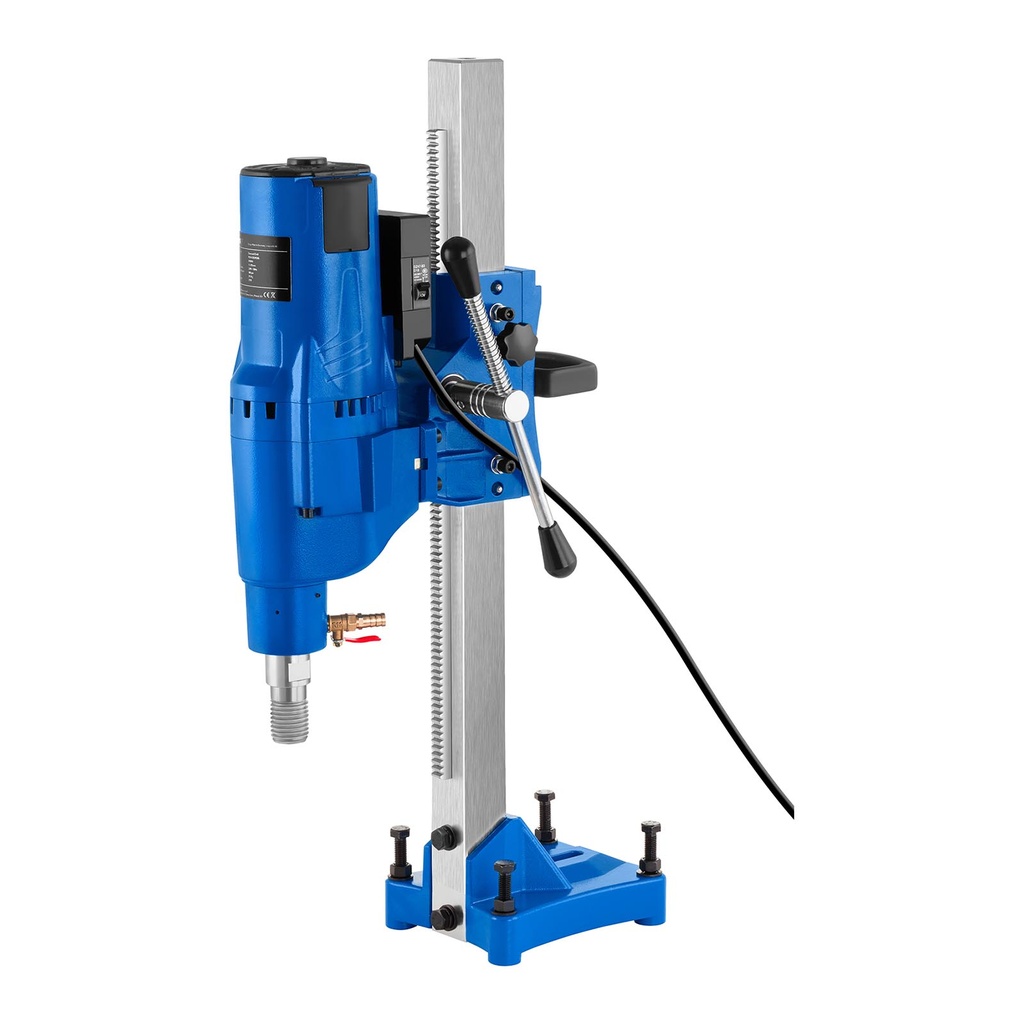

Vertical concrete drill rig 205 mm 3900W MSW-DDM205

Manufacturer number: MSW 10060436

The MSW-DDM205 professional drilling machine will be suitable for processing hard materials such as brick, concrete and stone thanks to its robust construction. The 3900-watt motor guarantees efficient operation and a drilling speed of up to 580 rpm. A convenient T-handle allows you to adjust the depth of drilling, and the guide provides smooth up and down movement from 0 - 510 mm.

To increase the efficiency of work, the drills are equipped with a special connector and hose, which can be connected to an external device responsible for wet work. This will extend the life of the crowns and reduce the risk of damage to the workpiece. Diamond crowns with diameters up to 205 mm are suitable for the device.

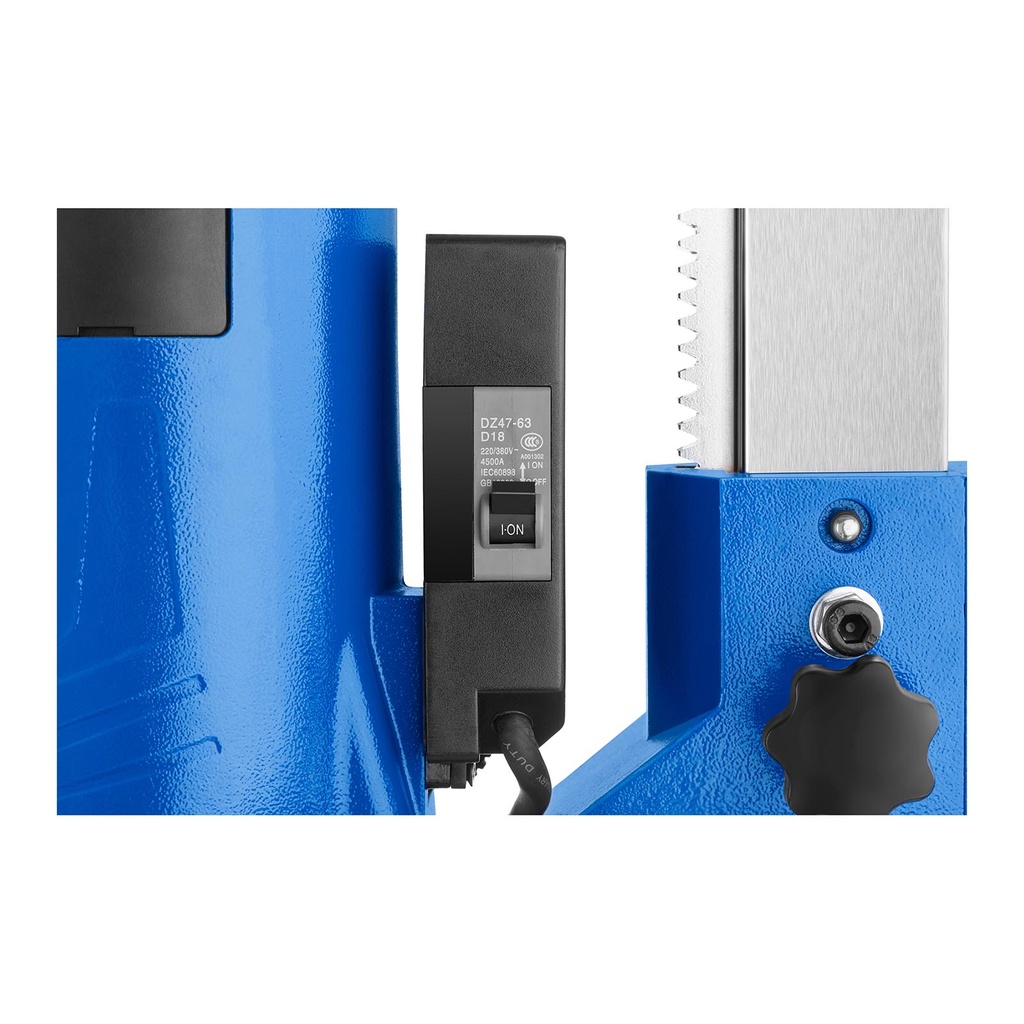

The safety of work on the drill is ensured by the PRCD (residual current device) module, which prevents the machine from turning on in the event of a short circuit. It also ensures that the device will not start uncontrollably when connected to a power source.

Product features:

• - Reliability - robust design allows wet and dry work,
• - Multitasking - ability to drill in a variety of hard materials such as brick, concrete, reinforced concrete and stone,
• - Versatility - compatibility with diamond drills up to 205 mm in diameter,
• - Safety - built-in PRCD module.

• - Model - MSW-DDM205
• - Part number - 10060436
• - Housing material - Aluminum, steel, plastic
• - Power - 3900 W
• - Voltage/frequency - 230V/50Hz
• - Sound pressure - 70 dB(A)
• - Sound power - 85 dB(A)
• - Max. drilling diameter - 205 mm
• - Drill attachment diameter - 1 1/4"
• - Water hose connection diameter - 1/2"
• - Length of water hose - 3.1 m
• - Max. speed (no load) - 580 rpm
• - Guide range - 0-510 mm
• - Dry and wet drilling - Yes
• - PRCD module - Yes
• - Power cord length - 3.2 m
• - Dimensions (DxSxW) - 29 x 20 x 91.5 cm
• - Weight - 20 kg
• - Shipping dimensions (DxSxW) - 85.5 x 36 x 24 cm
• - Shipping weight - 22.5 kg

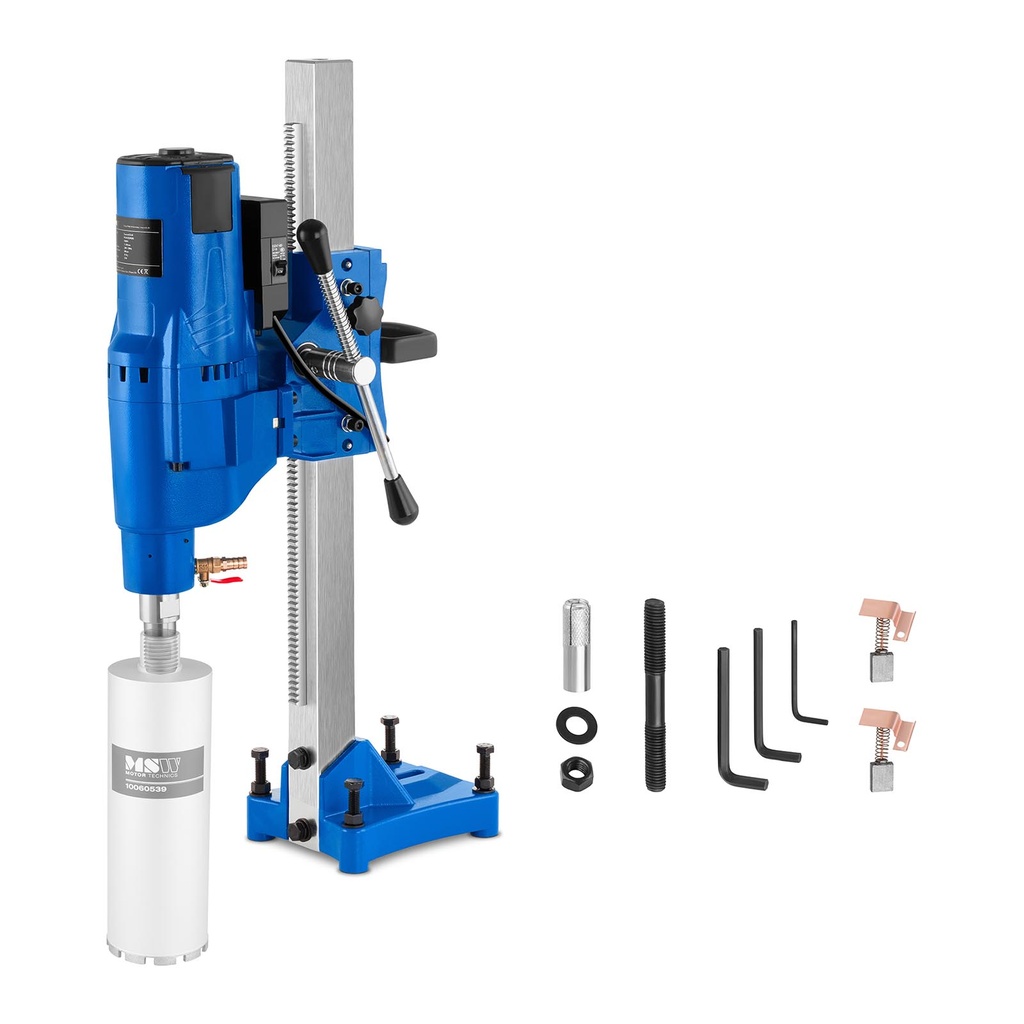

• - Concrete drill rig
• - Water hose 3.1 m
• - Rotating handle

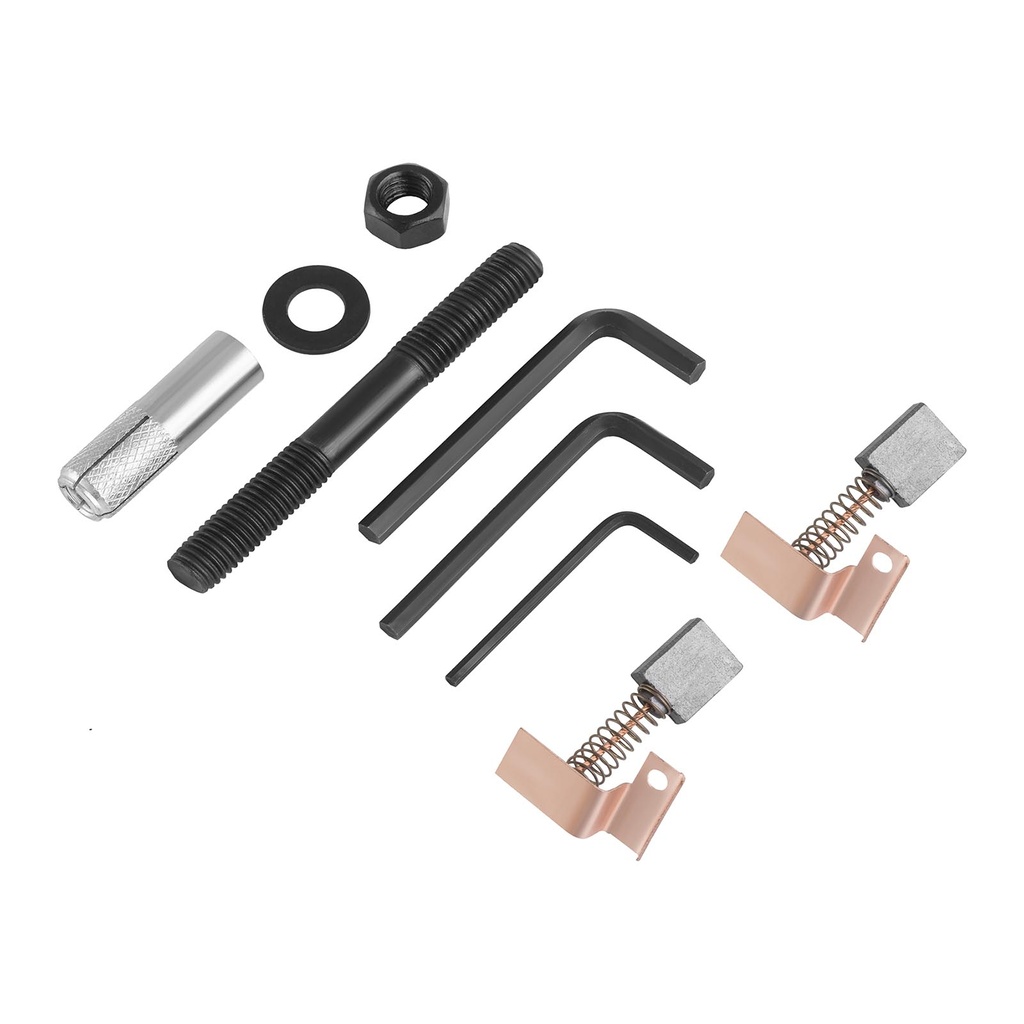

• - Allen wrenches - 3 pcs.
• - Rear guide handle
• - Anchor bolt
• - Carbon brushes - 2 pcs.

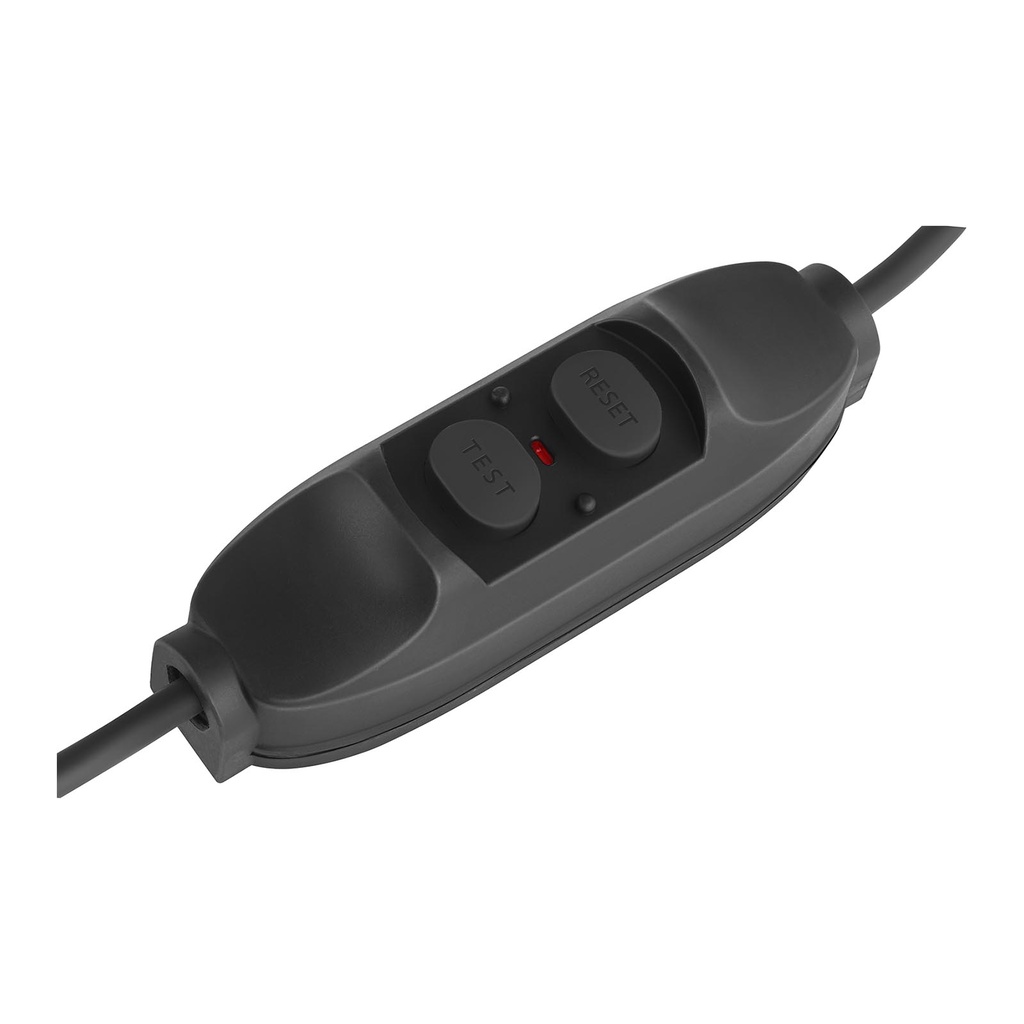

• - Power cord 3.2 m with PRCD safety module
• - Instruction manual EN
