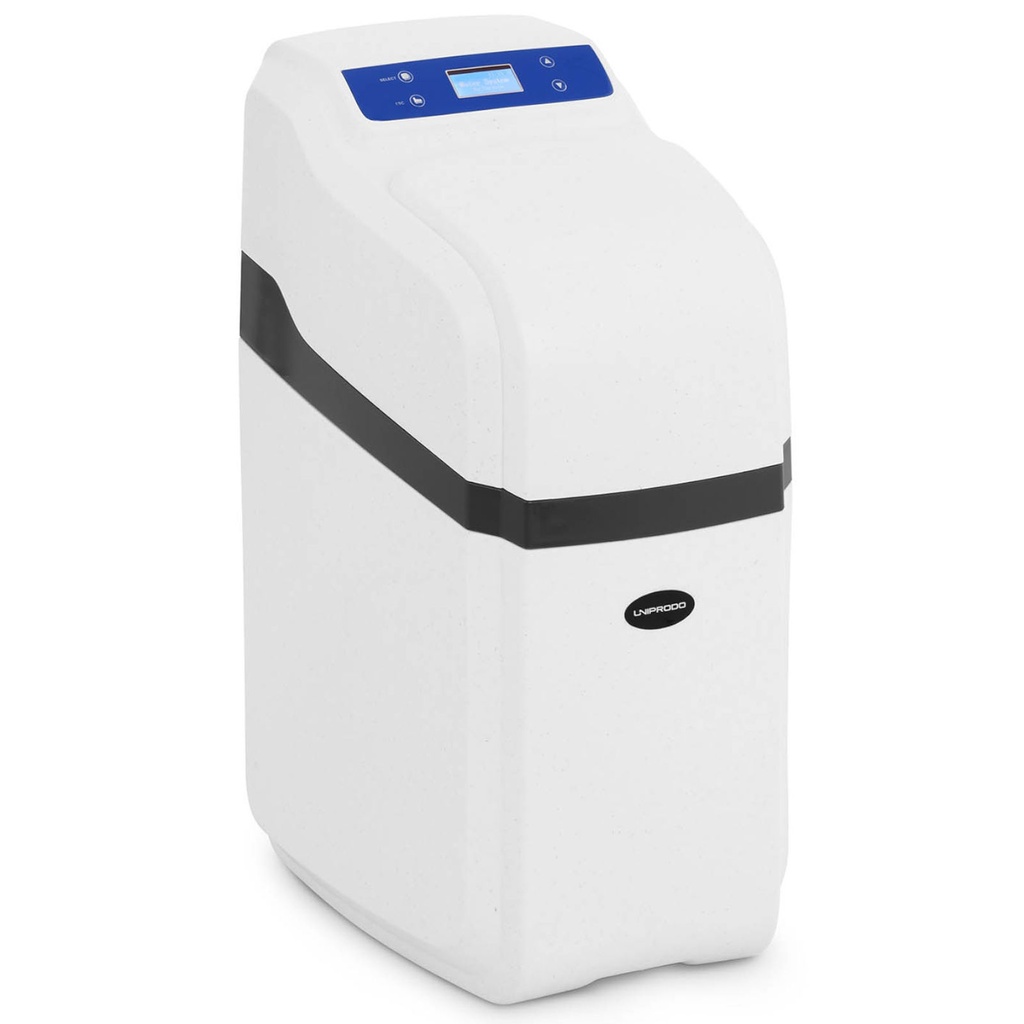

Water descaler tap ASD2 12 l 3.3 W LCD

Manufacturer code: 10250398

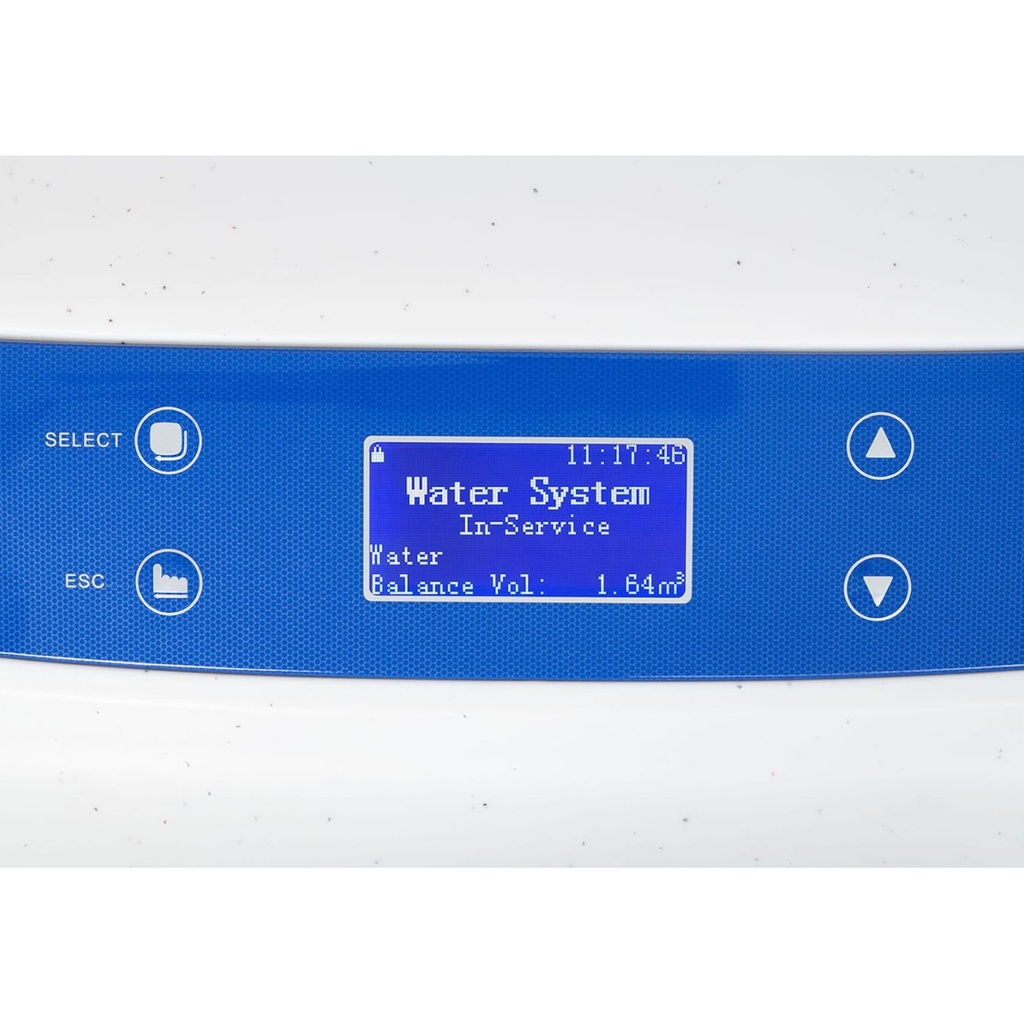

Uniprodo brandwater softener is equipped with high-end automatic valve ASD2 with built-in processor and electronic water meter, which monitors water flow, adjusting the regeneration process accordingly. Water flow rate in the range of 1.4 - 2.6^m3/h, working pressure 0.15 - 0.5 Mpa; 1.5 - 5.0 bar, ion exchange resin tank with a capacity of 12 l. You will connect the product both at the main valve or water intake, as well as a specific device. The device has a panel with LCD display. The lock function protects against accidental switching of parameters. To regenerate the ion exchange bed, salt is used, which needs to be added regularly. With a hardness of 50 ppm, it should be replenished after every 2000 l of water. The regeneration of the ion exchange bed is carried out in one of two ways: the volumetric mode starts when a specific amount of water flows through, while the timed mode starts regeneration after a certain number of days. Power consumption during resin regeneration is 3.3 watts. During the rest of the time, power is consumed only for the display, and its value is 1 W.

Product features:

• - ASD2 automatic softening valve,
• - Two regeneration modes - volumetric or timed,
• - Resin tank 12 l,
• - Water flow rate 1.4-2.6^m3/h,
• - LCD panel.

• - Model - UNI_WATERSOFTENER_1000A
• - Part number - 10250398
• - Item condition - New
• - Power supply - 12 V 1500 mA switching adapter
• - Voltage - 100-240V ~ 50/60 Hz
• - Power - During regeneration: 3,3 W
• - Valve type - ASD2
• - Housing material - Plastic
• - Suitable for - 1 - 6 people
• - Resin volume - 12 l
• - Display - LCD

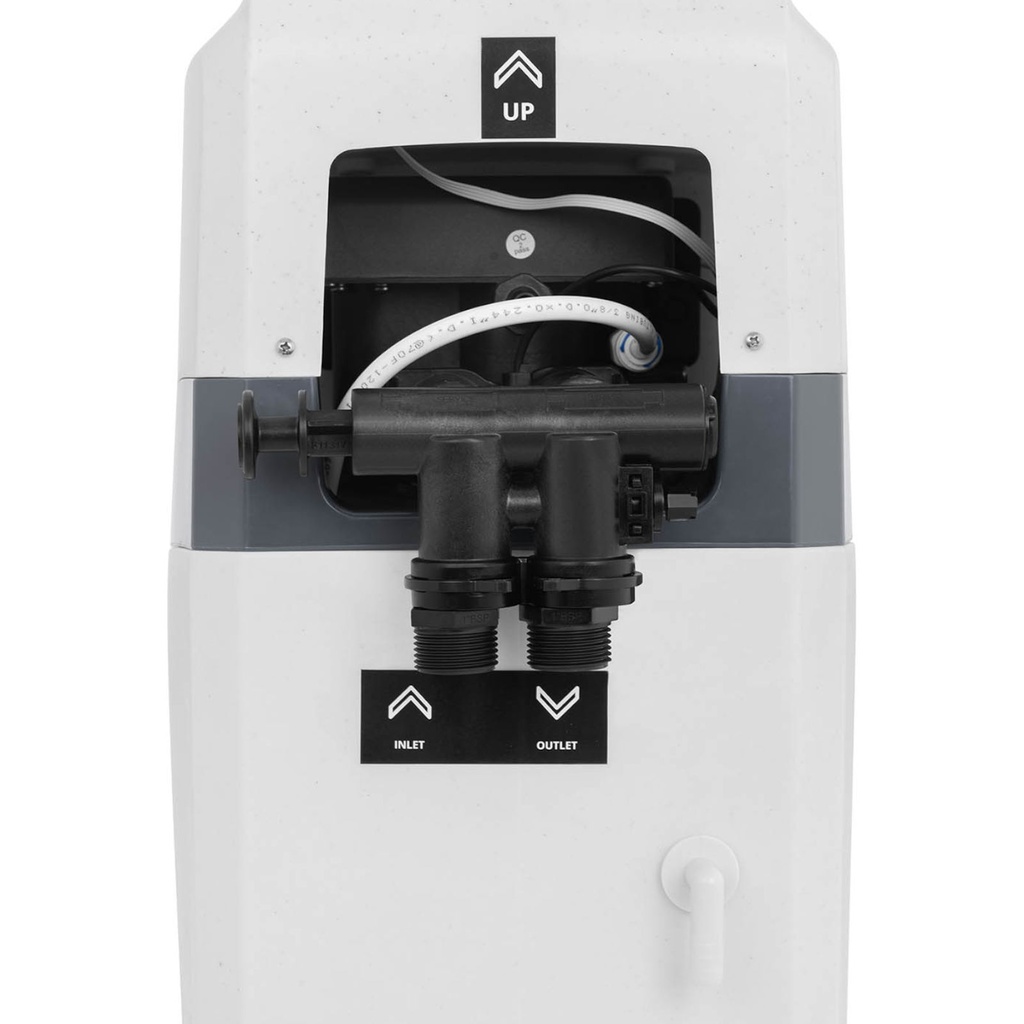

• - Inlet size - 1"
• - Outlet size - 1"
• - Drain size - Ø12 mm
• - Drain connection (sewer) - Yes
• - Central pipe size - 35
• - Water flow rate - 1.4 - 2.6 m3/h
• - Operating pressure - 0.15 - 0.5 Mpa (1.5 - 5.0 bar)
• - Regeneration of resin - Automatic, using special salt
• - Regeneration time - 46 min
• - Salt consumption during regeneration - 1.65 kg
• - Recommended maximum flow rate - 1 m³/h
• - Capacity at 10°dH - 4700 l
• - Capacity at 20°dH - 2300 l
• - Max. salt reserve - 20 kg
• - Pressure drop - 5%
• - Operating temperature range - 1 - 39°C
• - Power cord - 1.5 m
• - Operating instructions - Yes
• - Dimensions (DxSxW) - 52 x 31.5 x 67 cm
• - Weight - 20 kg
• - Shipping dimensions (DxSxW) - 52 x 36 x 74 cm
• - Shipping weight - 25.75 kg

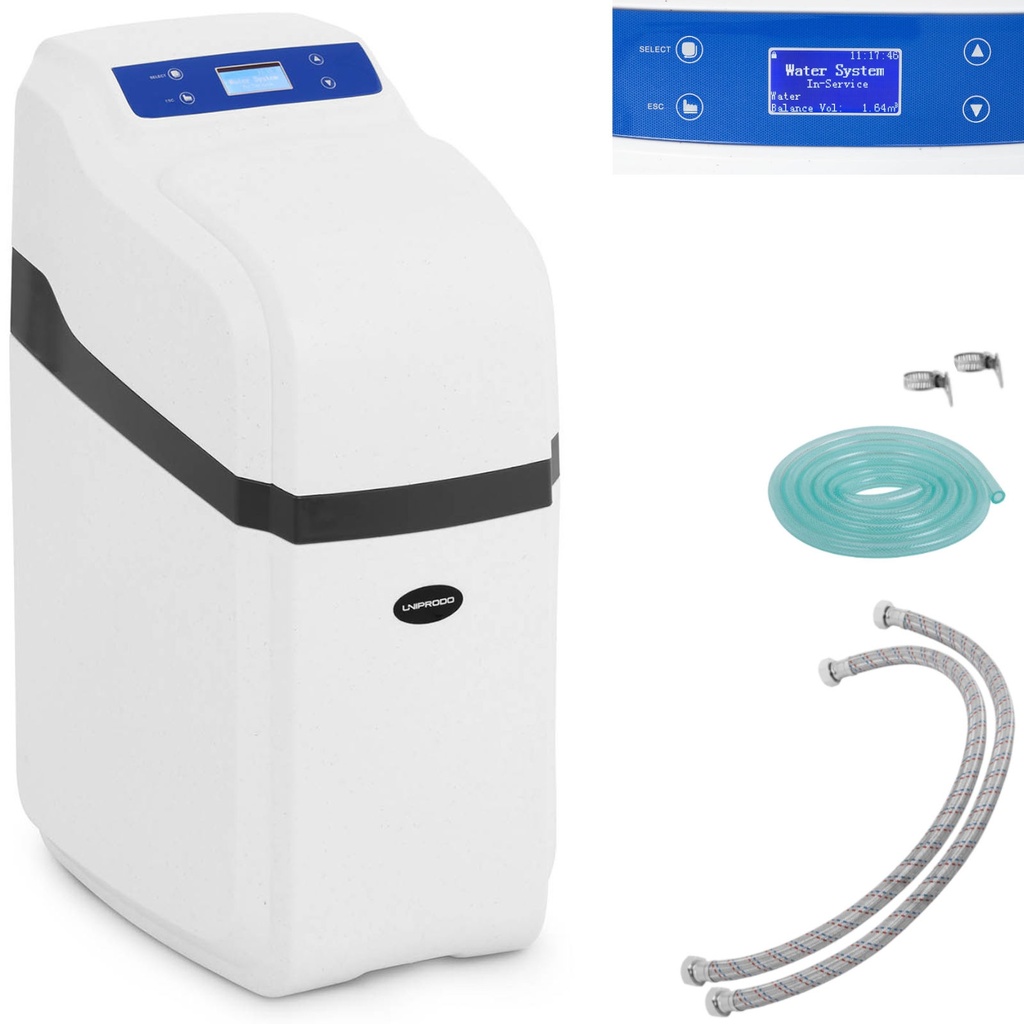

• - Water softener,

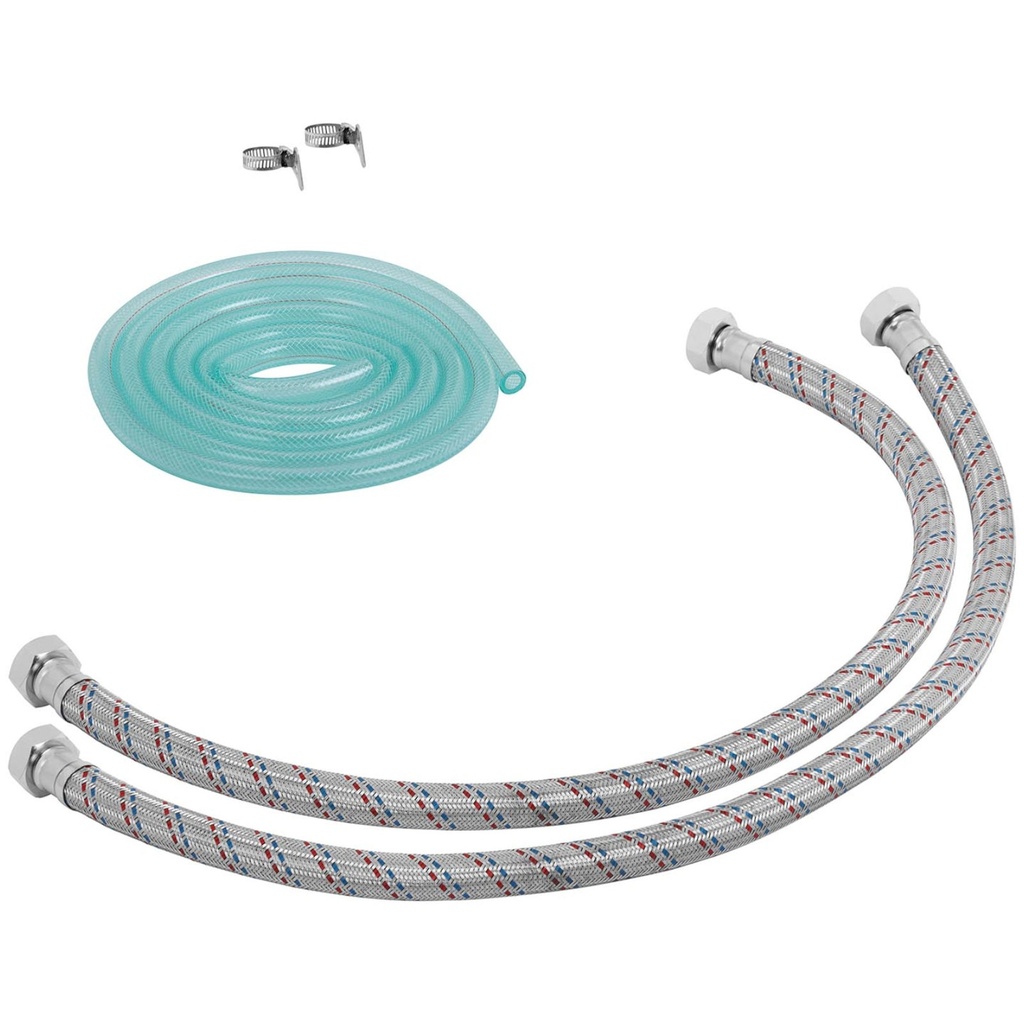

• - Accessories,
• - Operating instructions.
