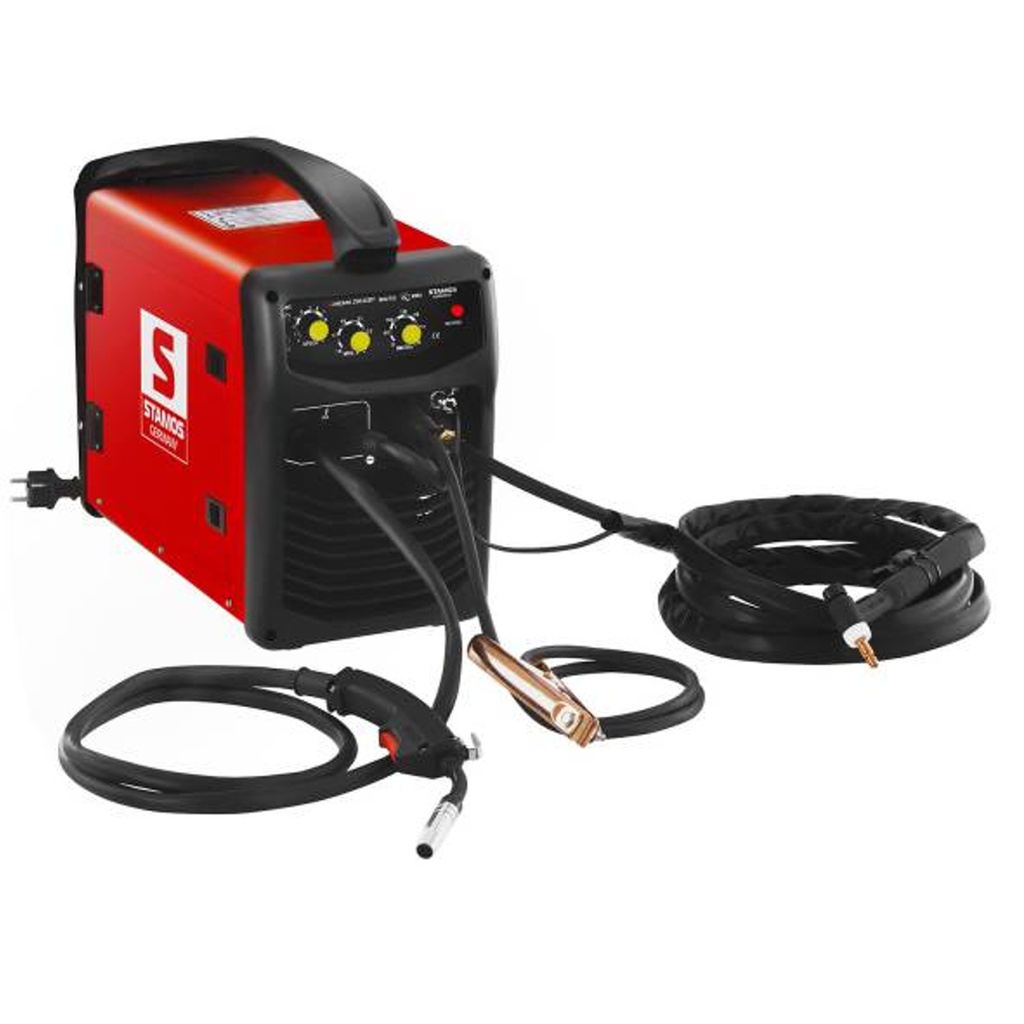

Welder semi-automatic welding machine TIG MIG/MAG MMA 250A IGBT Stamos Germany + wire 5kg

Manufacturer name: S-MIGMA250.IGBT

The multifunctional semi-automatic welding machine from Stamos Germany will allow you to process metal parts, thanks to its ability to work in MIG, MAG, FCAW, TIG and MMA modes. The S-MIGMA 250.IGBT, thanks to the infinitely adjustable welding current (max 250 A) , allows you to precisely determine the right value, which increases the convenience of work.

The welder uses modern IGBT inverter technology, which guarantees a high degree of reliability, as well as efficient operation and fast switching between functions. This is due to the three-contact semiconductor element, which is short-circuit-proof.

Product features:

• - Versatility - can be welded in MIG, MAG, FCAW, TIG and MMA modes,
• - Practicality - suitable for processing parts made of various weldable metals,
• - Efficiency - use of modern IGBT technology guarantees precise operation and safety against short circuits,
• - Convenience - infinitely adjustable knobs allow precise setting of inductance, welding current and wire feed rate,
• - Mobility - convenient handle and small size make it easy to carry the welder,

• - Model - S-MIGMA 250.IGBT
• - Part number - 2208
• - Article condition - New
• - Power supply - 230 V / 50 Hz
• - Rated input current - MIG 29.5 A / MMA 33 A / TIG 22.5 A
• - Maximum input current - MIG 38 A / MMA 43 A / TIG 29 A
• - Idling voltage - 62 V
• - MIG current - 50 - 250 A
• - MMA current - 10 - 250 A
• - TIG current - 10 - 250 A
• - Welding current in 60% duty cycle - 250 A (MIG/MMA/TIG)
• - Welding current in duty cycle 100% - 193 A (MIG/MMA/TIG)
• - Duty cycle - 60%
• - Welding thickness - 0.5 - 10 mm
• - Diameter of TIG electrodes - 0,5 - 4 mm
• - MMA electrode diameter - 1.6 - 5 mm
• - Cooling - Fan
• - Handle cooling - Gas
• - Hot Start - Yes
• - Wire feeder - 2.5 - 13 m/min
• - MMA holder cable - 1.4 m
• - Grounding cable - 1.3 m
• - MIG handle cable - 1.75 m
• - Cable with TIG handle - 3,7 m
• - Safety class - IP21
• - Insulation class - F
• - Dimensions (DxSxW) - 54,00 x 24,00 x 41,00 cm
• - Weight - 15.00 kg
• - Shipping dimensions (DxSxW) - 64.00 x 34.50 x 44.50 cm
• - Shipping weight - 27.05 kg

• MIG/MAG - Using the MIG method, you can conveniently weld stainless steel, tin, copper and other non-ferrous metals, while when welding low-alloy, high-alloy or structural unalloyed steels, the MAG mode will work well

• MMA (shielded electrode) - will work well indoors and outdoors. It does not require shielding gas and works well for welding thin materials (from 1.5 mm thick), for example: copper, iron, nickel, aluminum or alloys such as steel and cast iron, among others. Welds made by this method have good operating and mechanical values.

• TIG - works well for joining metals and their alloys, such as copper, aluminum, magnesium, nickel, titanium, steel and many others. It will work especially well when machining very thin materials (from 0.5 mm thick). This method can be used in any position - horizontal, vertical, flat and above the head, and results in a clean and precise weld that does not succumb to corrosion.

• FCAW (flux cored arc welding) - methods that do not require the use of shielding gas. As a result, it will work well when working outdoors in windy areas. This mode is characterized by a large depth of fusion.

• - Hot Start involves a momentary increase in welding current during arc ignition,
• - Spatter makes the device automatically set the inductance, which allows stable welding.

• - S-MIGMA 250.IGBT welder.
• - MIG holder
• - TIG holder
• - MMA cable
• - Ground wire with ground clamp
• - Wire 0.8 mm - spool 5 kg
• - Polarity change cable
• - Long cap
• - Bushings 2; 2.4 and 3.4 mm
• - Collet in the housing
• - Ceramic nozzle - 3 pieces
• - MIG electrodes - 2 pieces
• - Flange
• - Instruction manual EN
